Combiner Box Manufacturer

Publish Time: Author: Site Editor Visit: 1498

Since its inception, Suntree has started the prelude of building its own brand. After 10 years of experience, Suntree has won as many as 40 patents, including 10 invention patents. During this period, Suntree not only acquired Shenzhen Litto New Energy Co.,Ltd, entered into Grid inverter market, but also was rated as state-level high-tech enterprises and technology research and development centers, and has become the State Grid designated suppliers.

In view of this, Suntree not only focus on the control of technical team and product quality, but also focus on the sales team. Both teams have 16 years of practical experience, which is enough to bring customers the best purchasing experience and safe electrical products.

COMBINER BOX

Combiner Box Manufacturer

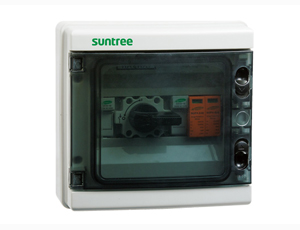

1、DC combiner box SHLX-PV1/1

ADVANTAGES

• High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch
• Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation,the simplified system wiring, the convenient wiring
The box body is made of cold rolled steel and other metal materials
• Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified

DESCRIPTION
SHLX-PV1/1 DC combiner box is suitable for inverter (MAX input voltage DC550V/DC1000V, 1 PV input channel, 1 output channel, single MPPT inverter). Box body is made of PVC engineering materials, with test for fire retardant, temperature rise, anti impact, anti ultraviolet,and other testing. IP65 protection grade.
Design and configuration,strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014. Provide users with a safe, brief, beautiful and applicable photovoltaic system products.

2、AC PV combiner box SHLX-AC8/1

ADVANTAGES

• High reliability
With AC Surge Protection Device
With DC circuit breaker, rated voltage AC690V
• Strong adaptability
IP65 design, waterproof, anti dust and anti ultraviolet
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient Wiring
The box body is made of cold rolled steel and other metal materials
• Flexible configuration
Used for AC output of 1-50kw inverter. Current rating of the photovoltaic fuse, circuit breaker is modified

DESCRIPTION
SHLX-AC8/1 AC PV combiner box is applicable to the PV group on power system. It is an important parto undertake series inverter and AC power distribution cabinet or a step-up transformer and access up to four sets of photovoltaic group on inverter. Into line with the input of circuit breaker and output line with circuit breaker or the load isolating switch. Bus bar with two levels of lightning protection.Highest rated system voltage is AC690V. IP65 Protection class same as inverter. Installed outdoor. With waterproof, dustproof, anti UV, anti salt spray corrosion etc. function
The combiner box greatly simplifies the connection between series inverter and AC power distribution cabinet or boost transformer. Simple and clear linternal structure make reasonable wiring.
High reliability and simple maintenance. Outdoor wall mounted can adapt to the harsh environment. In addition to the material and size, it can be customized according to user requirements.



SUNTREE has workd closely with solar system manufacturers and through coordinated neserch and development,has produced revolutionary new dc circurit breaker,dc isolator swithc,dc fuse which,combined with its range of surge protective devices,offer complete protection for PV systems
