• Dual power automatic transfer switch is suitable for emergency power supply systems with 50 or 60Hz, rated 400V AC.

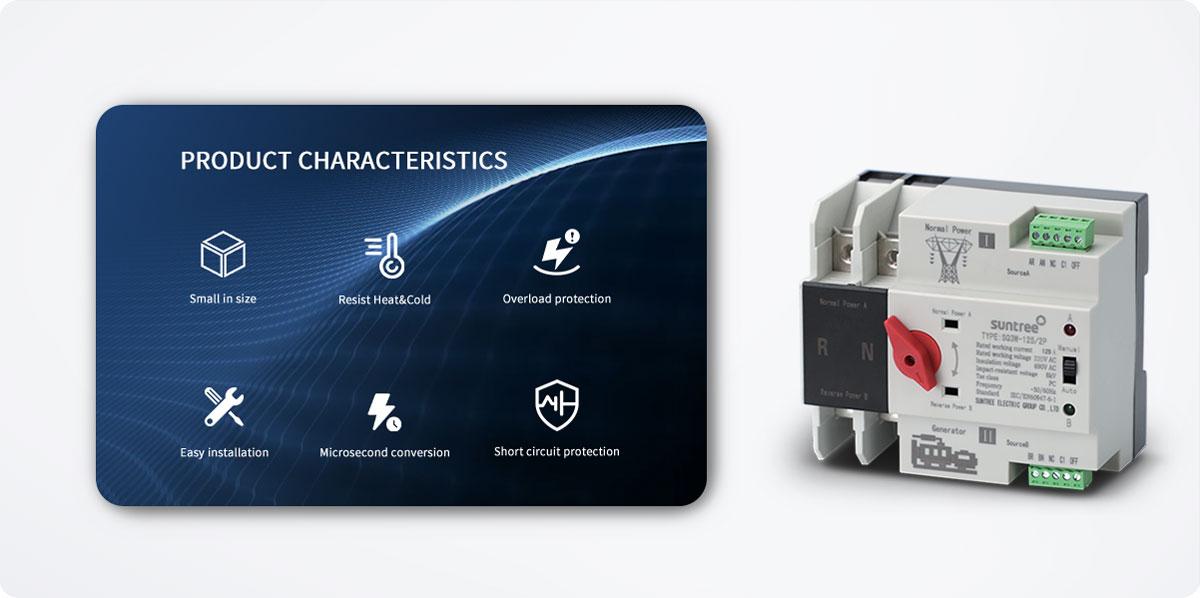

• ATS has the characteristics of solid construction, reliable conversion, guide rail installation and long service life.
• It is widely used in various situations where continuous power outage is unavailable It can work reliably with electricity and can be operated manually, ATS is composed of TSE and controller.
|

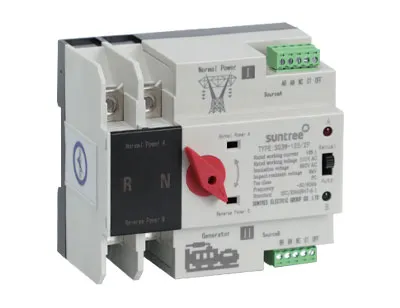

SQ3W |
|
|||
|
Specification |
100A |
|||
|
Rated current le(A) |
16,20,25 |
32,40,50,63 |
80,100 |
|
|
Insulation voltage Ui |
AC690V,50Hz |
|||
|
Rated voltage Ue |
AC400V,50Hz |
|||
|
Level |
PC level: Can be fabricated and wthstand without short-circuit current |
|||
|
Use category |
AC-33iB |
AC-33B |
||
|
Rod |
2P |
3P |
4P |
|
|
Weight(kg) |
1.7 |
1.7 |
2.6 |
|
|
Appliance |
Service life 2000 times, manual operation: 5000 times |
|||
|
Rated short circuit current lg |
50kA |
|||
|
Short circuit protection device (fuse) |
RT16-00-63A |
|||
|
Rated impulse-withstand voltage |
8kV |
|||
|
Control circuit |
Rated control voltage Us:AC220v/50Hz Normal Operating condition 85-110%Us |
|||
|

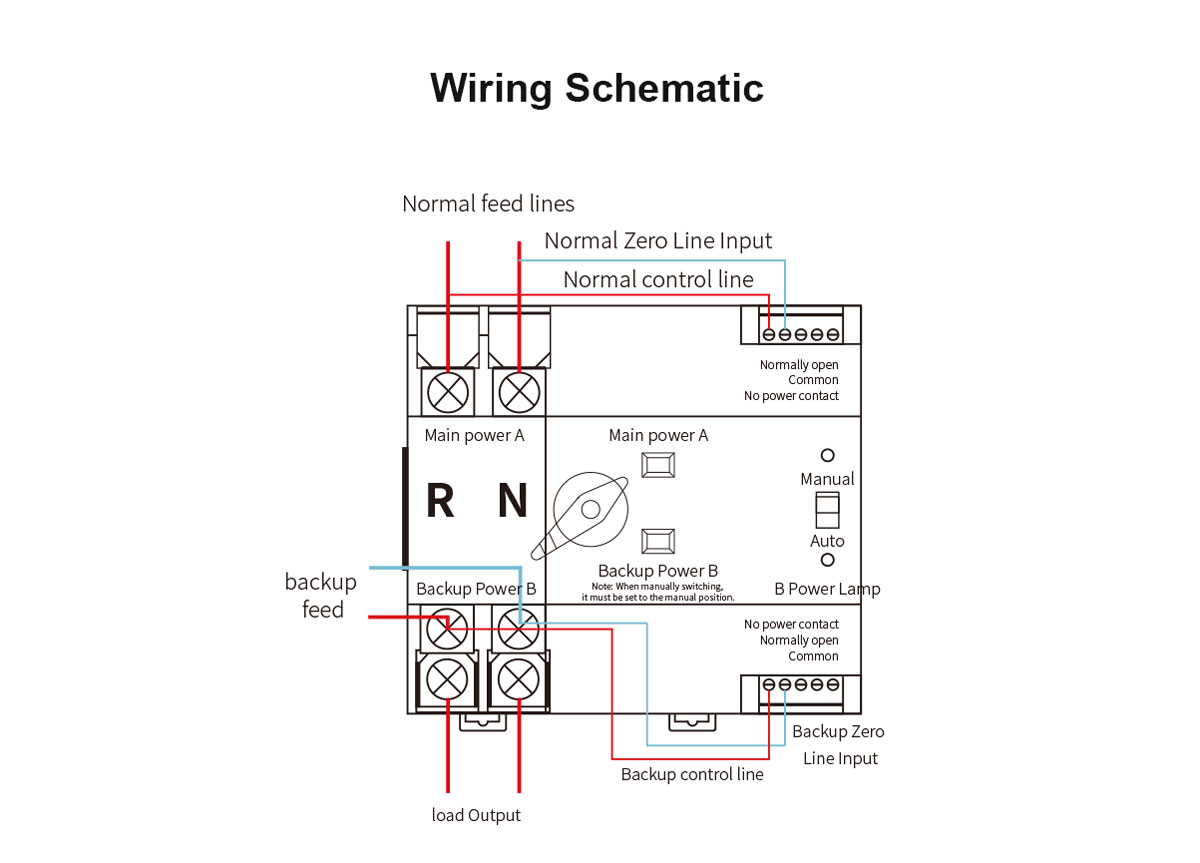

auxiliary circuit |
2 relays, each with two sets of contact converter contact capacity: AC220v/50Hz 1e=5y |
|||
|
Contactor switching time |
<50ms |
|||
|
Operation transition time |
<50ms |
|||
|
Operation transition time |
<50ms |
|||
|
Power off time |
<50ms |
|||
