AC RCCBO AC230V/400V

AC RCCBO AC230V/400V

• Short circuit protection, overload protection

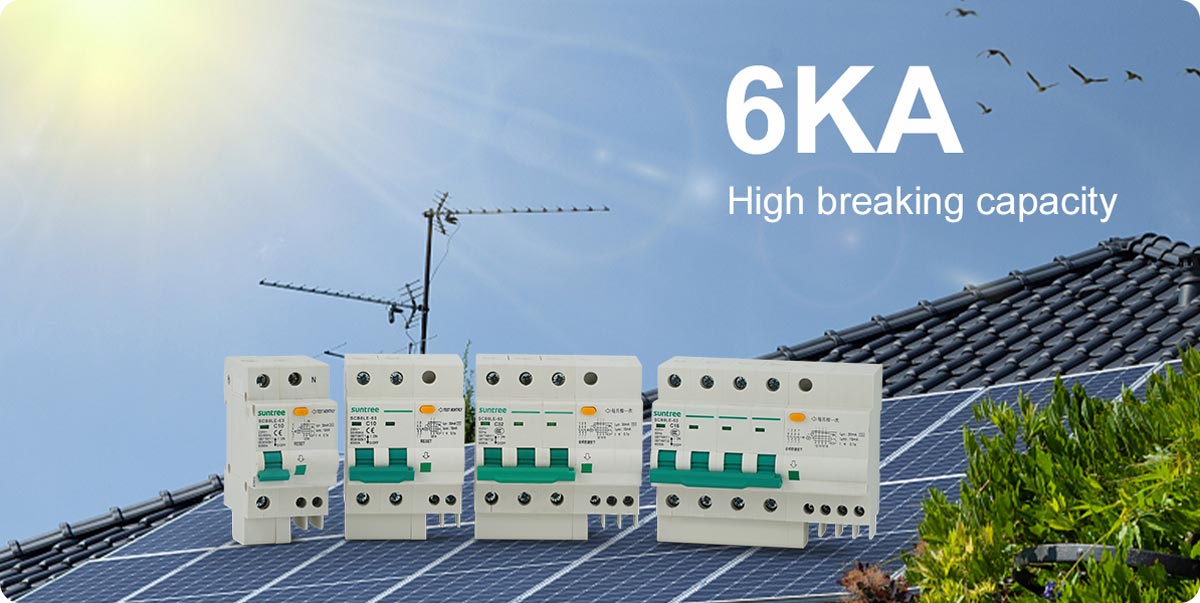

• High breaking capacity, up to 6kA

• Rated power 50/60HZ.

• Rated voltage single-phase 230V, three-phase 415V

• PC flame retardant shell V0 fire rating

• Comply with IEC60898 and IEC61009.1 standards



ELECTRICAL TECHNICAL REFERENCE

SCB8LE-63
Pole 1P/2P/3P/4P
Rated Current 6, 10, 16, 20, 25, 32, 40, 50, 63A
Rated Voltage 230V/400V AC
Rated Residual operating current 30mA 50mA 100mA 300mA
Breaking capacity 4.5ka/6ka
Rated Current off-time ≤0.1s
Electrical Life 4000Times
Mechanical Life 20000Times
Certificates IEC,TUV,CE,GB
Standard GB/T16917.1;EC61009.1
Installation On symmerial DIN rail 35mm/Pane1 mounting
