Where Should a Battery Breaker Be Installed in a BESS DC Circuit?

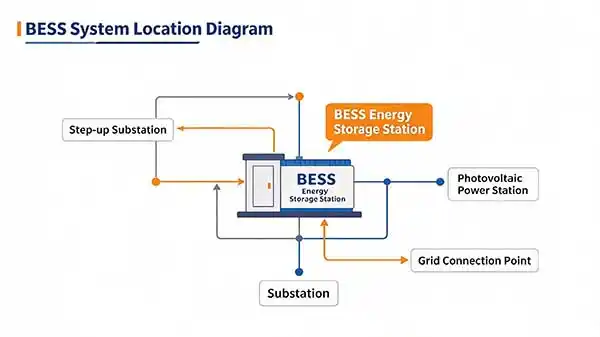

The question that comes up most often in BESS cabinet design meetings is not “what amp rating should the battery breaker be?” It is “where exactly does this thing go?” That placement decision determines whether a fault on the battery-side cable is cleared before it becomes a fire, whether a technician can isolate the DC bus without opening an energized cabinet door, and whether the breaker itself survives the thermal environment it is installed in.

This article walks through the practical placement logic for battery breakers in BESS DC circuits—from the protection boundary around the battery, to the distance question, to cabinet layout, control integration, and what needs to appear on the electrical drawing.

Start with the Protection Boundary Around the Battery

The battery breaker is not simply a device that “protects the battery.” It defines a boundary. Everything on the battery side of that boundary is protected by the breaker. Everything on the other side falls under a different protection scheme, typically the PCS DC input protection or the DC bus protection. That boundary has two segments that matter for placement.

The Battery-Side DC Cable

The cable between the battery terminals and the first overcurrent device is the single most vulnerable conductor in the DC circuit. If a short develops in that segment—through insulation damage, rodent intrusion, or a loose lug—the battery will discharge into the fault with nothing to interrupt it. The BMS cannot help here. A BMS monitors cell-level conditions and controls the contactor inside the pack or rack, but it does not protect the external cable run.

This is why codes are explicit about proximity. NEC 706.21(D) requires a listed current-limiting overcurrent protective device to be installed “adjacent to the ESS for each dc output circuit,” meaning the device must be close enough to the battery source that the unprotected cable length is minimized. Some installation guides translate this into practical terms: if the battery terminals are more than roughly 1.5 meters from the next device, a disconnect with overcurrent protection must be provided at the battery itself.

The battery breaker, or a fused disconnect performing the same function, should sit at the battery output before the cable leaves the battery rack or cabinet. That is the protection boundary.

The Main DC Distribution Path

Once the battery-side cable reaches the main DC distribution point—whether that is a DC combiner, a busbar, or the PCS DC input terminals—the protection scheme changes. At this point, the breaker’s role shifts from protecting the battery cable to providing a controllable isolation point between the battery system and the power conversion equipment.

In a multi-rack BESS, the architecture often looks like this: each battery rack has its own output protection, and the combined DC bus then feeds the PCS through a main battery breaker or disconnect. The rack-level devices protect individual string cables. The main device provides system-level isolation. Placing the main breaker at the DC distribution point, rather than at the PCS end of a long cable run, keeps the protection boundary tight and the cable length between the battery system and the first device short.

Why Distance from the Battery Source Matters

The distance between the battery terminals and the breaker is not a cosmetic detail. It directly determines the length of cable that operates with no overcurrent protection.

In a fault scenario, the battery will feed the fault until something interrupts the circuit. If the breaker is 10 meters away from the battery terminals, those 10 meters of cable carry the full fault current. In a 1500 V DC system with a low-impedance battery source, that fault current can be enormous, and the cable can reach ignition temperature in seconds. The breaker, even if it trips correctly, cannot protect cable that is upstream of it.

This is also a maintenance safety issue. When a technician needs to work on the DC bus or the PCS DC input, the isolation point should be as close to the energy source as practical. If the breaker is remote from the battery, the technician must still treat the battery-side cable as energized after opening the breaker. An external breaker handle or a visible isolation point near the battery cabinet reduces that risk by making the disconnection boundary unambiguous.

The engineering takeaway is simple: the closer the breaker is to the battery terminals, the shorter the unprotected segment, and the smaller the hazardous energy zone during maintenance.

Inside or Outside the Battery Cabinet?

This is where placement decisions get practical. The breaker can be mounted inside the battery cabinet, in a dedicated breaker box adjacent to the cabinet, or on the exterior of the cabinet with an external operating handle. Each option has trade-offs.

Service Accessibility

A breaker inside a sealed battery cabinet is difficult to operate and inspect. If the cabinet door must be opened to reach the breaker, the technician is exposed to the battery terminals and busbars the moment the door swings open. External breaker handles solve this: the technician can open or close the main battery breaker without opening the cabinet door, reducing exposure to energized components during routine operations and emergency isolation.

For BESS integrators, this is increasingly becoming a default expectation. A breaker that cannot be operated safely from outside the enclosure creates a maintenance bottleneck and a safety liability.

Cabinet Temperature

Battery cabinets are thermally managed spaces. They are often cooled to keep cells within their optimal operating range, and the thermal load inside the cabinet is carefully budgeted. A DC breaker carrying continuous current generates heat—through the contacts, the internal conductors, and the terminals. Placing a large breaker inside a temperature-controlled battery cabinet adds an unnecessary thermal load to that space and can interfere with the cabinet’s thermal management strategy.

Mounting the breaker in a separate enclosure or on the exterior of the cabinet removes that heat source from the battery environment.

Environmental Protection

If the breaker is mounted outside the cabinet, the enclosure rating becomes critical. Outdoor BESS installations expose the breaker to rain, dust, UV, and temperature extremes. A breaker box with IP65 or IP66 rating is required for outdoor use. For indoor installations in clean environments, a standard enclosure may suffice, but condensation and humidity still need to be considered.

The key point is that “outside the cabinet” does not mean “unprotected.” It means the breaker enclosure must be rated for the environment it will actually see, which is often different from the environment inside the battery cabinet.

How the Breaker Fits into the BESS Control Strategy

A battery breaker is not an isolated device. Its position in the DC circuit determines how it interacts with the BMS, the PCS, and the site control system.

BMS Status and System Shutdown

Modern battery breakers for BESS applications are typically equipped with auxiliary contacts that report open/closed status and shunt trip coils that allow remote tripping. The placement of the breaker relative to the BMS determines how these signals are used.

If the breaker is at the battery output, its auxiliary contact can serve as a definitive “battery disconnected” signal to the BMS and PCS. The BMS knows that when this contact opens, the battery is truly isolated from the DC bus—not just that the internal contactor has opened. That distinction matters for fault diagnosis and for safe restart sequencing.

Auxiliary and Remote Control Interfaces

Remote trip capability changes the placement calculus. A breaker with a shunt trip coil can be tripped by the BMS, the PCS, or a site-level emergency stop signal. If the breaker is mounted in a location that is difficult to access, the remote trip function becomes the primary means of operation, and the manual handle becomes the backup.

This is why breaker selection and placement go together. A breaker with an MX+OF module (shunt trip plus auxiliary contact) can be mounted in a less accessible location and still be fully controllable through the BMS or SCADA system. A breaker without remote trip capability should be mounted where a human can reach it quickly.

Emergency Service Access

The final control consideration is emergency access. If the BESS needs to be de-energized in an emergency, the battery breaker is usually the fastest way to isolate the DC source. Its location should be known, marked, and reachable without navigating through the battery cabinet interior. This is not just a convenience issue—it is a firefighter safety issue and a first-responder requirement in many jurisdictions.

What Should Be Shown on the BESS Electrical Drawing

The placement decision is not complete until it is documented. The electrical drawing—typically a DC single-line diagram or a protection component layout—must communicate the breaker’s identity, location, and relationship to the rest of the system.

Equipment designation. The breaker should have a unique device tag (for example, QF-BAT-01) that matches the physical label on the device. This tag should appear on the drawing, on the cabinet, and in the BMS or SCADA configuration.

Installation location. The drawing should indicate whether the breaker is inside the battery cabinet, in an adjacent breaker box, or mounted externally. For multi-rack systems, the drawing should show which rack or string the breaker protects.

Circuit relationship. The breaker’s position relative to the battery terminals, the DC bus, and the PCS DC input should be clear from the one-line diagram. The protection boundary—the point where the breaker’s zone ends and the next device’s zone begins—should be visually unambiguous.

Service isolation point. The drawing should indicate where a technician can verify zero energy before working on the DC circuit. If the battery breaker is the primary isolation point, it should be labeled as such. If an external handle is provided, the drawing should note the handle location and the lockout/tagout provisions.

The electrical protection component layout provides “essential context for events and faults” in the BESS and should not be treated as a secondary document. A breaker that exists in the cabinet but not on the drawing is a breaker that will be misoperated during maintenance.

Frequently Asked Questions

Should a battery breaker be close to the battery bank?

Yes. The breaker’s primary job in that position is to minimize the unprotected cable segment between the battery terminals and the first overcurrent device. NEC 706.21 and most installation guides require the device to be “adjacent to” or “near” the battery or battery busbar. A long cable run between the battery and the breaker defeats the protection boundary concept.

Can a battery breaker be installed outside the battery cabinet?

Yes, and in many designs it should be. An external breaker box or an externally mounted breaker with an operating handle improves service accessibility, removes a heat source from the battery thermal environment, and allows isolation without opening the cabinet door. The enclosure must be rated for the actual installation environment—IP65 or higher for outdoor use.

Does a battery breaker also serve as a maintenance disconnect?

It can, but only if its placement supports that function. A breaker inside a sealed cabinet is not a practical maintenance disconnect because reaching it requires opening the cabinet and exposing the technician to energized parts. A breaker with an external handle or a breaker mounted in an accessible location can serve as the maintenance isolation point. The drawing should explicitly identify it as such.

Summary for BESS Designers

Three judgment points drive battery breaker placement.

Protection boundary. The breaker must sit close enough to the battery terminals that the unprotected cable segment is as short as practical. This is the non-negotiable electrical requirement.

Service accessibility. The breaker must be operable without exposing the technician to hazardous DC voltage. External handles and remote trip interfaces are not luxury features—they are placement enablers that allow the breaker to be both close to the battery and safe to operate.

Cabinet environment. The breaker should not compromise the thermal management of the battery cabinet or be exposed to environmental conditions beyond its enclosure rating. A separate breaker enclosure or an externally rated mounting location solves both problems simultaneously.

The battery breaker’s location is not a detail to be resolved at the end of the design. It is a decision that shapes the protection architecture, the maintenance procedure, and the control strategy. Get the placement right, and the rest of the DC circuit design follows more cleanly. If you would like more detailed information, please feel free to contact us!
