Solar Connector T-Type 3-1

• IP67 Waterproof

• Simple on-site processing

• PPO high strength material

• High quality waterproof ring

• High current carrying capacity

• Ambient temperature -45℃+85℃

• Insulation material to prevent electric shoock

• Mating safety provided bykeyed housings

ELECTRICAL TECHNICAL REFERENCE

Insulation Material

PPO

Contact Material

Copper, Tin plated

Suitable Current

50A

Rated Voltage

1000V (TUV) 600V (UL)

Test Voltage

6KV (TUV50HZ, 1min)

Contact Resistance

<0.5mΩ

Degree Of Protection

IP67

Ambient Temperature Range

-40℃ ~+85℃

Plame class

UL 94-VO

Safety class

Ⅱ

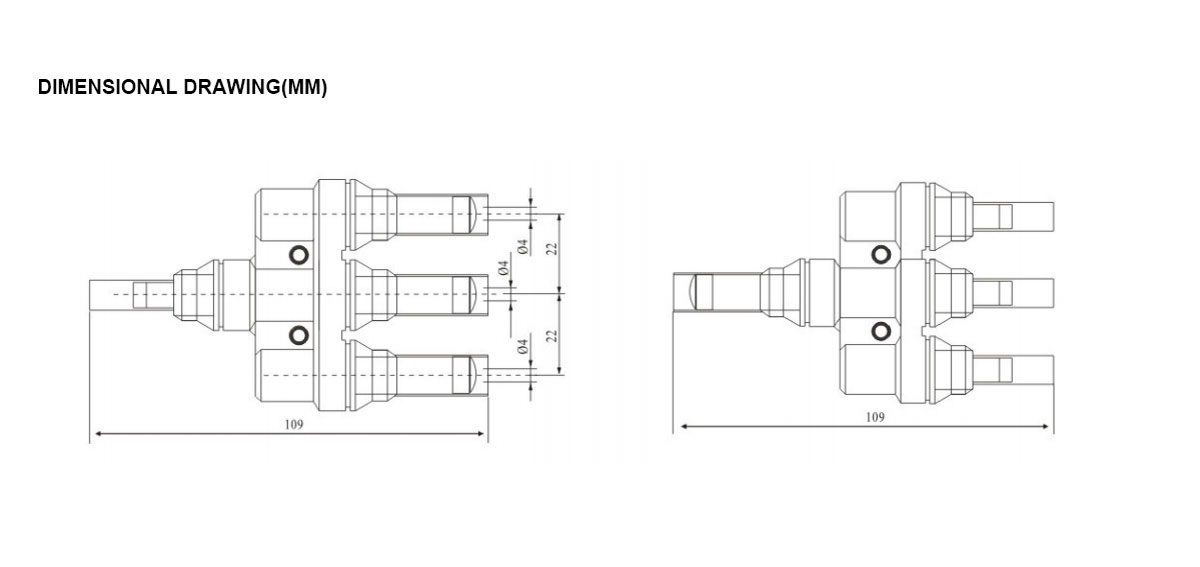

Pin Dimensions

Φ4mm
