Solar Connector T-Type 2-1

Solar Connector T-Type 2-1

• IP67 Waterproof

• Simple on-site processing

• PPO high strength material

• High quality waterproof ring

• High current carrying capacity

• Ambient temperature -45℃+85℃

• Insulation material to prevent electric shoock

• Mating safety provided bykeyed housings





ELECTRICAL TECHNICAL REFERENCE

Insulation Material PPO
Contact Material Copper, Tin plated
Suitable Current 50A
Rated Voltage 1000V (TUV) 600V (UL)
Test Voltage 6KV (TUV50HZ, 1min)
Contact Resistance <0.5mΩ
Degree Of Protection IP67
Ambient Temperature Range -40℃ ~+85℃
Plame class UL 94-VO
Safety class Ⅱ

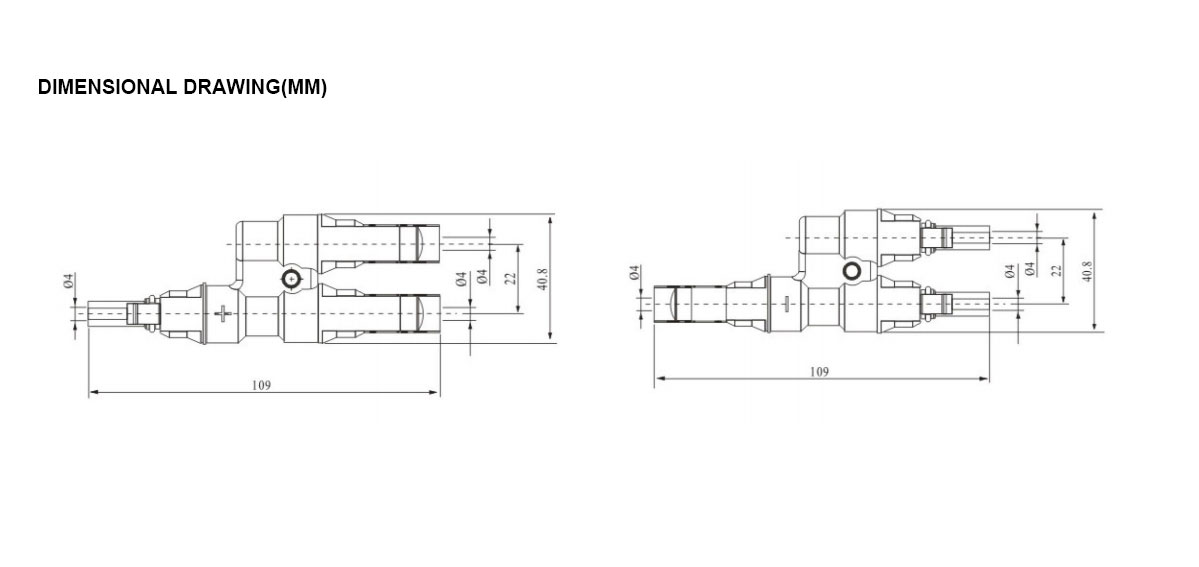

Pin Dimensions Φ4mm
