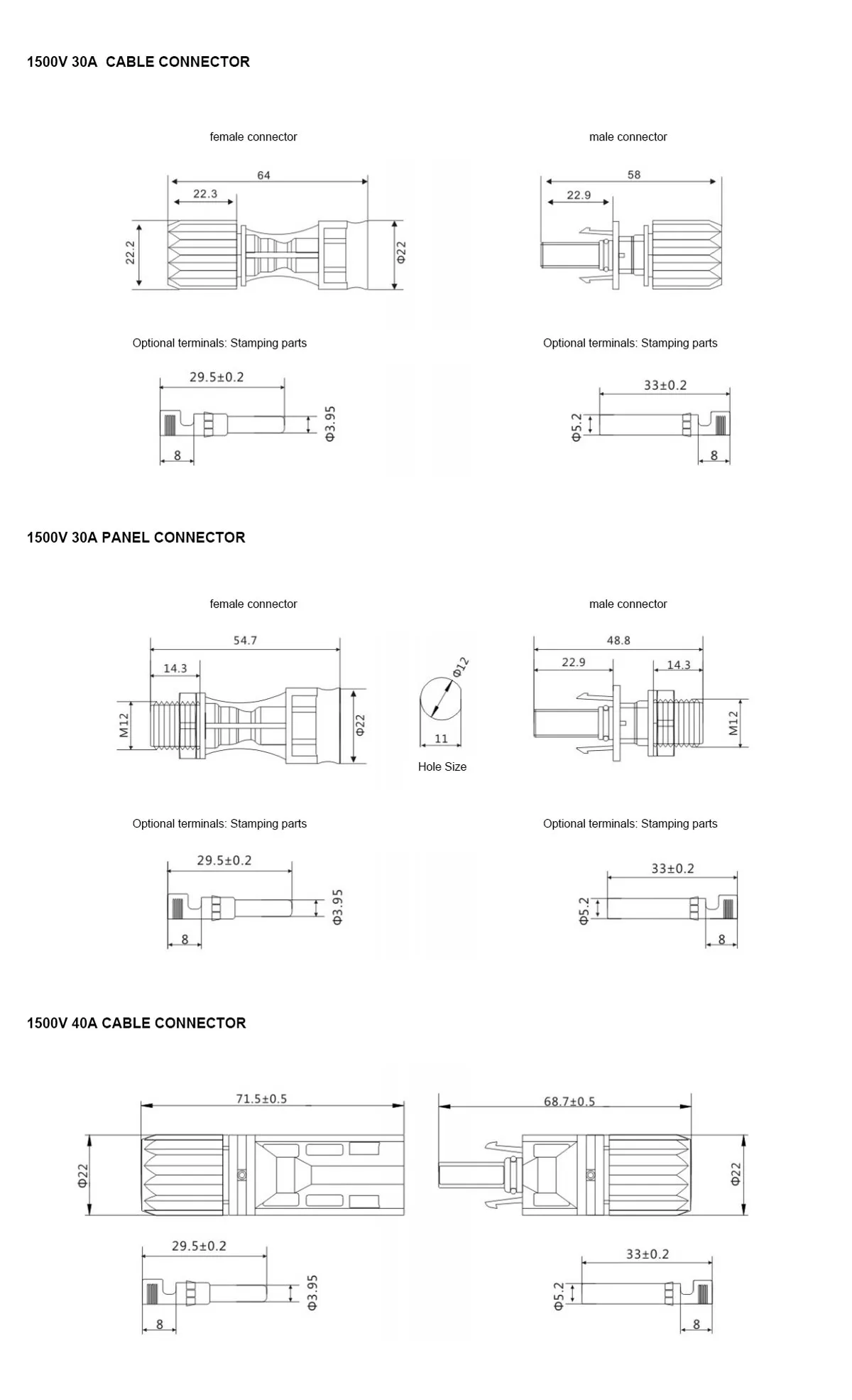

Solar Connector DC1500V

Solar Connector DC1500V

• IP67 Waterproof

• Simple on-site processing

• PPO high strength material

• High quality waterproof ring

• High current carrying capacity

• Insulation material to prevent electric shoock

• Mating safety provided bykeyed housings





ELECTRICAL TECHNICAL REFERENCE

Rated current 30A 30A 40A
Rated voltage 1500V DC
Test voltage 6000V(50Hz,1min)
Overoltage categor/Pollution degree CATⅢ/2
Contact resistance of plug connectors ≤5mΩ ≤5mΩ ≤5mΩ
Contact material Copper,Ag plated
Insulation material PPO PPO PPO
Degree of protection IP2*/IP67
Plame class UL94-VO
Safety class Ⅱ
Suitable cable 2.5mm²~6mm² / 14AWG~10AWG 2.5mm²~6mm² / 14AWG~10AWG 2.5mm²~10mm² / 14AWG~8AWG
Insertion force ≤50N
Withdrawal force ≤50N
Temperature range -40℃~+85℃ -40℃~+85℃ -40℃~+85℃
