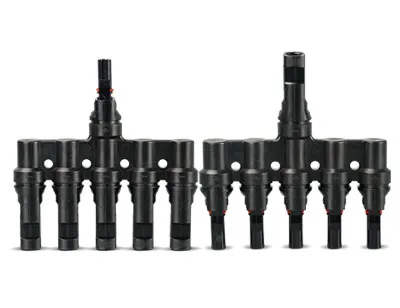

Solar Connector T-Type 5-1

• IP67 Waterproof

• Simple on-site processing

• PPO high strength material

• High quality waterproof ring

• High current carrying capacity

• Ambient temperature -45℃+85℃

• Insulation material to prevent electric shoock

• Mating safety provided bykeyed housings

ELECTRICAL TECHNICAL REFERENCE

Insulation Material

PPO

Contact Material

Copper, Tin plated

Suitable Current

30A

Rated Voltage

1000V (TUV) 600V (UL)

Test Voltage

6KV (TUV50HZ, 1min)

Contact Resistance

<0.5mΩ

Degree Of Protection

IP67

Ambient Temperature Range

-40℃ ~+85℃

Plame class

UL 94-VO

Safety class

Ⅱ

Pin Dimensions

Φ4mm

How to Prevent DC Arc Fault in Panel Level Rapid Shutdown Switches

As the global photovoltaic industry continues to expand rapidly—with 495GW of new capacity added in 2024 alone—safety risks have emerged as a critical concern for system designers and installers. Amon

18 May 2026

How to Use a DC Isolator Switch for Safe Solar Inverter Maintenance

For solar maintenance professionals, the DC isolator switch is more than a component—it is a lifeline. Every year, arc flash incidents and electrocution injuries occur because technicians either use the wr...

13 May 2026

Solar Connector T-Type 5-1

ELECTRICAL TECHNICAL REFERENCE

Recommended Products

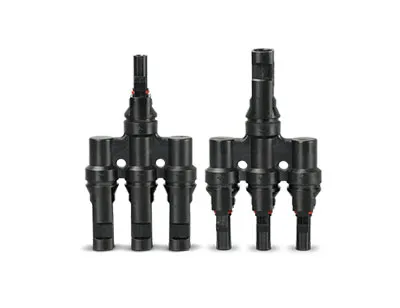

Solar Connector T-Type 3-1

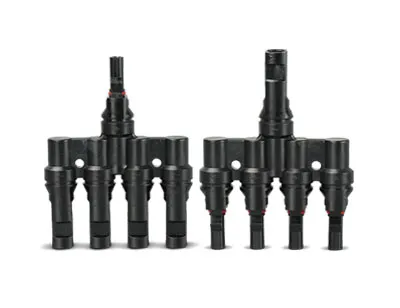

Solar Connector T-Type 4-1

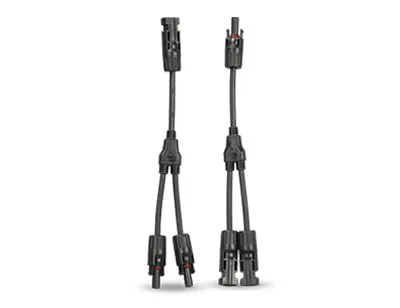

Solar Connector Y-Type 2-1

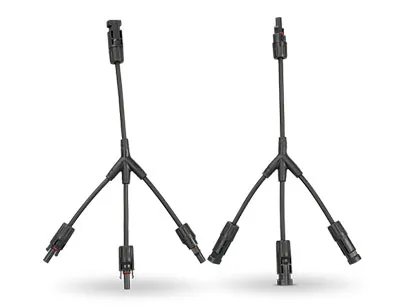

Solar Connector Y-Type 3-1
