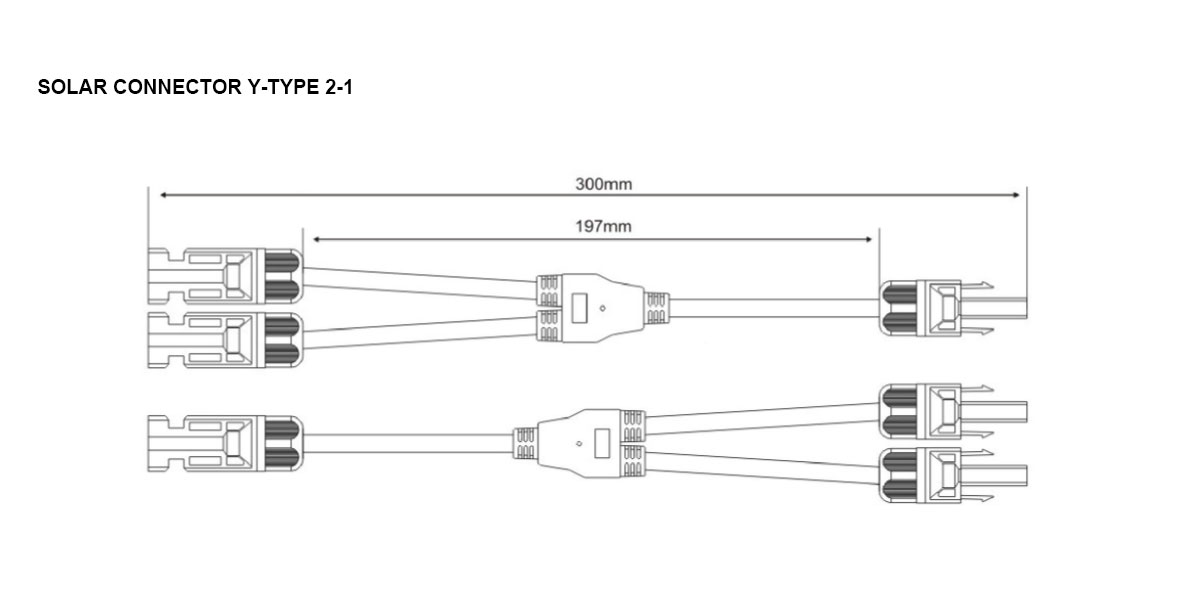

Solar Connector Y-Type 2-1

Solar Connector Y-Type 2-1

• IP65 Waterproof

• Simple on-site processing

• PPO high strength material

• High quality waterproof ring

• High current carrying capacity

• Ambient temperature -45℃+110℃

• Insulation material to prevent electric shoock

• Mating safety provided bykeyed housings





ELECTRICAL TECHNICAL REFERENCE

Rated current 30A
Rated voltage 1000VDC
Test voltage 6000V (50Hz, 1min)
Overvoltage category/Pollution degree CATⅢ/2
Contact resistance of plug connectors ≤0.5mΩ
Contact material Copper, Ag plated
Insulation material PPO
Degree of protection IP2*/IP65
Plame class UL94-VO
Safety class Ⅱ
Suitable cable 2.5mm²~6.0mm²
Insertion Withdrawal force ≤50N
Cable length 8cm
Temperature range -40℃~+110℃
