Single-phase Energy Storage Systems 1-3KW

Single-phase Energy Storage Systems 1-3KW

• Solar Panels.

• DC combiner box 1/1.

• INVERTER

•BATTERY

•Accessories

INSTALLATION STEPS

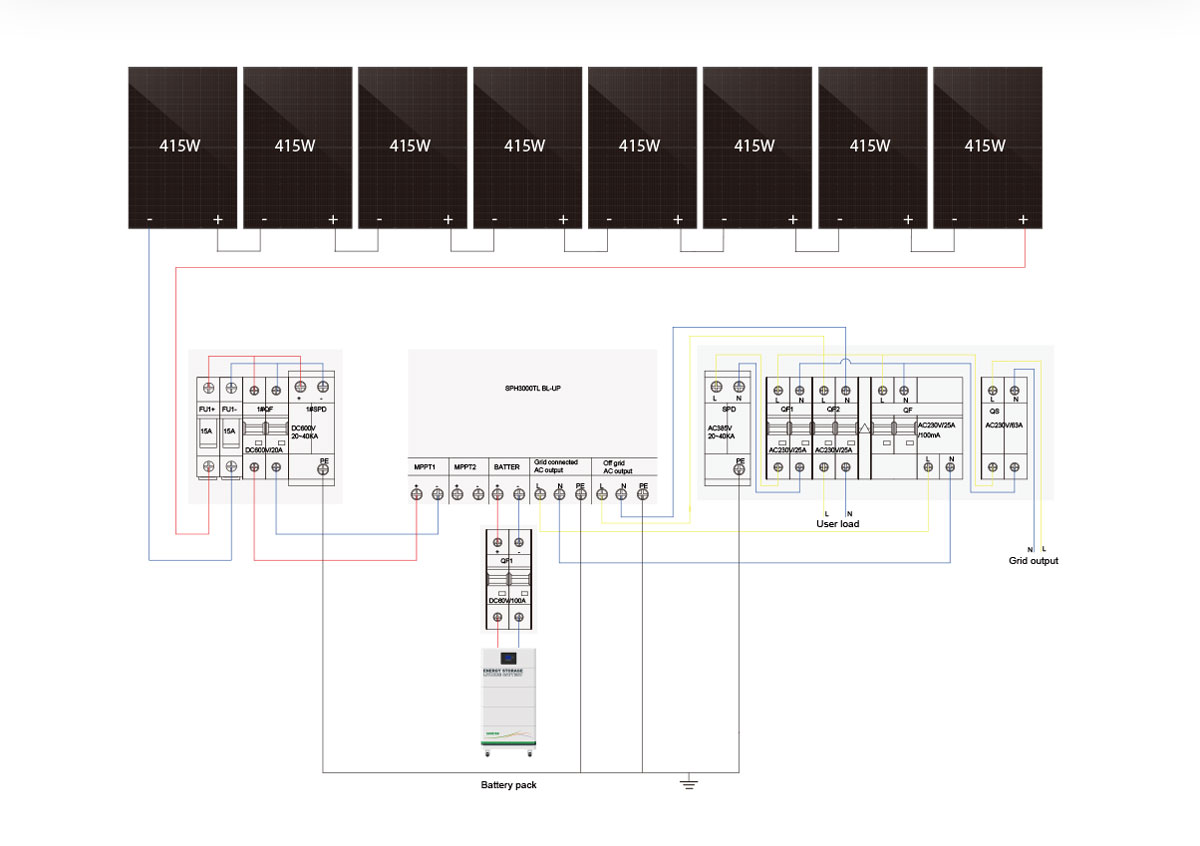

ELECTRICAL TECHNICAL REFERENCE

3KW Single-phase energy storage system
  MODEL QUANTITY UNIIT MPPT / INTERFACE
Component single crystal 415W 8 piece /
DC String box 1 in 1 out / (DC600V) 1 set /
Battery Storage Inverter SPH3000TL BL-UP(3KW) 1 set 2/1+1
AC distribution box / 1 set /
Battery protection box / 1 set /
Connecto MC4 1 set /
DC cable PV1-F4 100 meter /
Battery connection cable BVR- 10 meter /
AC cable YJV22- 100 meter /
Mounting Brackets / 1 set /
Battery pack 48V/3KWH 1 set /
Installation tool / 1 set /



Recommended Products

Grid-Connected System 3-8KW Single-Phase

Grid-Connected System 3-8KW Single-Phase

Grid-Connected System 15-30KW Three-Phase System

Grid-Connected System 15-30KW Three-Phase System

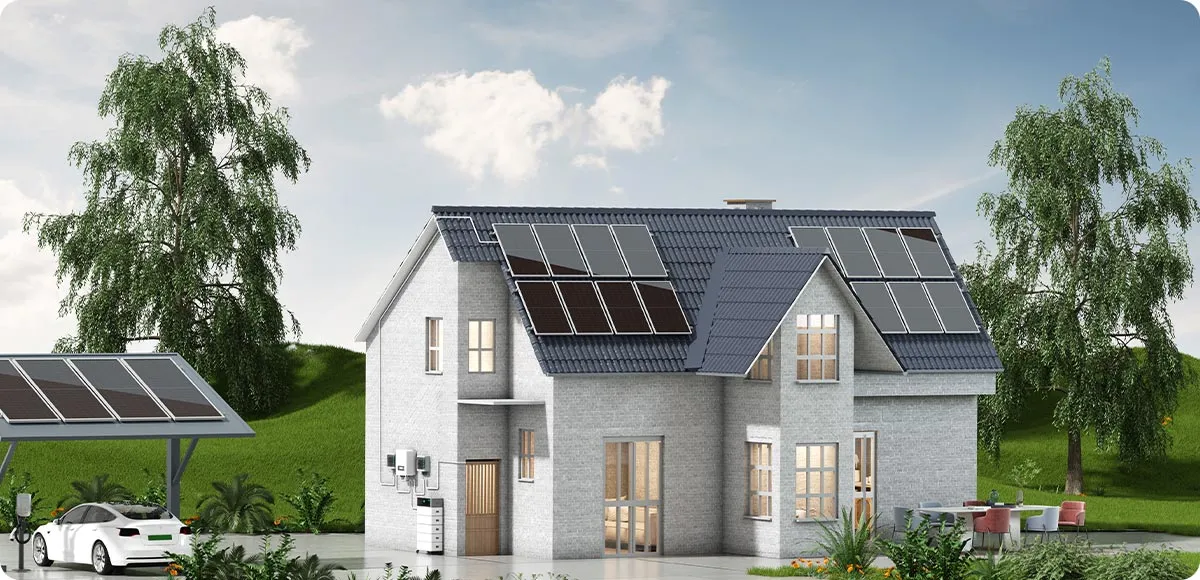

Single-phase Energy Storage Systems 3-8KW

Single-phase Energy Storage Systems 3-8KW

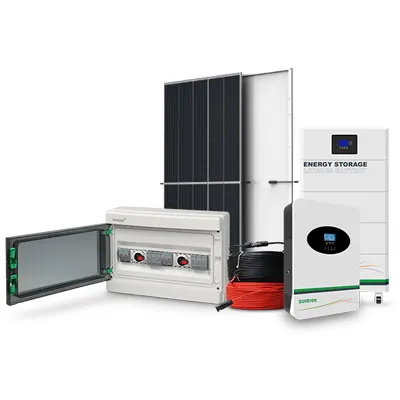

Single-phase Energy Storage Systems 5-10KW
