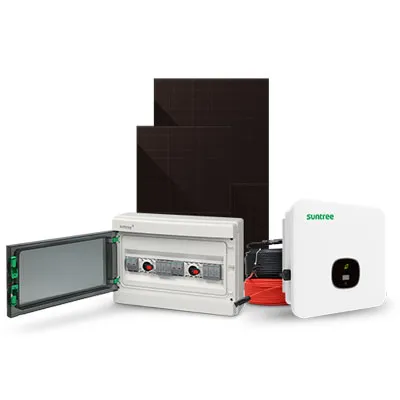

Grid-Connected System 15-30KW Three-Phase System

Grid-Connected System 15-30KW Three-Phase System

• Solar Panel

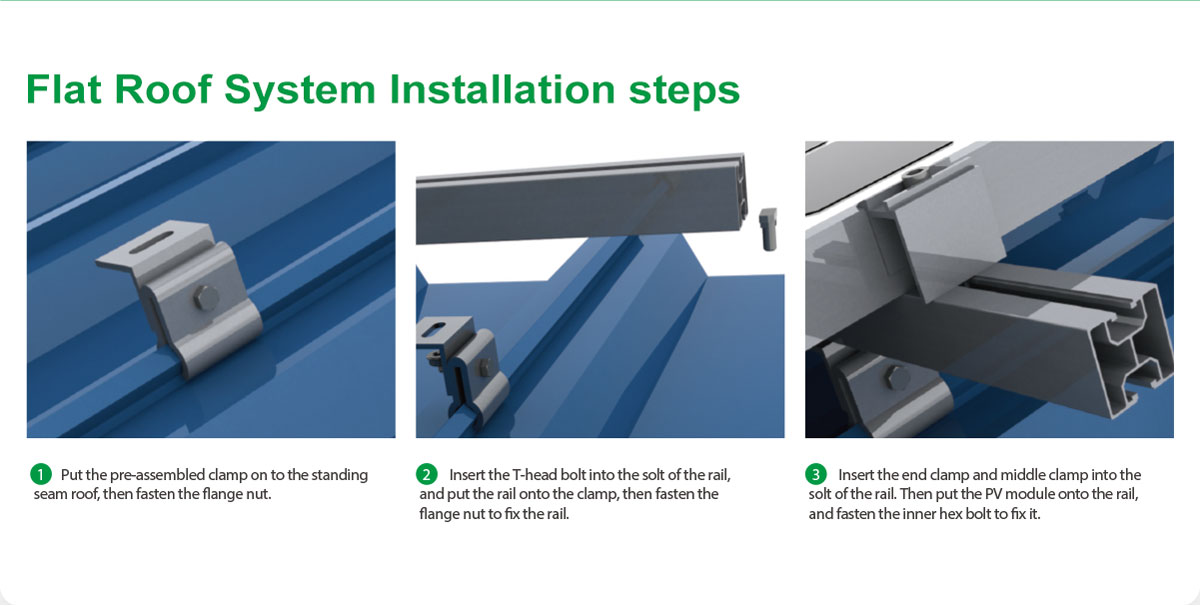

• Roof/Ground Mounting System

• DC/ACCombiner Box

• On Gridlnverter

• DC/AC Cables

• PV Installation Tools



5-10KW on-grid solar power system components list

  MODEL QUANTITY UNIIT MPPT / INTERFACE
Power 15KW 20KW 25KW 30KW 15KW 20KW 25KW 30KW 15KW 20KW 25KW 30KW 15KW 20KW 25KW 30KW
Component Single crystal 415W Single crystal 415W/545W Single crystal 415W 37 49 46/62 73 piece /
DC String box 2 in 2 out
(DC1000V)
3 in 3 out
(DC1000V)
2 in 2 out / 4 in 4 out
(DC1000V)
4 in 4 out
(DC1000V)
1 set /
On grid inverter 15KW 20KW 25KW 30KW 1 set 2/2+1 2/2+2 3/2
2/2+3
3/2
AC distribution box / 1 set /
Connector MC4 2 3 4 6 set /
DC cable PV1-F4 / meter /
AC cable YJV22- / meter /
Mounting Brackets / 1 set /
Installation tool / 1 set /
