Grid-Connected System 3-8KW Single-Phase

Grid-Connected System 3-8KW Single-Phase

• Solar Panel

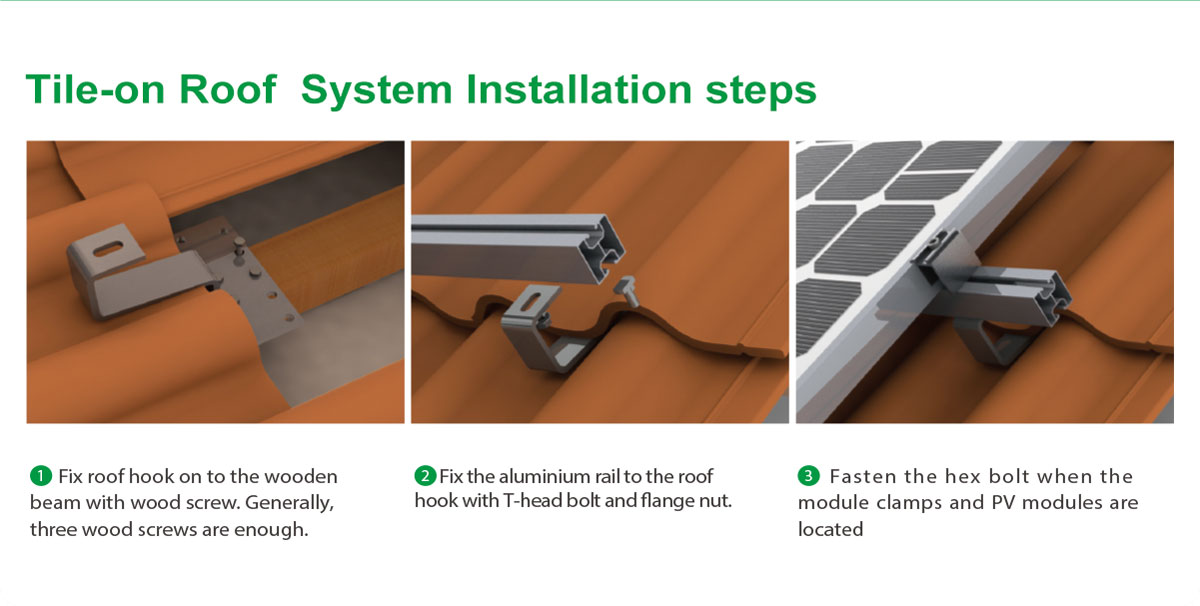

• Roof/Ground Mounting System

• DC/ACCombiner Box

• On Gridlnverter

• DC/AC Cables

• PV Installation Tools



3-8KW on-grid solar power system components list

  MODEL QUANTITY UNIIT MPPT / INTERFACE
Power 3KW 5KW 6KW 8KW 3KW 5KW 6KW 8KW 3KW 5KW 6KW 8KW 3KW 5KW 6KW 8KW
Component Single crystal 415W 8 12 15 20 piece
DC String box 1 in 1 out
(DC600V)		 2 in 2 out
(DC600V)		 1 set
On grid inverter 3KW 5KW 6KW 8KW 1 set 2/1+1
AC distribution box   1 set
Connector MC4 1 2 1 2 set
DC cable PV1-F4 100 meter
AC cable YJV22 100 meter
Mounting Brackets   1 set
Installation tool   1 set
