DC Energy Storage Surge Protectors Type1+2 600V

DC Energy Storage Surge Protectors Type1+2 600V

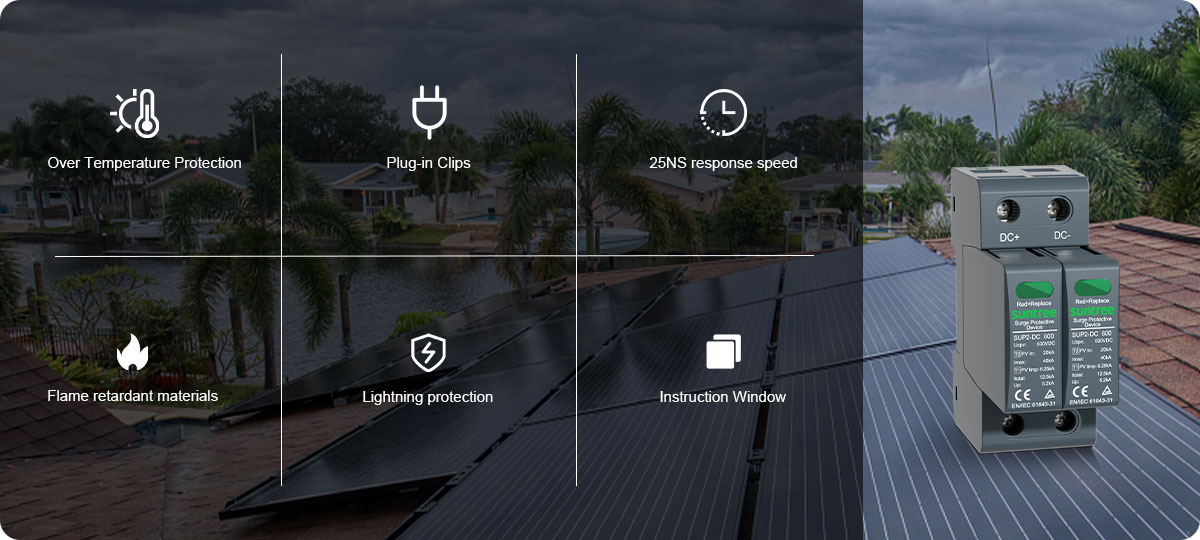

• Quickly dissipate heat and reduce the service temperature

• Plug-in clips, Easy module replacement

• Flash Barrier, Prevent arc propagation in current impact

• Use a suitable electrical insulator to keep a 10mm min.safety distance from the PV-SPD and other grounfed parts in the housing

• The green and red visual indicator flags show the module protective status (green = good, red = replace)

• Features visual indication and optional remote contact signaling (floating changeover contact)

•  Feature a combined disconnection

• Short-circuiting (shunting) device with safe electrical isolation to Prevent fire damage due to DC arcs.

ELECTRICAL TECHNICAL REFERENCE

IEC ELECTRICAL
Maximum Continuous Operating DC Voltage (DC+) - PE, (DC-) - PE,(DC+) - (DC-)  UCPV 600V
Nominal Discharge Current (8/20us) In 40A
Impulse Discharge Current (10/350 us) Iimp 12.5kA
Total Discharge Current (10/350 ys) ITotal 6.25kA
Total Discharge Current (8/20 us) ITotal 20kA
Maximum Discharge Current (8/20 1s) Imax 40kA
Voltage Protection Level (DC+) - PE, (DC-) - PE,(DC+) - (DC-) up ≤2200V

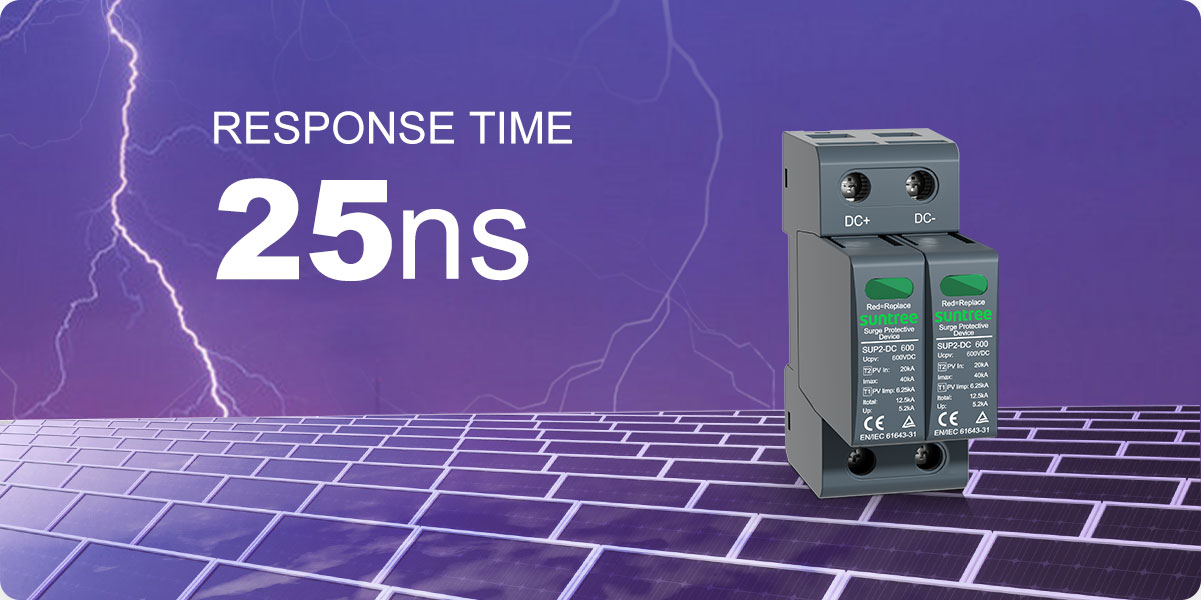

Response Time tA <25 ns
Short-Circuit Current Rating ISCPV 2000A
Number of Ports 1
MECHANICAL & ENVIRONMENTAL
Operating Temperature Range Ta -40 °F to +158 °F [-40 °C to +70 °C]
Permissible Operating Humidity RH RH 5%...95%
Atmospheric pressure and altitude 80k Pa ... 106k Pa /-500 m... 2000 m
Terminal Screw Torque Mmax Imax 39.9 Ibf-in [4.5 Nm]
Conductor Cross Section (max) 2 AWG (Solid, Stranded)/4 AWG (Flexible)
35mm² (Solid, Stranded)/25mm² (Flexible)
Mounting 35 mm DIN Rail, EN 60715
Degree of Protection IP20 (built-in)
Housing Material Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection Yes
Operating State / Fault Indication Green ok / Red defect
Remote Contacts (RC) Option
RC Switching Capacity AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
RC Conductor Cross Section (max) 16 AWG (Solid)/1.5mm²(Solid)
