DC Energy Storage Surge Protectors 2P

DC Energy Storage Surge Protectors 2P

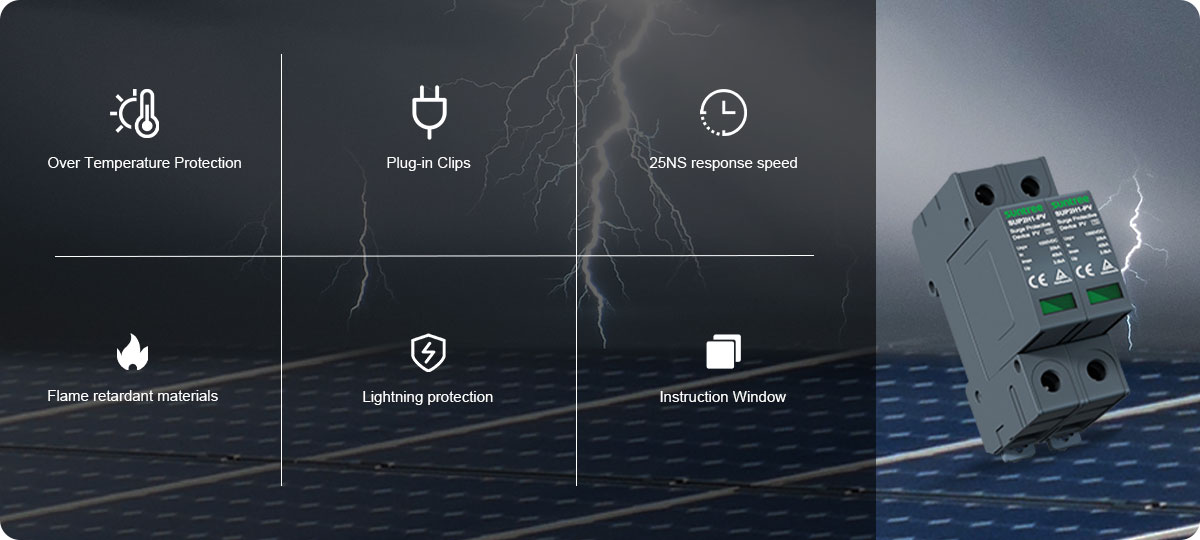

• Quickly dissipate heat and reduce the service temperature

• Plug-in clips, Easy module replacement

• Flash Barrier, Prevent arc propagation in current impact

• Use a suitable electrical insulator to keep a 10mm min.safety distance from the PV-SPD and other grounfed parts in the housing

• The green and red visual indicator flags show the module protective status (green = good, red = replace)

• Features visual indication and optional remote contact signaling (floating changeover contact)

•  Feature a combined disconnection

• Short-circuiting (shunting) device with safe electrical isolation to Prevent fire damage due to DC arcs.

ELECTRICAL TECHNICAL REFERENCE

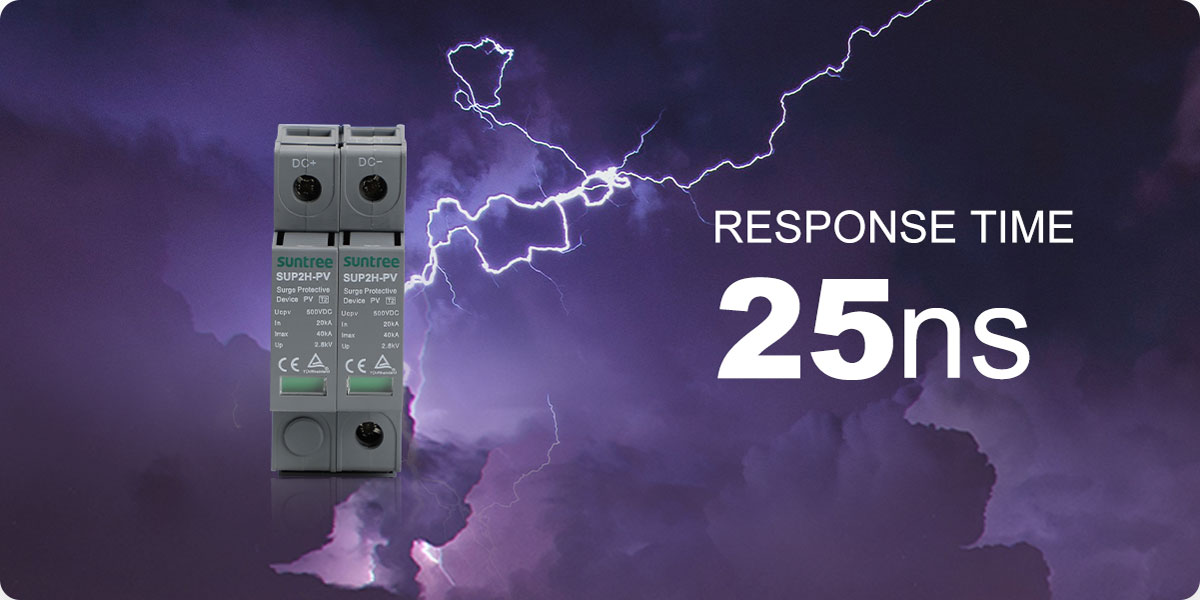

Product Model SUP2H-PV
Max. continuous operating voltage (Uc) 500VDC 600VDC 800VDC
Max. discharge current (Imax)(8/20u s) 20、40KA
Protection level (In)Up 2.8kV 2.8kV 3.0kV
Service temperature -40℃~+70℃
Relative humidity ≤95%(25℃)
Installation mode 35mm standard guide rail
Window indication Normakt green; Failure: Red
Ingress protection IP20
Numbers of poles 2P
Leakage 0.75u ImA(uA) ≤20
