What is a DC Surge Protective Device？
DC Surge Protective Devices (SPD) are essential for safeguarding electronic systems from voltage spikes, ensuring both reliability and efficiency. Their ability to absorb and redirect excess voltage helps ...

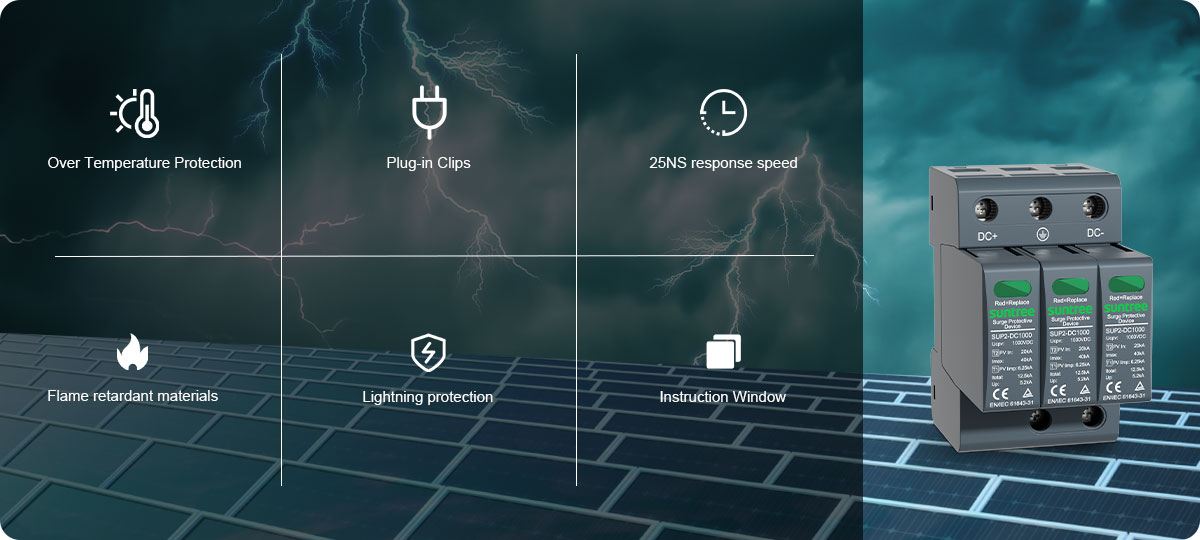

• Quickly dissipate heat and reduce the service temperature
• Plug-in clips, Easy module replacement
• Flash Barrier, Prevent arc propagation in current impact
• Use a suitable electrical insulator to keep a 10mm min.safety distance from the PV-SPD and other grounfed parts in the housing
• The green and red visual indicator flags show the module protective status (green = good, red = replace)
• Features visual indication and optional remote contact signaling (floating changeover contact)
• Feature a combined disconnection
• Short-circuiting (shunting) device with safe electrical isolation to Prevent fire damage due to DC arcs.
| IEC ELECTRICAL | ||||
| Maximum Continuous Operating DC Voltage | (DC+) - PE, (DC-) - PE,(DC+) - (DC-) | UCPV | 1000V | |
| Nominal Discharge Current (8/20us) | In | 40A | ||
| Impulse Discharge Current (10/350 us) | Iimp | 12.5kA | ||
| Total Discharge Current (10/350 ys) | ITotal | 6.25kA | ||
| Total Discharge Current (8/20 us) | ITotal | 20kA | ||
| Maximum Discharge Current (8/20 1s) | Imax | 40kA | ||
| Voltage Protection Level | (DC+) - PE, (DC-) - PE,(DC+) - (DC-) | up | ≤4000V | |

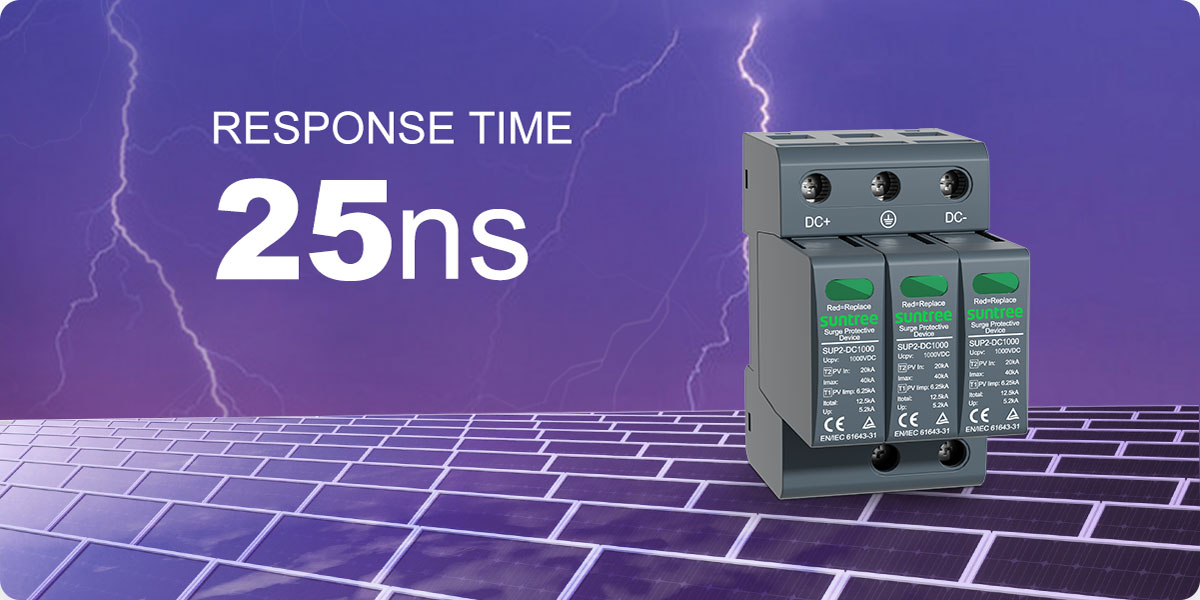

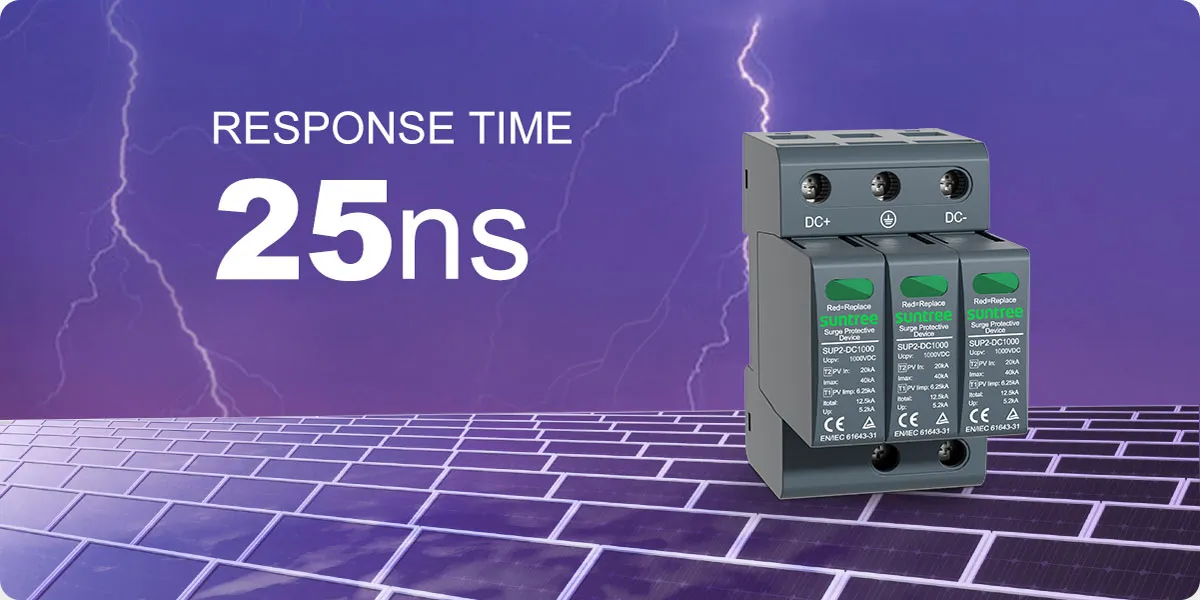

| Response Time | tA | <25 ns | ||
| Short-Circuit Current Rating | ISCPV | 2000A | ||
| Number of Ports | 1 | |||
| MECHANICAL & ENVIRONMENTAL | ||||
| Operating Temperature Range | Ta | -40 °F to +158 °F [-40 °C to +70 °C] | ||
| Permissible Operating Humidity RH | RH | 5%...95% | ||
| Atmospheric pressure and altitude | 80k Pa ... 106k Pa /-500 m... 2000 m | |||
| Terminal Screw Torque Mmax | Imax | 39.9 Ibf-in [4.5 Nm] | ||
| Conductor Cross Section (max) | 2 AWG (Solid, Stranded)/4 AWG (Flexible) 35mm² (Solid, Stranded)/25mm² (Flexible) |
|||
| Mounting | 35 mm DIN Rail, EN 60715 | |||
| Degree of Protection | IP20 (built-in) | |||
| Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | |||
| Thermal Protection | Yes | |||
| Operating State / Fault Indication | Green ok / Red defect | |||
| Remote Contacts (RC) | Option | |||
| RC Switching Capacity | AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A | |||
| RC Conductor Cross Section (max) | 16 AWG (Solid)/1.5mm²(Solid) | |||
