PV Array Level Firefighter Safety Switch 1-2 strings

PV Array Level Firefighter Safety Switch 1-2 strings

• 1~10 strings available app remote control

• up to 40a

• shutdown feedback signal

• up to 1500v  auto shutdown exceeding 70 ℃

• ce certification

• 10000 mechanical life cycles

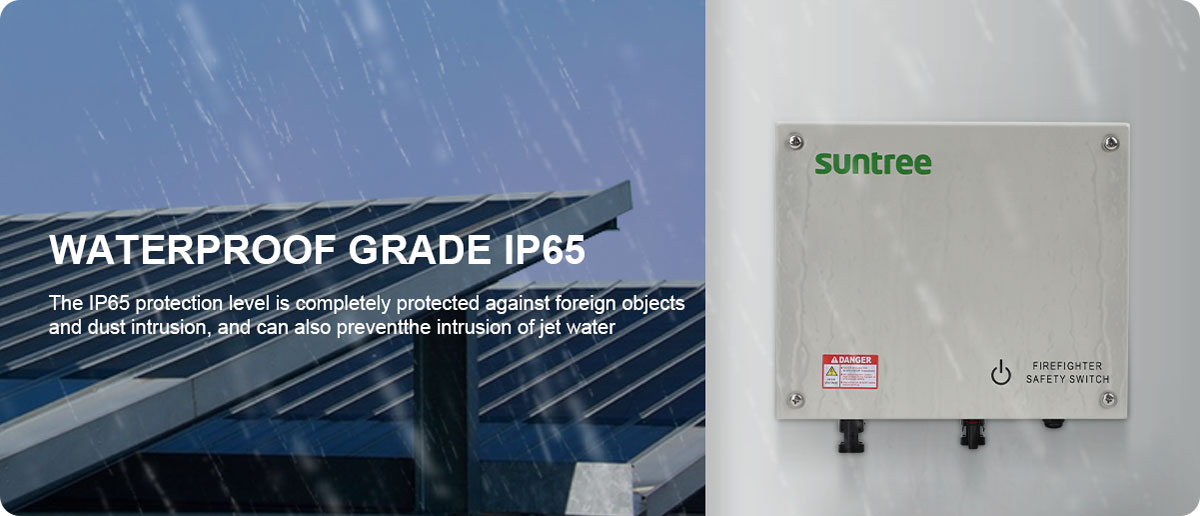

• ip65 protection & anti uv

• lsolator with CE,CB,TUV,SAA



ELECTRICAL TECHNICAL REFERENCE

Model S-ISOH-40-1 S-ISOH-40-2
MAIN LOOP PARAMETERS
Number of string 1 2
Max DC voltage 1500Vac
Max DC current 40A
Parameters 1500V26A, 1000V40A, 600V40A
DC connector MC4
CONTROL LOOP PARAMETERS
Power supply type AC single phase
Nominal voltage 230Vac
Operating voltage 100-270Vac
Nominal frequency 50Hz
Operating frequency 47-53Hz
Nominal Curren 30mA
Max current 300mA
AC connector Plug-in
PRODUCT PARAMETERS
Protection degree IP65
Protection level Class Ⅱ
Certification CE
Switch according to EN 60947-3
Number of operations >10000
N.of operations under load >1500
Operating temperature -20℃ ~70℃
Temperature sensor trigger 70℃
Warranty 5 years
Dimensions(L*W*H) 265*280*115
Weight 2950g 3130g
