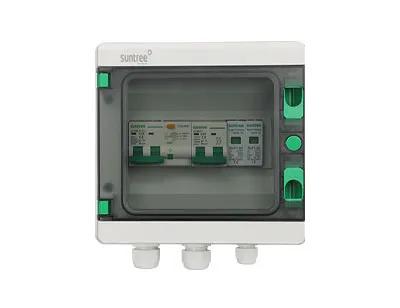

Single Phase AC Combiner Box

Single Phase AC Combiner Box

• CE

• IP65

ELECTRICAL TECHNICAL REFERENCE

1.5KW



DC QUANTITIES AC QUANTITIES
SL7-63 DC MCB 2P 1PCS SCB8-63 AC MCB 2P 1PCS
SUP2 DC SPD 2P 1PCS SUP1 AC SPD 2P 1PCS
SRD DC FUSE 1P 2PCS - -





3KW



DC QUANTITIES AC QUANTITIES
SL7-63 DC MCB 2P 1PCS SCB8-63 AC MCB 2P 1PCS
SUP2 DC SPD 2P 1PCS SUP1 AC SPD 2P 1PCS
SRD DC FUSE 1P 2PCS - -





5KW(1MPPT)



DC QUANTITIES AC QUANTITIES
SL7-63 DC MCB 2P 1PCS SCB8-63 AC MCB 2P 1PCS
SUP2 DC SPD 2P 1PCS SUP1 AC SPD 2P 1PCS
SRD DC FUSE 1P 2PCS - -





5KW(2MPPT)



DC QUANTITIES AC QUANTITIES
SL7-63 DC MCB 2P 2PCS SCB8-63 AC MCB 2P 1PCS
SUP2 DC SPD 2P 2PCS SUP1 AC SPD 2P 1PCS
SRD DC FUSE 1P 4PCS - -
