Single Phase AC Combiner Box

Single Phase AC Combiner Box

• High reliability
With AC Surge Protection Device
With DC circuit breaker, rated voltage AC690V

• Strong adaptability

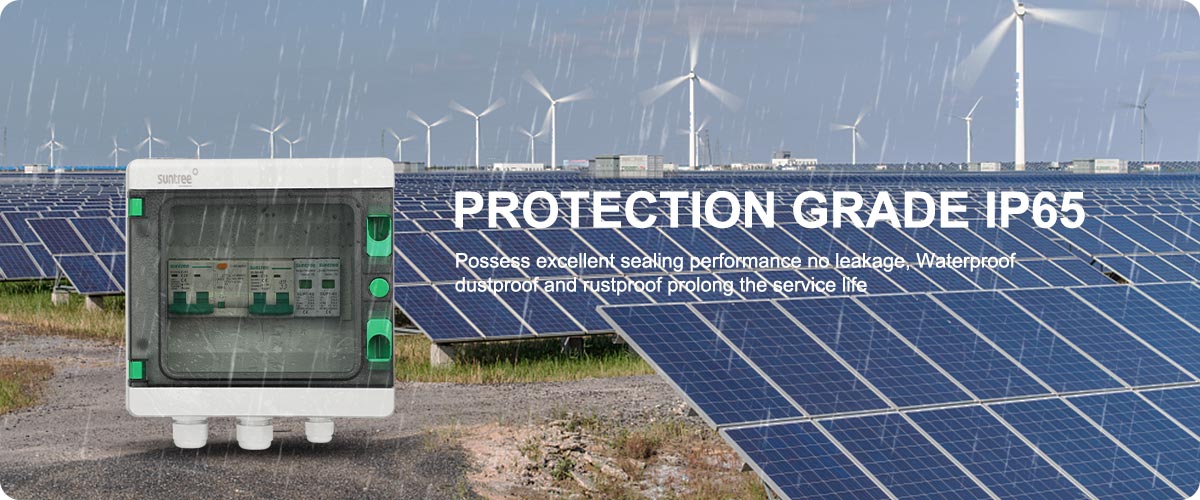

IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring

• Flexible configuration
Used for AC output of 1-50kw inverter. Current rating of the photovoltaic fuse, circuit breaker is modified.

ELECTRICAL TECHNICAL REFERENCE

SHLX-3000
Maxinputvotage 275
Inputcurrentpersting (a) 15
Rated working votage (v) 220
Overvotage protection level (up) <1.8KV
Nominal discharge curent (in) 20KA
Max discharge curent(max) 40KA
Response time 25ns
Operational ervironment Woring temperature-40℃±85℃, humidity 95%, no condensaton.no corrosive gas
Attude ≤2500m
Surge protection device SUP1-40 2P 20-40KA
Box material Engineering plastics
Box protection grade IP65
Cable gland protection grade IP65

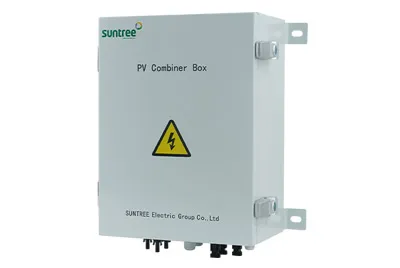

Recommended Products
