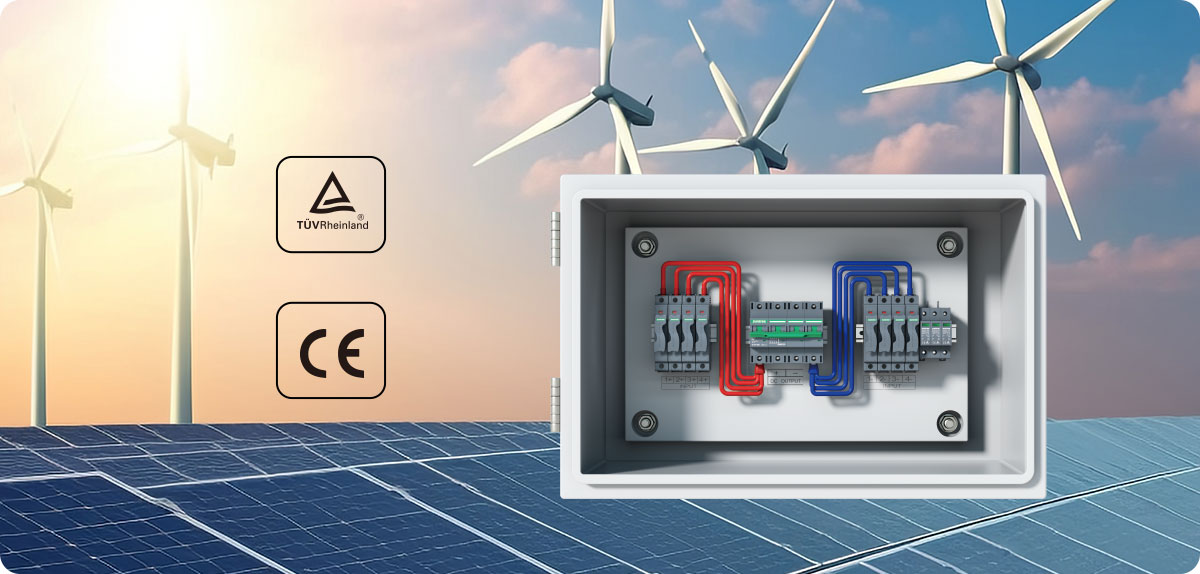

SHLX-PV4/1 DC Combiner Box DC 1500V

SHLX-PV4/1 DC Combiner Box DC 1500V

• Support customization and provide reasonable solutions

• Comprehensive configuration, effectively protect the normal operation of the system

• Protection grade IP65, can be installed in the outdoor, effective waterproof

• Convenient wiring, factory components have been completed wiring

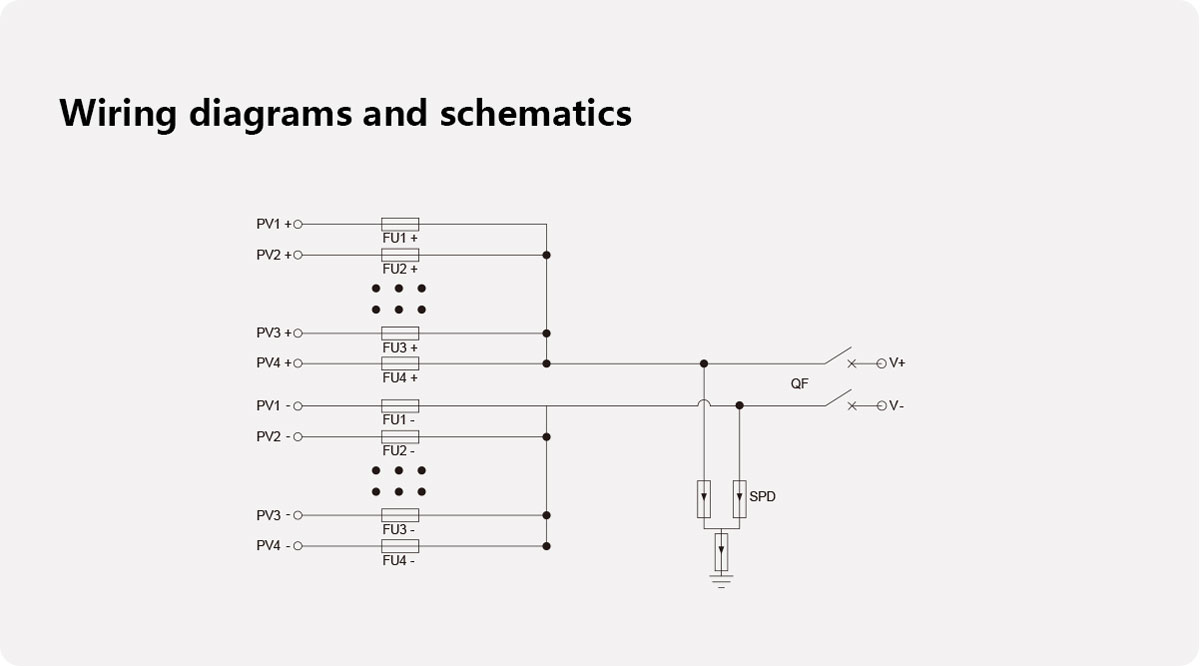

SHLX-PV4/1 DC Combiner Box Configuration

PRODUCT PRODUCT MODEL POLE RATED OPERATIONAL
VOLTAGE/UE (V)		 RATED OPERATIONAL
CURRENTAN (A)		 QUANTITIES
DC FUSE SRD-50H 1P 1500V 6-50A 8
DC MCB SL7N-125D 4P 1500V 16-125A 1
DC SPD SUP2-PV 3P 1500V T2/20-40KA 1
