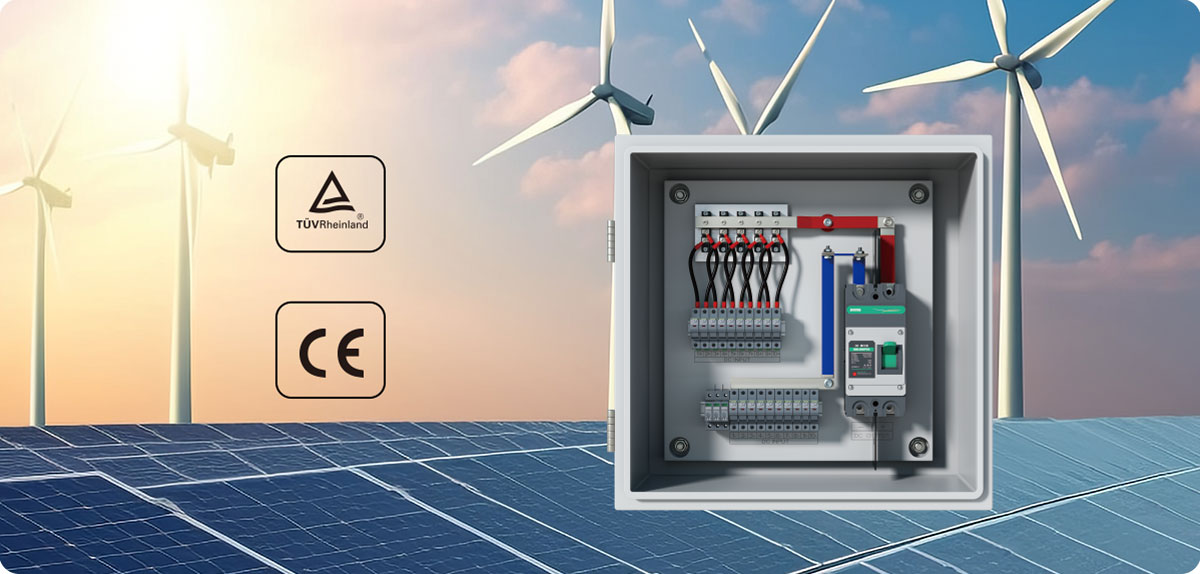

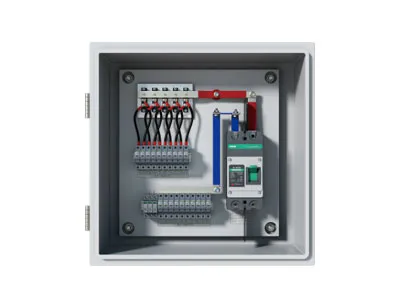

SHLX-PV10/1 DC Combiner Box DC 1000V

SHLX-PV10/1 DC Combiner Box DC 1000V

• Support customization and provide reasonable solutions

• Comprehensive configuration, effectively protect the normal operation of the system

• Protection grade IP65, can be installed in the outdoor, effective waterproof

• Convenient wiring, factory components have been completed wiring

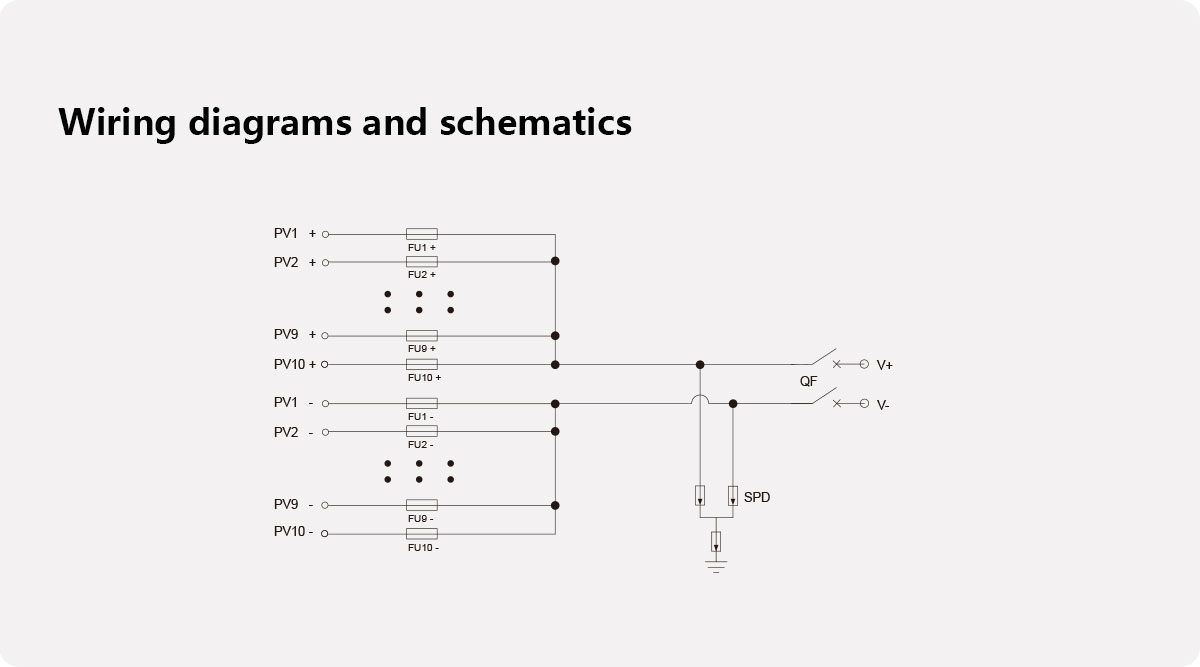

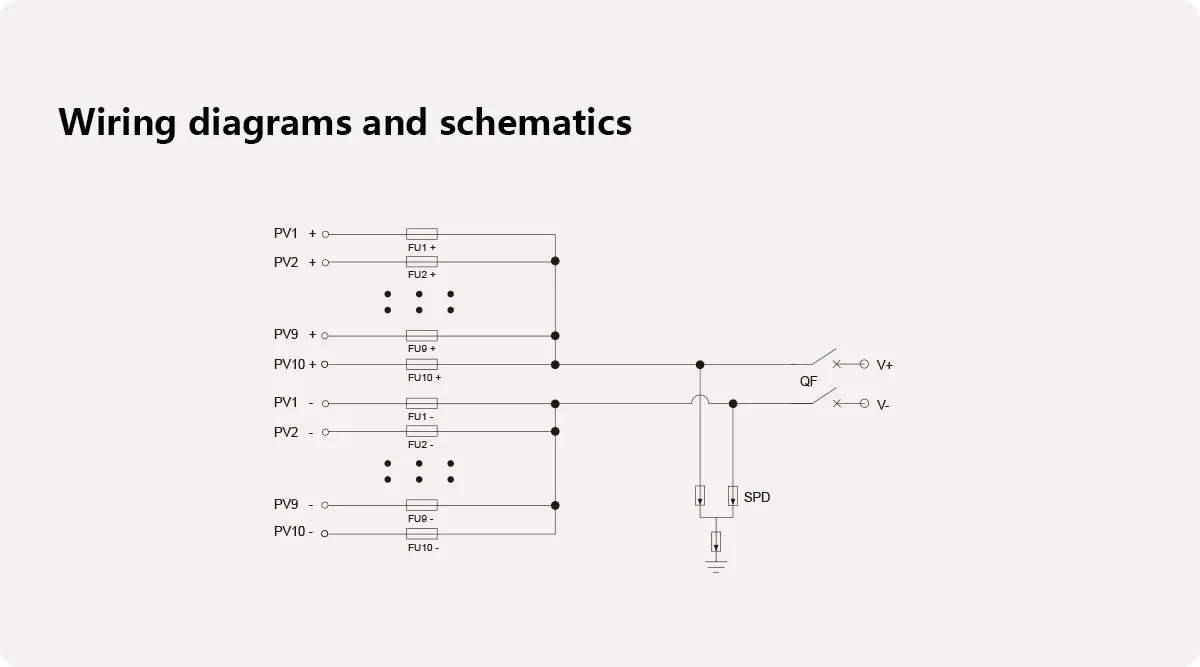

SHLX-PV10/1 DC Combiner Box Configuration

PRODUCT PRODUCT MODEL POLE RATED OPERATIONAL
VOLTAGE/UE (V)		 RATED OPERATIONAL
CURRENTAN (A)		 QUANTITIES
DC FUSE SRD-30 1P 1100V 6-30A 20
DC MCCB SM8-250HPV 2P 1000V 80-250A 1
DC SPD SUP2H1-PV 3P 1000V T2/20-40KA 1

Recommended Products

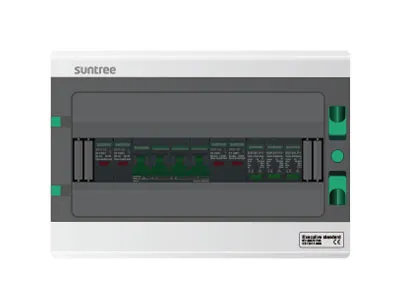

SHLX-PV2/1 DC Combiner Box DC 1000V

SHLX-PV2/1 DC Combiner Box DC 1000V

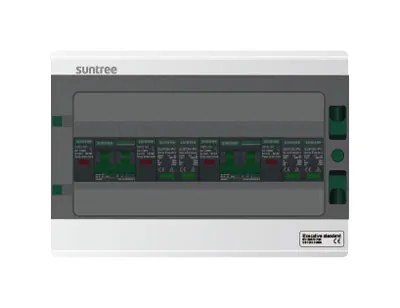

SHLX-PV2/2 DC Combiner Box DC 1000V

SHLX-PV2/2 DC Combiner Box DC 1000V

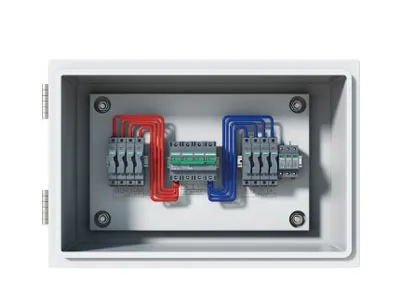

SHLX-PV4/1 DC Combiner Box DC 1500V

SHLX-PV4/1 DC Combiner Box DC 1500V

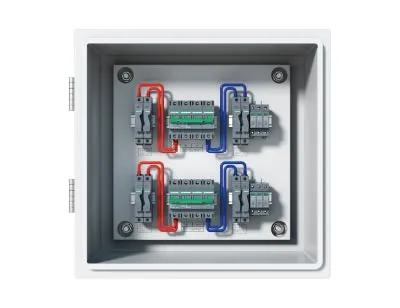

SHLX-PV4/2 DC Combiner Box DC 1500V
