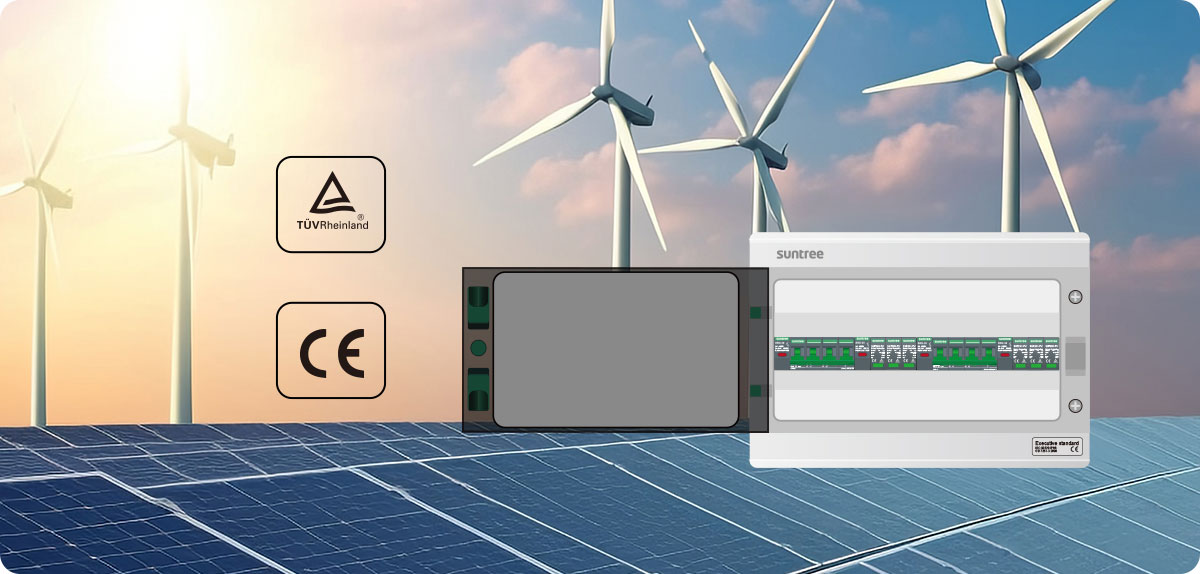

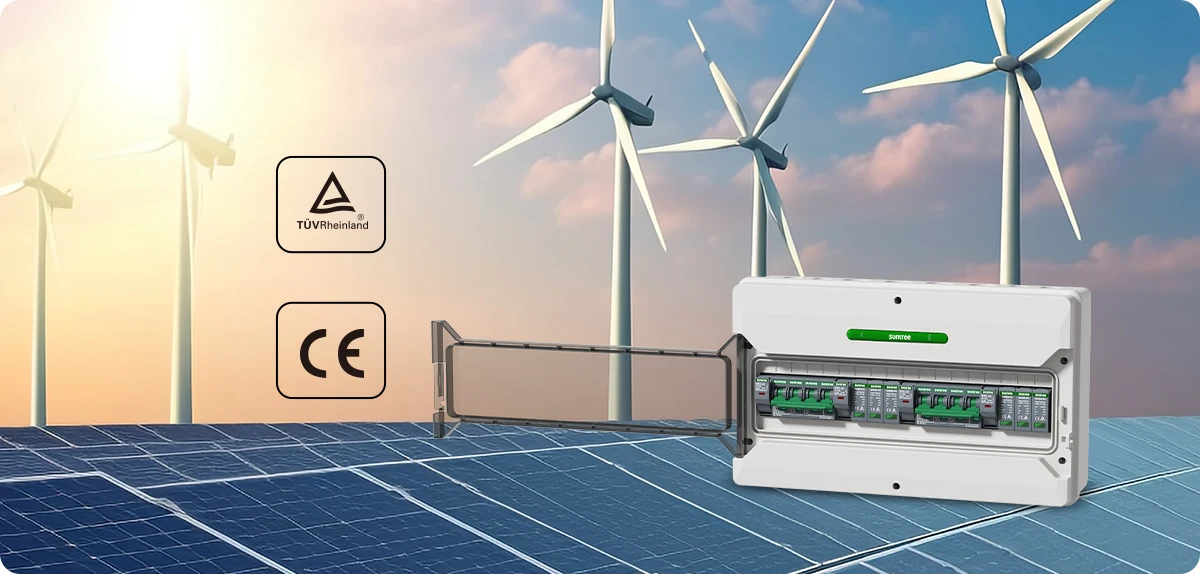

SHLX-PV2/2 DC Combiner Box DC 1000V

SHLX-PV2/2 DC Combiner Box DC 1000V

• Compact size, easy to install

• Comprehensive configuration, effectively protect the normal operation of the system

• Protection grade IP65, can be installed in the outdoor, effective waterproof

• Convenient wiring, factory components have been completed wiring

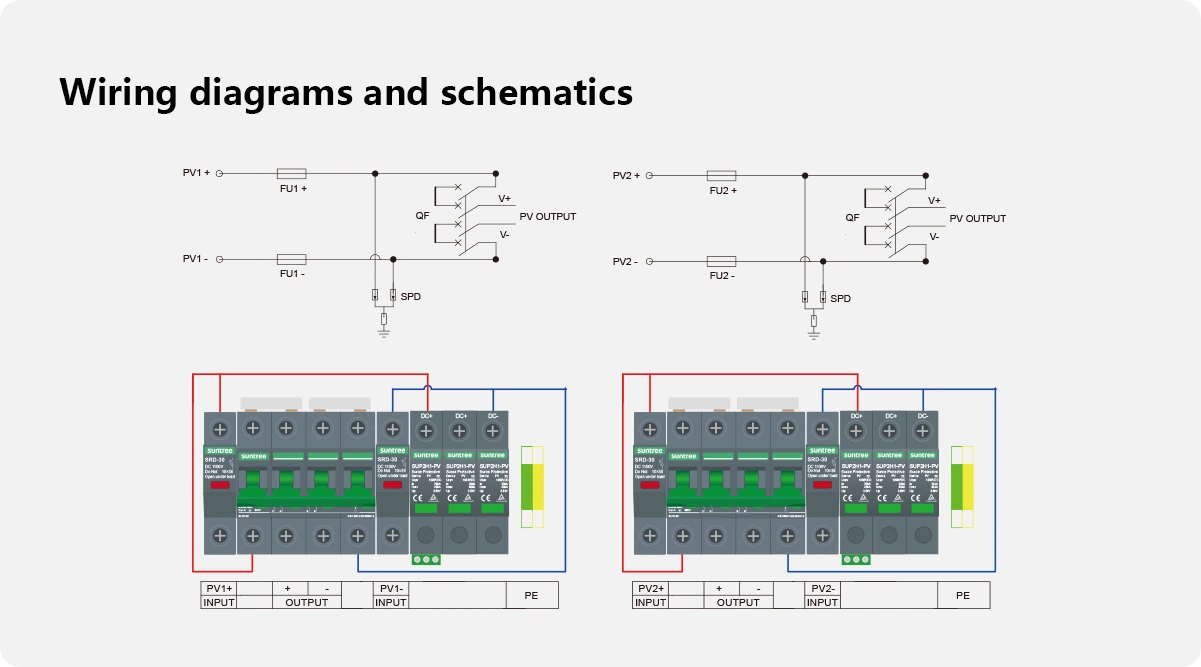

SHLX-PV2/2 DC Combiner Box Configuration

PRODUCT PRODUCT MODEL POLE RATED OPERATIONAL
VOLTAGE/UE (V)		 RATED OPERATIONAL
CURRENTAN (A)		 QUANTITIES
DC FUSE SRD-30 1P 1100V 6-30A 4
DC MCB SL7N-63 4P 1000V 16-63A 2
DC SPD SUP2H1-PV 3P 1000V T2/20-40KA 2
