SL7 PV DC breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
DC Circuit Breaker
China Suntree Electric production’s DC Circuit Breaker,12 volt DC MCB and other products with leading technical level in this field.

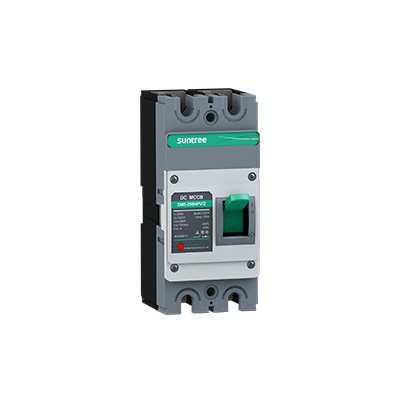

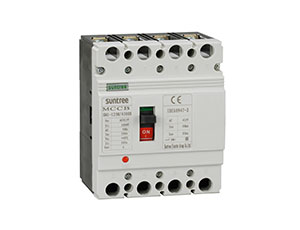

Reliable protection at high ambient temperatures Loadable:string protection up to 125, size:63A,80A,100A,125A; 250. size:160A,200A,220A,250A; 400, size:320A,400A Tested:ultimate short circuit breaking capacity Icu of 25kA according to IEC60947-2, SM1-PV 3P DC750V 4P DC1000V specialized in Moulded Case Ci...

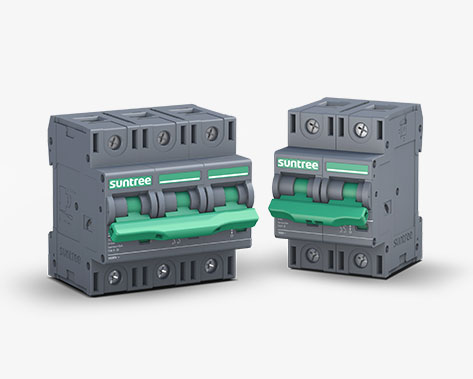

SL7N-125D with overload delay protection, short circuit instantaneous protection, provide short-circuit protection,overload protection from the 1500VDC.
Model Number:SL7N-125D Certification：TUV、CE Rated voltage：DC1500V Short-circuit breaking capacity：6KA Poles: 2P/4P Rated current:10A/25A/25A/32A/40A

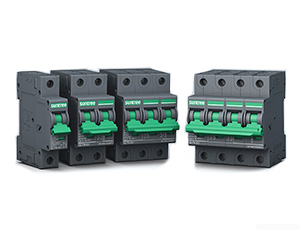

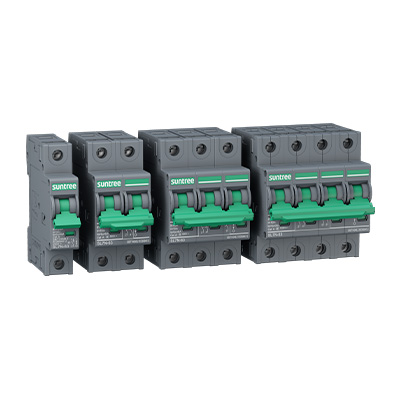

Model Number:SL7N-63 Certification：TVU、CE Rated voltage：DC1000V Short-circuit breaking capacity：6KA Poles: 1P,2P,3P,4P Rated current:10A、25A、25A、32A、50A、63A
Main functionWith overload delay protection, short circuit instantaneous protection, used to distribute electric energy, protect circuit and the power supply equipment from the danger of overload,shor

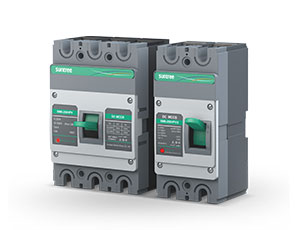

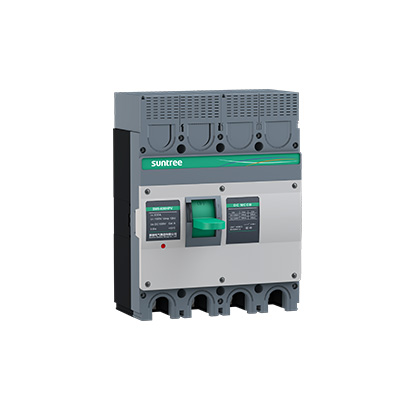

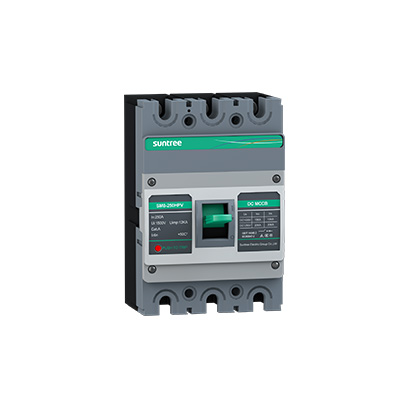

Model Number:SM1-250HPV/SM1-630HPV; Certification：TVU、CE、CB; Rated voltage：DC1500V; Short-circuit breaking capacity: 3P:15KA 4P:30KA; Poles: 3P/4P; Rated current: 3P:100/125/160/200/225/250A 4P:400/500/630
