DC Circuit Breaker 24-550V

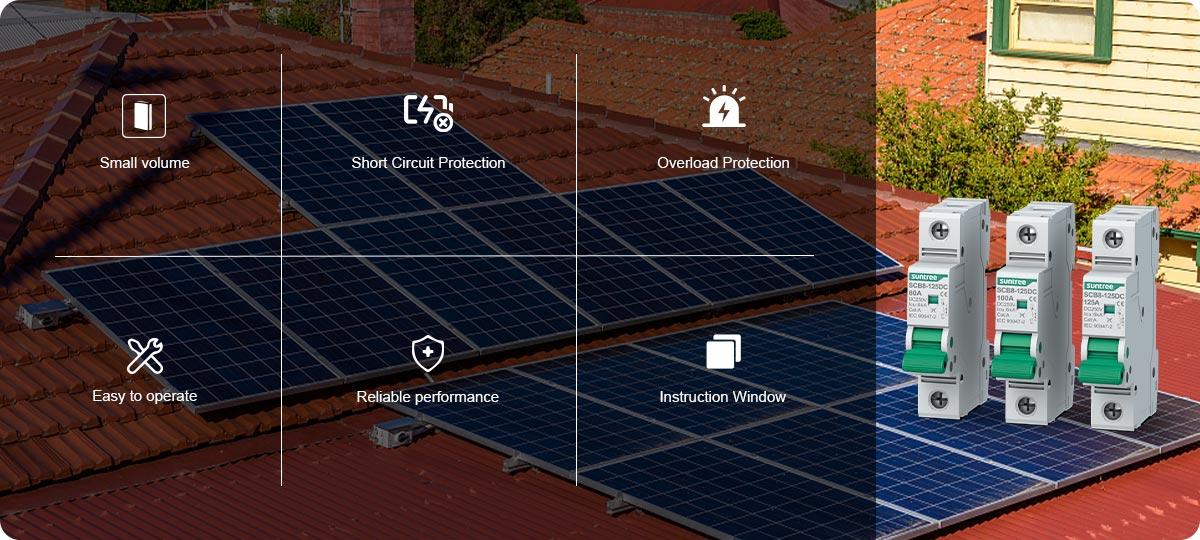

• Protection functions: overload, short circuit

• Rated short circuit breaking capacity icu up to 6kA

• Non-polarity, easy wiring

• Rated current in up to 125a

• Rated voltage ue up to 550v

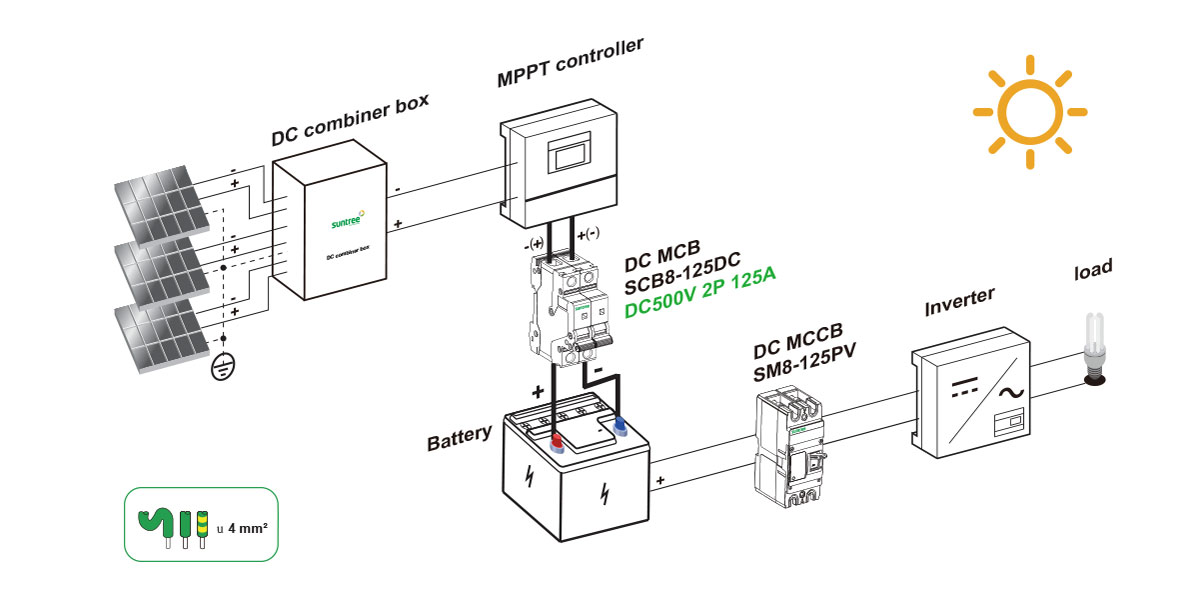

• Designed for pv, energy storage and other dc applications

Application scenario

The maximum ambient air temperature does not exceed +40℃,

Minimum is not less than-5℃ And the average value does not exceed +35℃

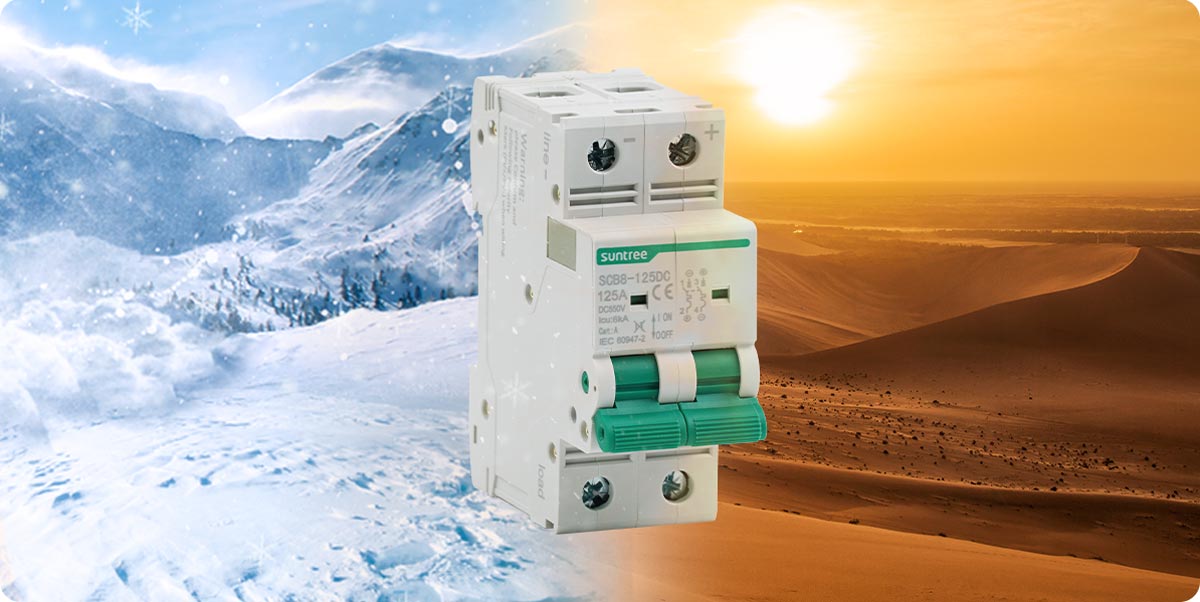

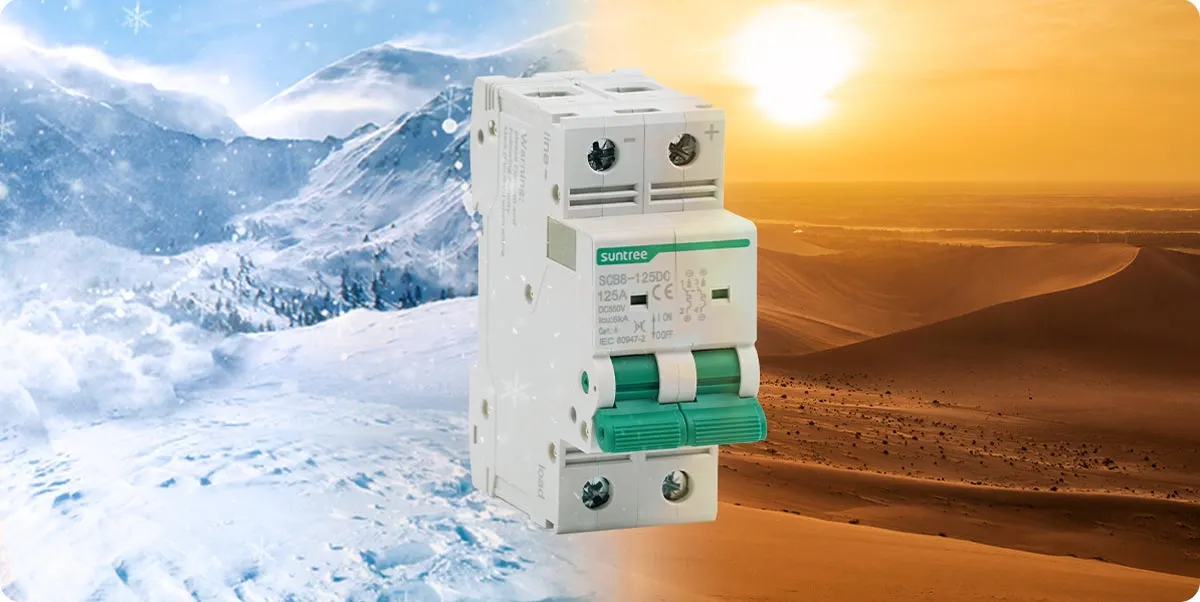

Strong environmental adaptability
and reliable operation in extreme environment

ELECTRICAL TECHNICAL REFERENCE

SCB8-125DC
Pole	1P, 2P
Rated current In(A)	1A, 2A, 3A, 4A, 5A, 6A, 10A,16A, 20A, 25A, 32A, 63A, 80A,100A,125A;
Rated voltage (V DC)	1P(DC24-250V), 2P(DC550V)
Rated ultimate short circuit capacity	60000
Lnstantaneous release current	8In-12In
Rated short circuit breaking capacity icu	6kA
Protection functions	Overload, short circuit
Mechanical life	20000
Ambient temperature	-5℃ ~ +40℃
Installation site	Altitude not exceeding 2000m.
Pollution level	2
Installation category	Ⅱ
