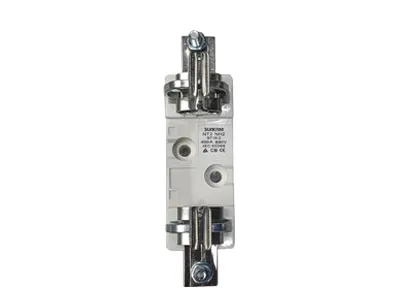

NT2 AC Fuse Base

• Features&Benefits

• High breaking capacity

• Reliable indicator system

• Optional dual indicator version

• IEC 60269-1 and 2

• Industrial fuse links for a wide variety of applications.

PARAMETERS

Model Number	NT000-NT3 Fuse bases
Voltage	500Vac
Current	Up to 800A
Breaking Capacity	120kA
Matched fuses	NH000-NH3 Fuses
Standards	GB13539.1/.2 IEC 60269-1/-2
Country of Origin	China

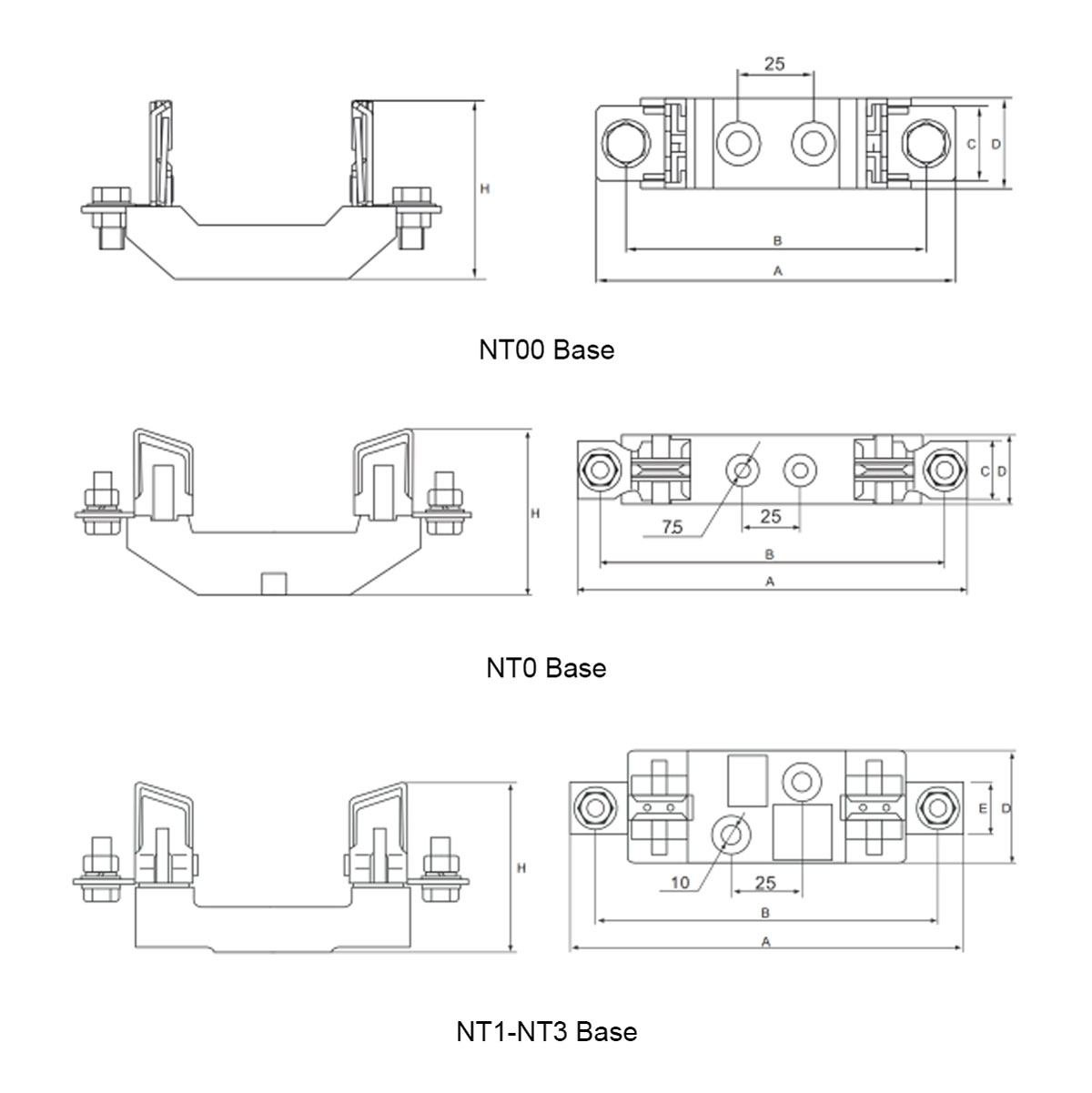

DIMENSIONS(MM)

DIMENSIONAL PARAMETERS

Model	Rated voltage (Vac)	Ratedcurrent (A)	Matched fuse size	Dimension
Model	Rated voltage (Vac)	Ratedcurrent (A)	Matched fuse size	A	C	D	E	H
NT00 Base	500/690	160	NT000/NTO0/NT000S	120	100	30	25	60
NT0 Base	500/690	160	NT0/NT0S	170	150	25	30	75
NH1 Base	500/690	250	NT1/NT1S/NT1C	196	174	25	56	80
NT2 Base	500/690	400	NT2/NT2S/NT2C	225	200	30	60	95
NT3 Base	500/690	630	NT3/NT3S/NT3C	250	210	40	60	100
