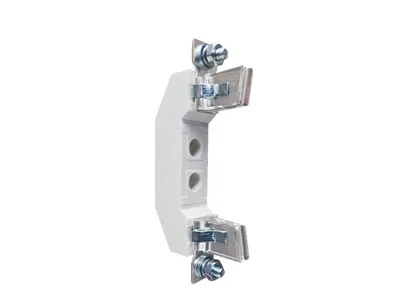

NT0 AC Fuse Base

NT0 AC Fuse Base

• Features&Benefits

• High breaking capacity

• Reliable indicator system

• Optional dual indicator version

• IEC 60269-1 and 2

• Industrial fuse links for a wide variety of applications.



PARAMETERS

Model Number NT000-NT3 Fuse bases
Voltage 500Vac
Current Up to 800A
Breaking Capacity 120kA
Matched fuses NH000-NH3 Fuses
Standards GB13539.1/.2 IEC 60269-1/-2
Country of Origin China

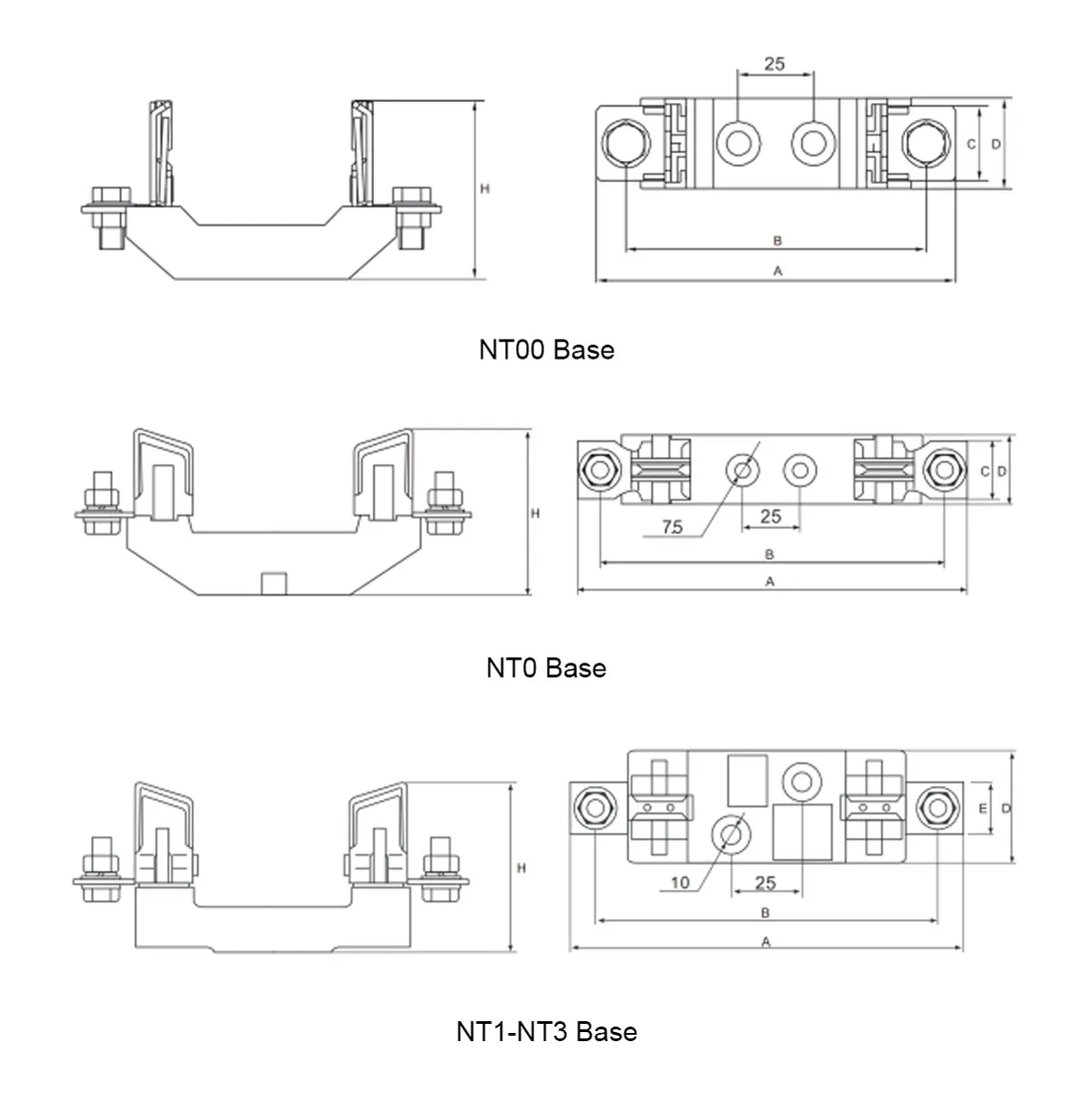

DIMENSIONS(MM)






DIMENSIONAL PARAMETERS

Model Rated voltage (Vac) Ratedcurrent (A) Matched fuse size Dimension
A C D E H
NT00 Base 500/690 160 NT000/NTO0/NT000S 120 100 30 25 60
NT0 Base 500/690 160 NT0/NT0S 170 150 25 30 75
NH1 Base 500/690 250 NT1/NT1S/NT1C 196 174 25 56 80
NT2 Base 500/690 400 NT2/NT2S/NT2C 225 200 30 60 95
NT3 Base 500/690 630 NT3/NT3S/NT3C 250 210 40 60 100
