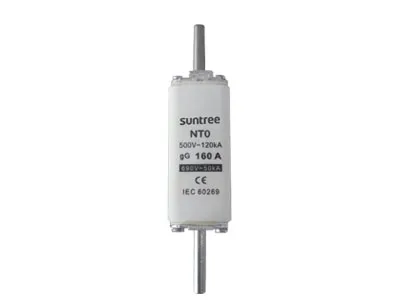

NTO AC Fuse Links

• High breaking capacity

• Reliable indicator system

• Optional dual indicator version

• IEC 60269-1 and 2

PARAMETERS

Model Number	NH000-NH3 Fuse links
Voltage	500Vac
Current	Up to 630A
Breaking Capacity	120kA
Operating class	gG Fuse
Standards	IEC13539.1/.2 IEC 60269-1/-2
Country of Origin	China

Model	Rated voltage	Ratedcurrent	Dimension
Model	(Vac)	(A)	A	B	C	D	H
NT000/NT00C/NT000S	500	6-125	78	50	15	21	53
NT00/NT00S	500	50-160	78	51	15	30	60
NT0/NT0S	500	6-160	125	68	15	30	60
NT1C	500	16-160	135	68	15	30	67
NT1/NT1S	500	32-250	135	68	20	46	62
NT2C	500	23-250	150	68	20	46	67
NT2/NT2S	500	80-400	150	68	25	58	74
NT3C	500	200-400	150	68	25	58	81.5
NT3/NT3S	500	160-630	150	68	32	70	82
