• 1inch LED display
• 1-Phase 3.5KW
• Type A
• With Indicator light
• Plug-in and Charge
• Plug in and charge

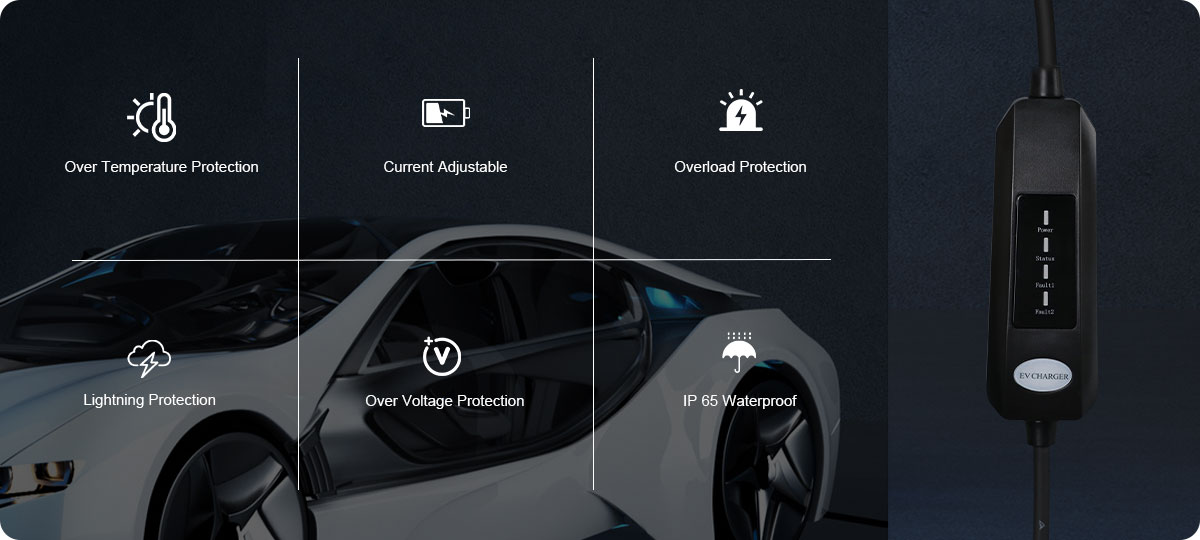

• Multiple protection
• Waterproof grade IP54
• Output power up to 3.5KW
• Will automatically stop when fully charged
• Shell by thermoplastic PC94-V0, abrasion protection
• The smart chip can automatically fix common charging errors to ensure the stable operation of the product
| DETAILED SPECIFICATIONS | |
| Product model | Portable EV Charger SPG2E |
| STRUCTURE APPEARANCE | |
| Product properties | 3.5Kw |
| Charging cable | 5 meters |
| ELECTRICAL INDICATORS | |
| Input/Output Voltage | AC100-240V |
| Frequency | 50/60Hz |
| Rated power | 3.5KW |
| Maximum Current | 16A |
| FEATURE DESIGN | |
| Start mode | Plug & play |
| Display information | 1 inch LCD screen |
| SAFETY DESIGN | |

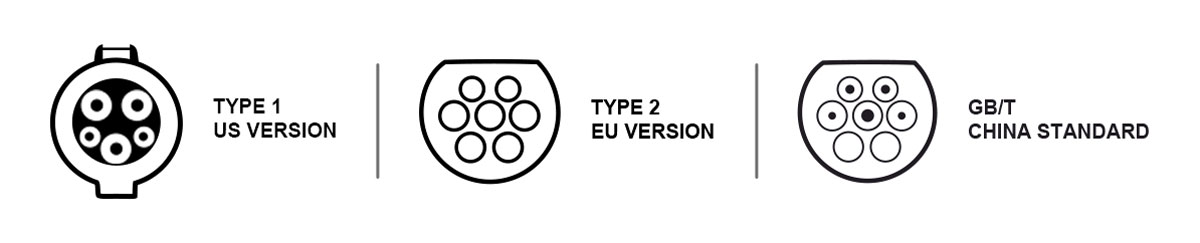

| Executive standard | SAEJ1722(Type1)/IEC62196 Type2/CHINA standard GB/T |
| Display function | Display parameters Charge voltage, charge current, charge quantity, sOC, fault code |
| USE ENVIRONMENT | |
| Working temperature | 5-95% RH |
| Working humidity | -30℃~50℃ |
| The cooling way | Natural air cooling |
