Choosing the right DC circuit breaker
When purchasing a DC MCB , there are three core points: matching the voltage and current of the system, ensuring that protection does not "fail" under extreme operating conditions, and controlling the full...
• CE UKCA certified
• Portable, plug-in and play
• Minimal size
• Type 2 charging cable
• Adjustable output current
• Robust protection:lP54
• Leakage protection:TypeA+6mA DC
• Will automatically stop when fully charged
• Support LOGO customization
• Support Cable Length customization
• Input cable customization

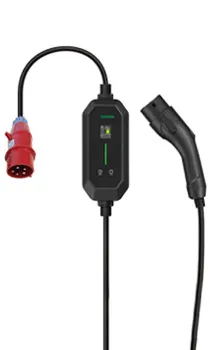

| Item | SPJ2E-22 |
| Power Supply | 3-Phase L1,L2,L3,PE,N,CP |
| Rated Voltage | 380V AC |
| Rated Current | Max 32A (Adjustable from 10A/16A/20A/24A/32A) |
| Frequency | 50/60Hz |
| Output Voltage | 380V AC |
| Maximum Current | 32A |
| Rated Power | 22kw |
| Charging Port | Type 2 |
| Cable Length | 5M |
| Cable Spec. | OD:16.8mm |
| Plug | 32A 5Pin CEE |
| LED Display | 1 inches LED Display |
| LED Indicator | Red/Green |
| Start Mode | Plug-in & Charge |
| Residual Current Protection | Type A+DC6mA |
| IP Degree | IP54 |
| Impact protection | IK08 |
| Multiple Protection | Over/Under Current Protection , Short Circuit Protection, Ground Protection , Surge Protection, Over/Under Voltage Protection, Over/Under Temperature Protection |
| Certification | CE |
| Certification Standard | EN IEC 61851-1:2019, EN 62752:2016/A1:2020 EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021 |
| Warranty | 2 Years |

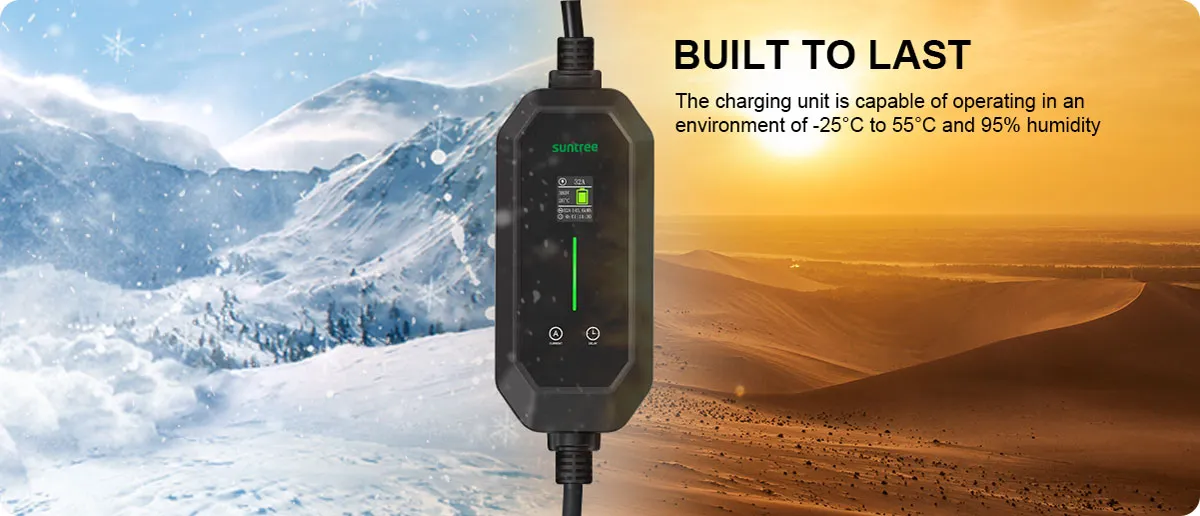

| Work Temperature | -25℃~ 55℃ |
| Storage Temperature | -40℃~ 70℃ |
| Work Humidity | 5% -95%RH |
| Work Altitude | <2000M |
| Dimension | 287*120*76mm(H*W*D) |
| Weight | 2.2KGS |
GET A QUOTE
