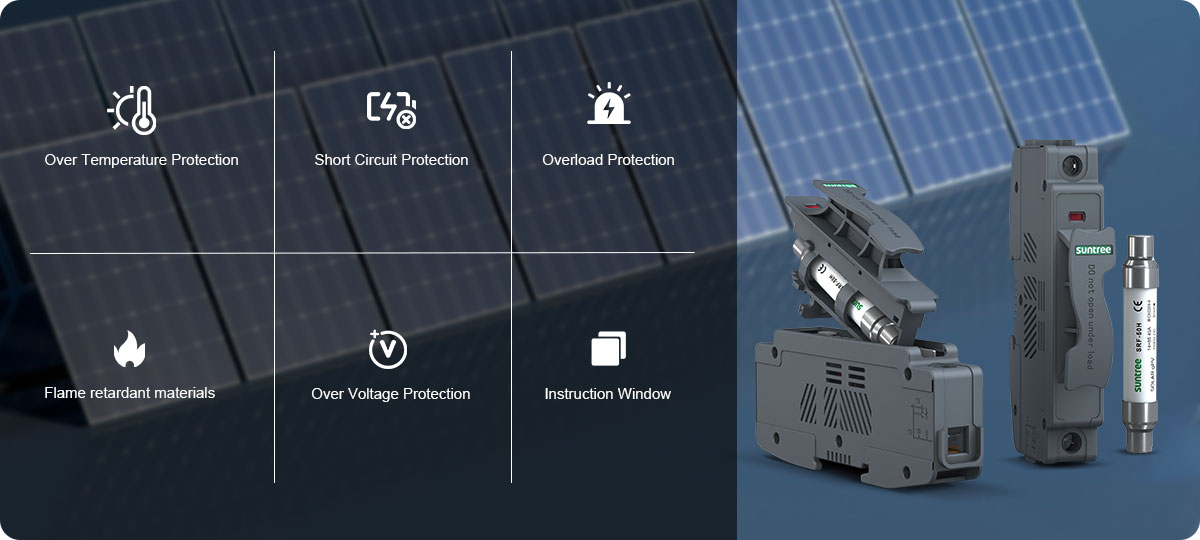

• ventilation slot The ventilation slot and cooling chamberhave strong
heat dissipation performance.
• red copper terminal block Thickness up to 1.0mm.
• indication window design Signal whether the fused core is fused or
not(light on fused, off on normal)
| DC FUSE BASE | |
| Product model | CH-50H SRD-50H DC fuse isolating switch |
| Citation standards | IEC/EN60947-1 IEC/EN 60947-3 |
| Rated insulation voltage Ui | 1600V |
| Rated service voltage Ue | DC1500V |
| Rated service current le | 2/3/4/5/6/8/10/12/1 5/16/20/25/30/32/35/40/45/50A |
| Rated impulse withstand voltage Uimp | 8kA |
| Rated acceptable power dissipation | ≤12W |
| Numbers of poles | 1P |
| Rated limiting short circuit current | 50kA |
| Fuse dimensions for use | 10mm×85mm 14mm×85mm |
| Ingress protection | IP20 |
| Us category | PV-0 |

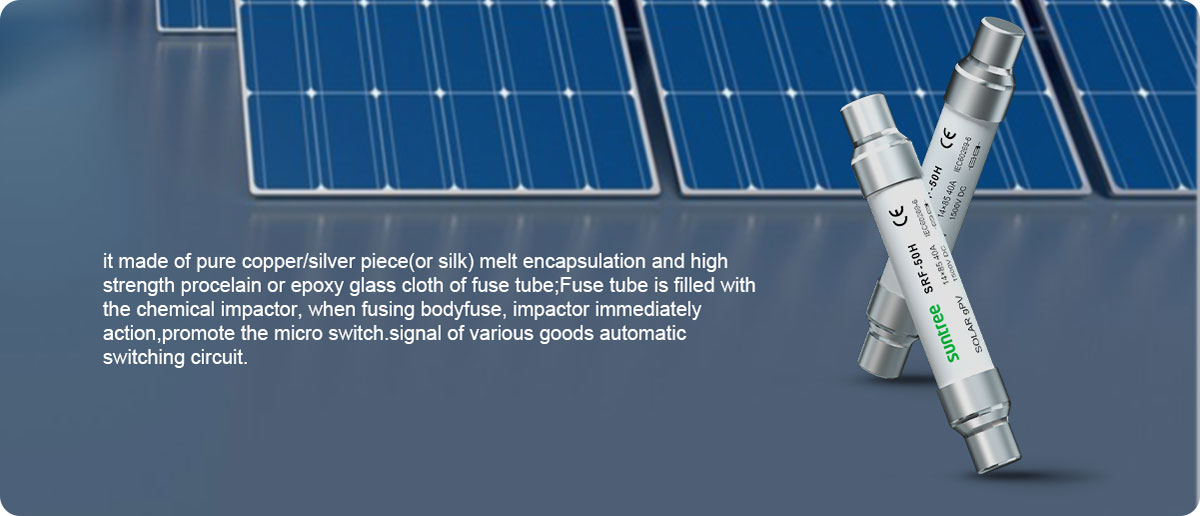

| DC FUSE LINK | ||
| Product Modelwv | SRF-25H | SRF-50H |
| Rated voltage | 1500VDC | 1500VDC |
| Rated insulation voltage Ui | 2/3/4/5/6/8/10/12/15/16/20/25A | 8/10/12/15/16/20/25/30/40/50A |
| Rated accepted power disipation | 2.5W | 2.5W |
| Size | 10mm×85mm | 14mm×85mm |
| Rated utimate short circuit breaking capacity | 20kA | 20kA |
| Reference Standard | EN 60269-1 / EN 60269-6 | EN 60269-1 / EN 60269-6 |
| Protection level | IP20 | IP20 |
| Use category | PV-0 | PV-0 |
| Fuse dimensions for use | 10mm×38mm | 10mm×38mm |
| Ingress protection | IP20 | IP20 |
