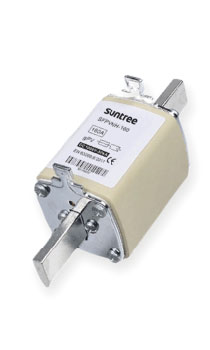

DC Fuse SFPVNH 1000V

DC Fuse SFPVNH 1000V

• Standard:IEC60269-6

• Rated Voltage:DC1000V

• Rated current: 50A、63A、80A、100A、125A、160A

• Breaking capacity:50kA

• Protection object:It is used in the photovoltaic combiner box to provide safe and reliable
   protection for overload and short-circuit current faults of PV modules and PV arrays.

• Operating class:gPV

• Applicable environment:Temperature,﹣5℃~﹢40℃;Humidity, less than 90%.

ELECTRICAL TECHNICAL REFERENCE

Product model Rated current (A) I²t (A²s) Power loss (w)
1.0 In
Net weight
Melting Clearing
SFPVNH1 50 159 1431 11.0 360g
SFPVNH1 63 467 4203 12.0
SFPVNH1 80 638 5742 15.50
SFPVNH1 100 1300 11700 16.50
SFPVNH1 125 2547 22923 17. 50
SFPVNH1 160 5198 46782 22.00

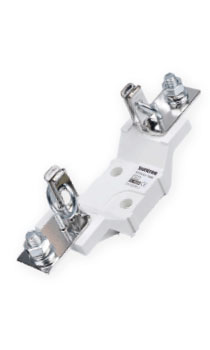

Product Type Rated Current Led indicator Net weight
SFPV-NH1B 160A NO 400g

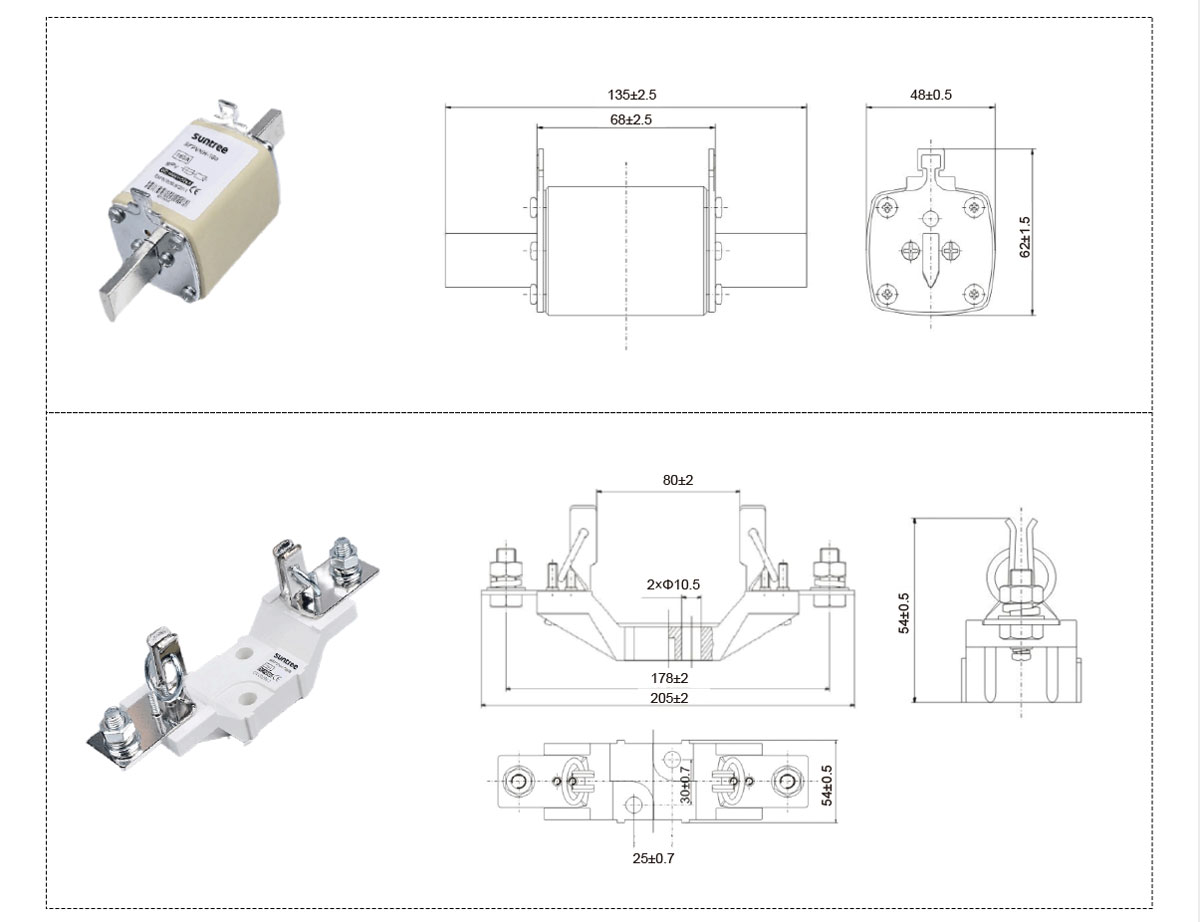

DIMENSIONS (MM)
