• Product material: default 304, optional 316 and 316L seal is EPDM rubber
• Protection grade: within the specified bayonet range,with the seal ring, the protection grade can reach lP68
• Working temperature: test - 40°~105° parts to ensure no damage and normal operation of equipment
• Flame retardant grade: UL94V-2, customized vo

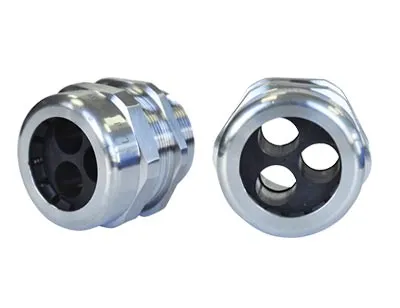

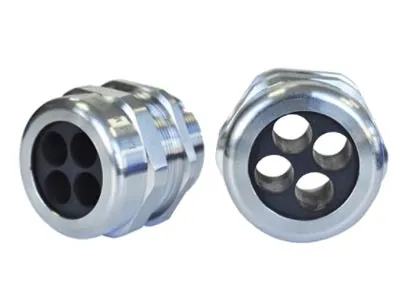

• Product performance: Multiple cables are locked andsealed at the same time, greatly saving space utilization
• Ordering lnstructions:
1. The default delivery does not include nuts. lf you need to purchase separately, please know
2. The default is 304 material. lf 316 is required, please changethe model suffix "- ss" to "S316"
3.The whole set includes: one set of gasket, main body, sealingring and nut;
4. The product price is (RMB: yuan/set, uSD: USD/set).
5. This product can be customized to any length. Please consult customer service for specific price.
METRIC THREAD SIZE TABLE
| Product model | Thread size | Cable range | Thread length | Wrench Size |
| PN. | Metric | mm | mm | nut/cap mm |
| MG12-H2-03-SS | M12×1.5 | 1.5~3 | 9 | 15/17 |
| MG14-H2-03-SS | M14×1.5 | 1.5~3 | 9 | 17/17 |
| MG16S-H2-03-SS | M16×1.5 | 1.5~3 | 9.5 | 20/17 |
| MG16-H2-04-SS | M16×1.5 | 2~4 | 9.5 | 20/21 |
| MG18-H2-04SS | M18×1.5 | 2~4 | 9.5 | 21/21 |
| MG20-H2-06-SS | M20×1.5 | 3~6 | 12 | 24/26 |
| MG20-H2-05-SS | M20×1.5 | 2~5 | 12 | 24/26 |
| MG20-H2-04-SS | M20×1.5 | 2~4 | 12 | 24/26 |
| MG20-H2-03-SS | M20×1.5 | 1.5~3 | 12 | 24/26 |
| MG20S-H2-05-SS | M20×1.5 | 2~5 | 12 | 24/24 |
| MG20X-H2-03-SS | M20×1.5 | 1.5~3 | 12 | 24/18 |
| MG22-H2-06-SS | M22×1.5 | 3~6 | 12 | 26/26 |
| MG24-H2-06-SS | M24×1.5 | 3~6 | 10.5 | 28/26 |
| MG25-H2-08-SS | M25×1.5 | 5~8 | 12 | 30/31 |
| MG25-H2-06-SS | M25×1.5 | 3~6 | 12 | 30/31 |
| MG25-H2-05-SS | M25×1.5 | 2~5 | 12 | 30/31 |
| MG27-H2-08-SS | M27×1.5/2.0 | 5~8 | 12 | 30/31 |
| MG27-H2-06-SS | M27×1.5/2.0 | 3~6 | 12 | 30/31 |
| MG30-H2-08-SS | M30×1.5/2.0 | 5~8 | 12.5 | 34/40 |
| MG30-H2-06-SS | M30×1.5/2.0 | 3~6 | 12.5 | 34/40 |
| MG32-H2-10-SS | M32×1.5 | 6~10 | 12.5 | 38/40 |
| MG32S-H2-08-SS | M32×1.5 | 5~8 | 12 | 38/31 |
| MG32S-H2-06-SS | M32×1.5 | 3~6 | 12 | 38/31 |
| MG32S-H2-05-SS | M32×1.5 | 2~5 | 12 | 38/31 |
| MG33-H2-10-SS | M33×2.0 | 6~10 | 14.5 | 38/40 |
| MG36-H2-10-SS | M36×1.5/2.0 | 6~10 | 13 | 42/40 |
| MG40-H2-13-SS | M40×1.5/2.0 | 9~13 | 14 | 48/50 |
| MG40S-H2-10-SS | M40×1.5 | 6~10 | 14 | 48/40 |
| MG42-H2-13-SS | M42×2.0 | 9~13 | 15 | 48/50 |
| MG48-H2-13-SS | M48×2.0 | 9~13 | 15 | 58/50 |
| MG50-H2-15-SS | M50×1.5 | 11~15 | 15 | 58/60 |
| MG50S-H2-13-SS | M50×1.5 | 9~13 | 15 | 54/50 |
| MG63-H2-17-SS | M63×1.5 | 14~17 | 15 | 71/76 |
| MG64-H2-17-SS | M64×2.0 | 14-17 | 15 | 71/76 |
| MG72-H2-17-SS | M72×2.0 | 14~17 | 15 | 80/75 |
