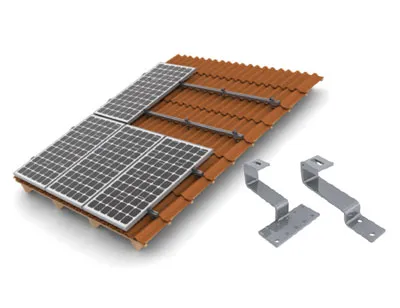

Tile-on Roof System

Tile-on Roof System

• Widely used for both crystalline and thin film modules.

• Easy & quick installation.

• Only 4~5 kinds of components and no more than three kinds of tools in whole system fixation.

• All system components are made with high quality aluminum & stainless steel.





INSTALLATION STEPS




TECHNICAL DATA

Installation site Metal sheet roof
Slope of roof Client requirement
Module specification Frame / frameless module, crystalline/thin film module
Installation type Parallel to the roof
Module arrangement Portrait \ Landscape
Module area square Client requirement
Module area position Client requirement
Roof structure Client requirement
Loading section A16063 T5
Small pieces Stainless steel, AIG6063T5
