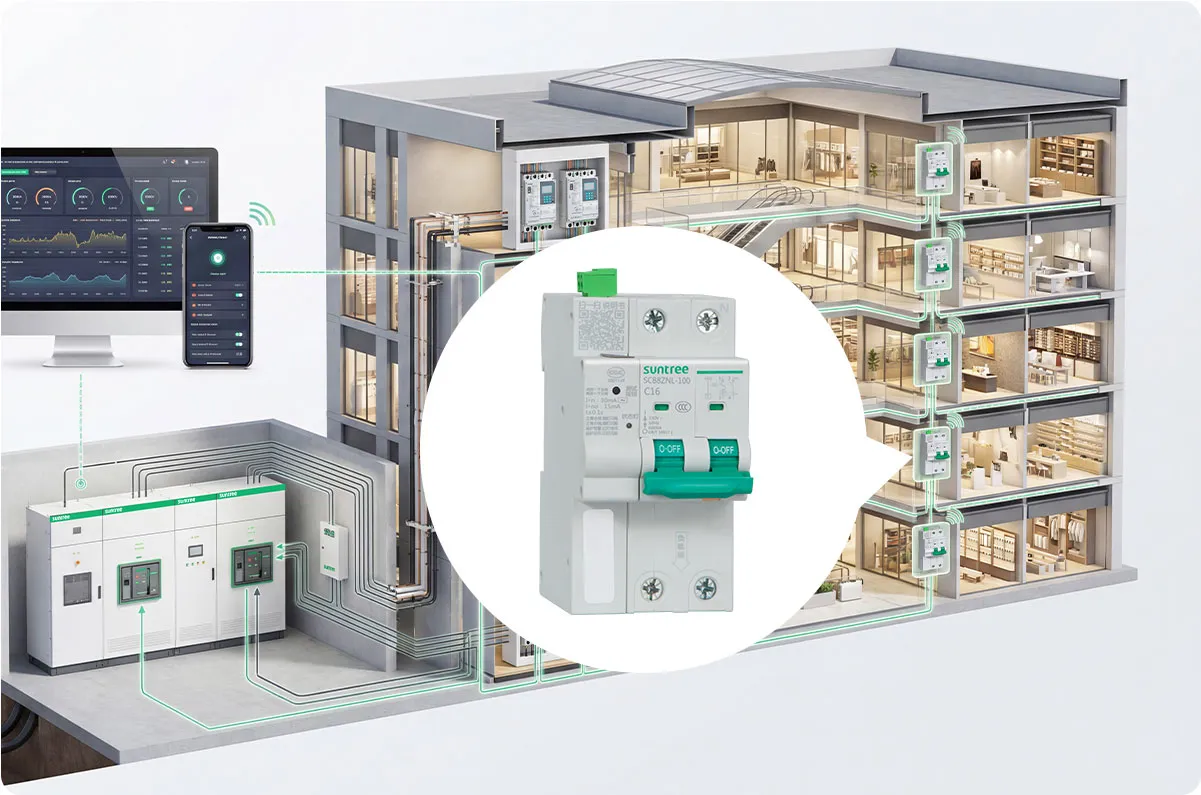

Iot Residual Circuit Breaker

• Control methods

• Safety protocol

• Readable historical fault Data

• Real-time line voltage monitoring

• Real-time line current monitoring

• Neutral disconnectionprotection

• Temperature detection

ELECTRICAL TECHNICAL REFERENCE

Number of Poles

1P,2P,3P,4P

Rated Operational Voltage Ue (V)

AC230/AC400

Rated Current (A)

6A,10A,16A,20A,25A,32A,40A,50A,63A,80A,100A

Undervoltage

Protection Setting:165±5 Reset Value:185±5

Overvoltage

Protection Setting:275±5 Reset Value:250±5

Earth Leakage Protection

30mA,50mA,100mA

Rated Short-Circuit Breaking Capacity Icn (A)

6000A

Communication Method

RS-485

Overload Current (A)

1A-100A

Temperature Alarm (°C)

0~120°C

Electrical Life

5000 times

Mechanical Life

20000 times

Mounting Footprint

2P/3P/4P/5P
