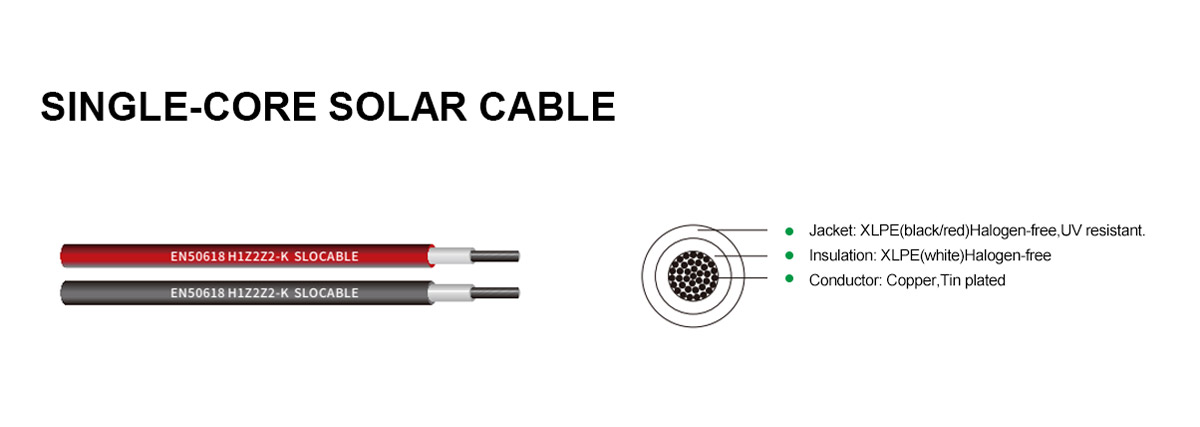

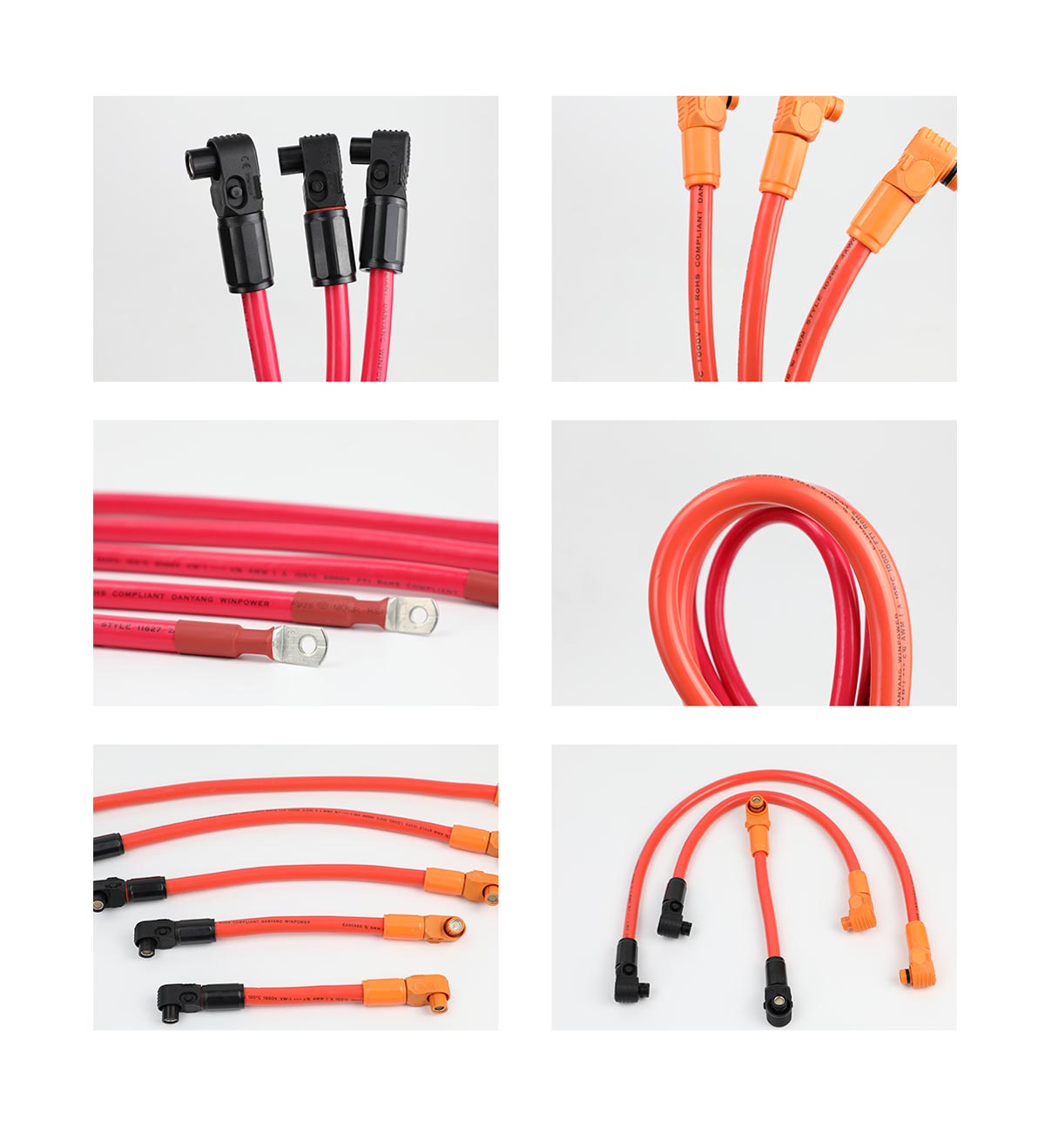

Single- core Solar Cable

Single- core Solar Cable

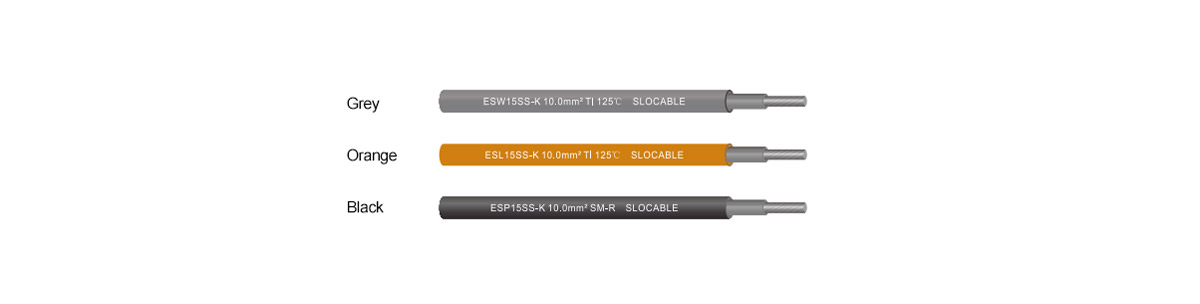

• Dual wall insulation.

• Electron beam cross-linked

• Excellent resistance to U.V, oil, greases, oxygen and ozone

• Excellent resistance to abrasion

• Halogen free, flame retardant, low toxicity

• Excellent flexibility and stripping performance

• High Voltage and Current carrying capacity

• TUV, CE, ISO approved

Technical Data

Specification Cross-section Conductor diameter Outer diamete The maximum conductor
DC resistance (20℃)
Rated current
mm² mm² mm mm±0.2 Ω/km A
1x2.5mm² 2.5mm² 2 5.1 8.21 30A
1x4.0mm² 4.0mm² 2.5 5.6 5.09 50A
1x6.0mm² 6.0mm² 3.2 6.3 3.39 70A
1x10.0mm² 10.0mm² 4 7.2 1.95 95A
1x16.0mm² 16.0mm² 5.5 8.5 1.24 132A
1x25.0mm² 25.0mm² 6.5 9.5 0.795 176A
1x35.0mm² 35.0mm² 7.7 11.1 0.565 218A
1x50.0mm² 50.0mm² 9.5 13.5 0.393 280A






ELECTRICAL TECHNICAL REFERENCE

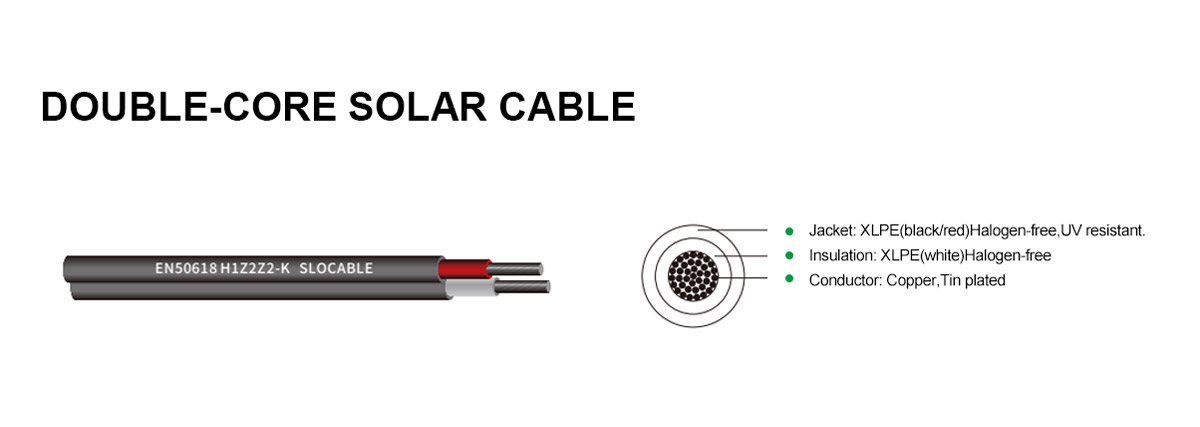

Specification Cross-section Conductor diameter Outer diamete The maximum conductor
DC resistance (20℃)
Rated current
mm² mm² mm mm±0.2 Ω/km A
2x2.5mm² 2.5mm² 2 5.1×2 8.21 30A
2x4.0mm² 4.0mm² 2.5 5.6×2 5.09 50A
2x6.0mm² 6.0mm² 3.2 6.3×2 3.39 70A
2x10.0mm² 10.0mm² 4 7.2×2 1.95 95A
2x16.0mm² 16.0mm² 5.5 8.5×2 1.24 132A






ELECTRICAL TECHNICAL REFERENCE

Specification Conductor Structure Stranded diameter Max.DC Resistance at 20°C Nominal thickness MAX.Insulation Dia
mm² mm² mm AT 20℃(Ω/km) mm mm
1x4.0mm² 133/0.2AS 2.66mm² 4.71 0.8 4.3
1x6.0mm² 190/0.2AS 3.42mm² 3.14 0.8 5.3
1x10mm² 323/0.2AS 4.40mm² 1.82 1.0 6.7
1x16mm² 513/0.2AS 5.7mm² 1.16 1.3 8.1
1x25mm² 798/0.2AS 6.7mm² 0.743 1.3 9.8
1x35mm² 1121/0.2AS 8.0mm² 0.527 1.5 11.0
1x50mm² 1596/0.2AS 9.5mm² 0.368 1.5 12.9
1x70mm² 2257/0.2AS 11.5mm² 0.259 1.6 14.9
1x95mm² 1887/0.2AS 13.5mm² 0.196 1.6 17.5
1x120mm² 2368/0.254AS 15.6mm² 0.153 1.8 19.5
1x150mm² 2960/0.254AS 17.7mm² 0.129 2.0 22.5






ELECTRICAL TECHNICAL REFERENCE

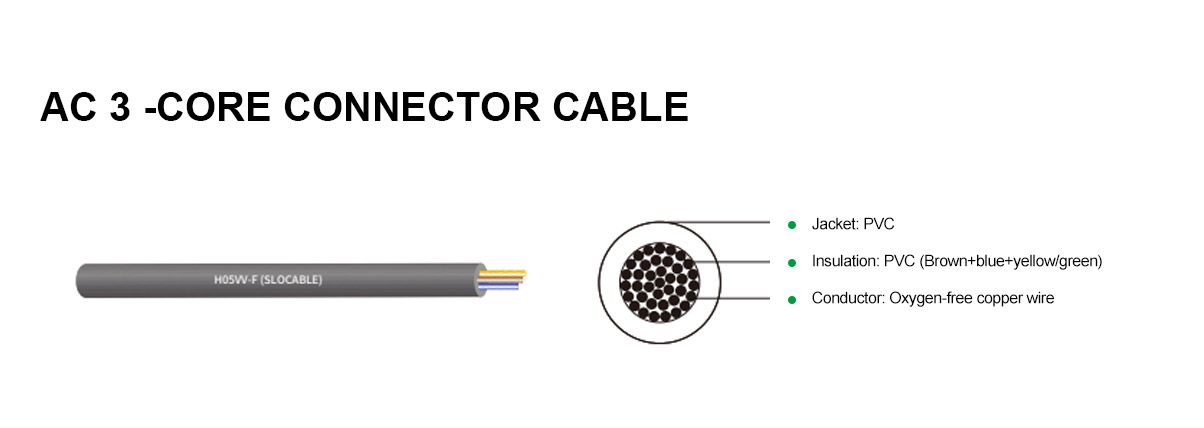

Specification Cross-section Cores Outer diameter Jacket thickness Insulation color Rated current
H05VV-F mm² Core wire O.D(mm) mm Color V
3 G 2.5 mm² 2.5mm² 3 cores 3.6 ± 0.10 mm 10.5 ± 0.2 mm Brown/Blue/Yellow Green 300/500V
3 G 4.0 mm² 4.0mm² 3 cores 4.20 ± 0.10 mm 12.2± 0.2 mm Brown/Blue/Yellow Green 300/500V
3 G 6.0 mm² 6.0mm² 3 cores 4.70 ± 0.10 mm 13.2± 0.3 mm Brown/Blue/Yellow Green 300/500V
