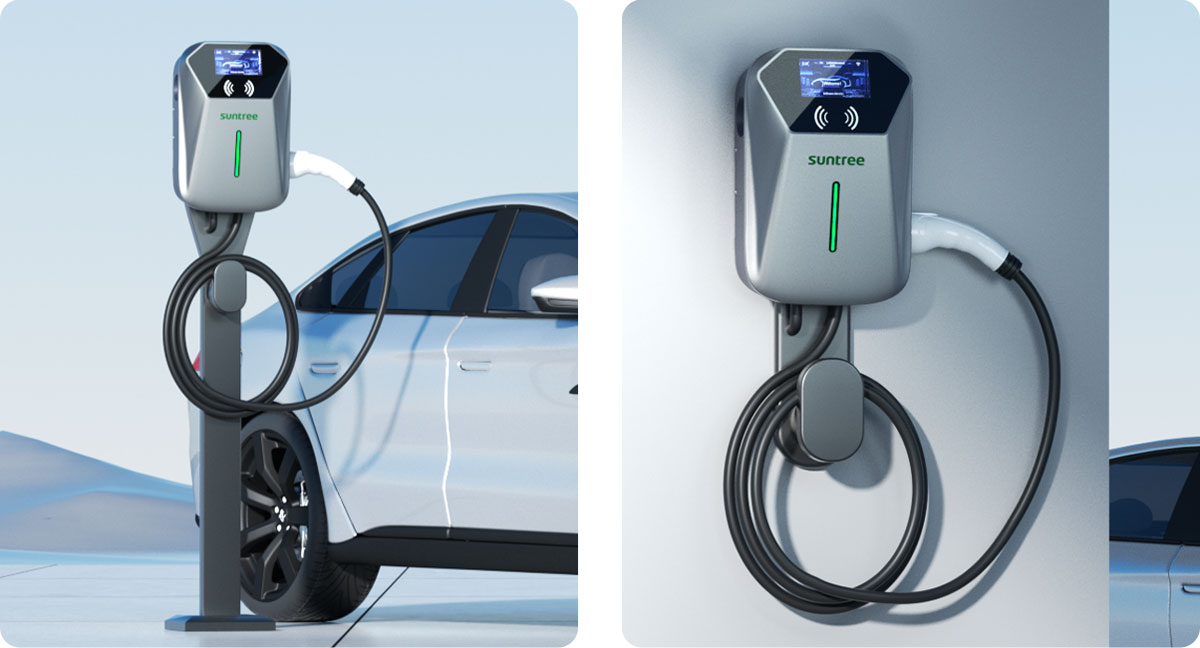

LCD Type EV Charger 7kw/11kw/22kw

SWG5 LCD Type EV Charger 7kw/11kw/22kw

• 1-Phase 7kw/9kw/11kw/22kw  3-phase11/22kw

• Type A+6mA DC (Equal to Type B) / Type A

• Type 1/Type 2/GB/T charging cable

• Plug-in and Charge / RFID card WIFI & Bluetooth (APP) / 4G / Ethernet

• OCPP1.6 (support upgrade to 0CPP2.0) Optional

• CE and UKCA certified

• With swipe card start and remote stop/start.

• Appoint charging function, according to the user's demand for regular charging,
   Will automatically end when fully charged.

• The history function allows you to check historical charging records and cost records.

• Equipped with display screen, real-time display SOC information,estimated full time.

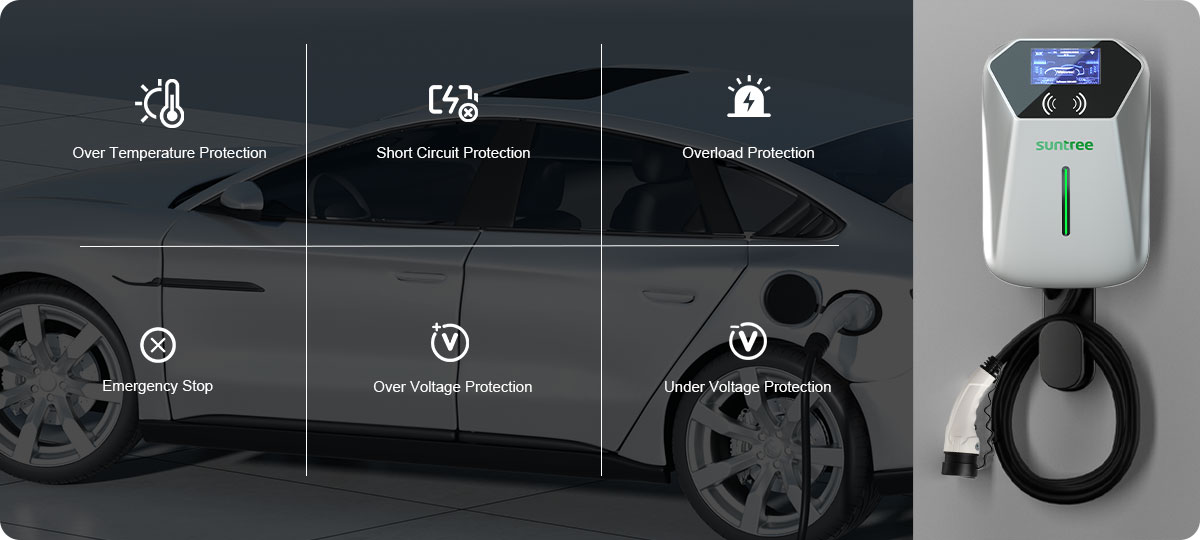

• With overload protection, over-voltage protection, under-voltage protection,
   short-circuit protection, over-temperature protection, emergency stop and other functions.

• Easy to charge, Plug and play.

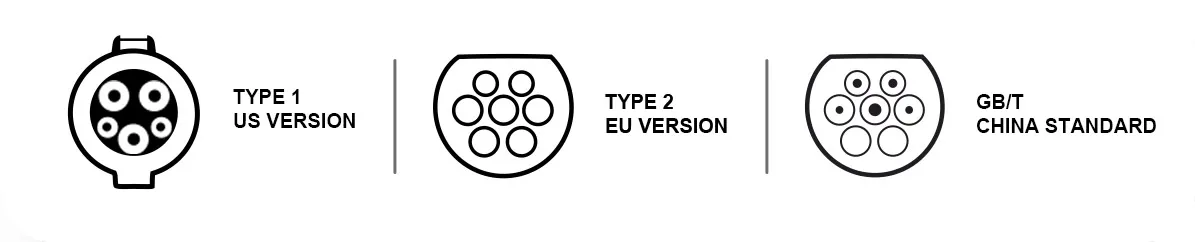

Expanded Compatibility With SAE J1772 (TYPE1) /
IEC62196-2 Type 2 /China standard GB/T Connector

ELECTRICAL TECHNICAL REFERENCE

Item SWG5E-7/32 SWG5E-11/16 SWG5E-22/32
Power Supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated Voltage 220-240V AC 380-415V AC 380-450V AC
Rated Current Max 32A(6-32A adjustable) Max 16A(6-16A adjustable) Max 32A(6-32A adjustable)
Frequency 50/60Hz 50/60Hz 50/60Hz
Output Voltage 220-240V AC 380-415V AC 380-415V AC
Maximum Current 32A 16A 32A
Rated Power 7 kw 11kw 22 kw
Charging Port Type 2 Cable / GBT Type Cable
Cable Length 5/7/10 M Optional
Cover Material PC+Siloxane Alloy
LED indicator RedBlue/Green
LCD Display 4.3" LCD Display
RFID Reader MIFARE ISO/IEC 14443-A
Start Mode Plug-in & Charge/RFID Card /APP
Emergency Stop Support
Wifi Optional
3G/4G/5G 4G Optional
Ethernet Optional
Bluetooth Support
Communication Protocol OCPP1.6J (support upgrade to OCPP2.0 ) Optional
Residual Current Protection Type A+6mA DC (Equal to Type B) /Type A
IP Degree IP55
Impact protection IK08
Multiple Protection OverUnder Current Protection , Short Circut Protection, Ground Proiection . Surge Protection.
Over/Under Vollage Proteclion, OvenUnder Temperaiure Proleciion
Certification Standard ENIEC 61851-1:2019:EN 62752:2016/A1:2020, EN IEC 61851-21-2.2021:
EN IEC 61000-6-1:2019 ,EN IEC 61000-6-3-2021
Warranty 2 Years
Installation Wall-Mounting (Column Optional)
Work Temperature -30℃~50℃
Storage Temperature -40℃~70℃
Work Humidity 5% -95%RH
Work Altitude <2000M
Weight 3.9kgs 4.2kgs 5.2kgs
Optional Color Silver/Dark Grey/Rose Golden
Dynamic Loading Balance(DLB) CT DLB Optional
Standby Power ≤3W ≤6W ≤6W
