Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO)

• Ratedcurrent: 6A,10A,16A,20A,25A,32A,40A,50A,63A

• Rated voltage: 230V

• Curve type: B,C,D

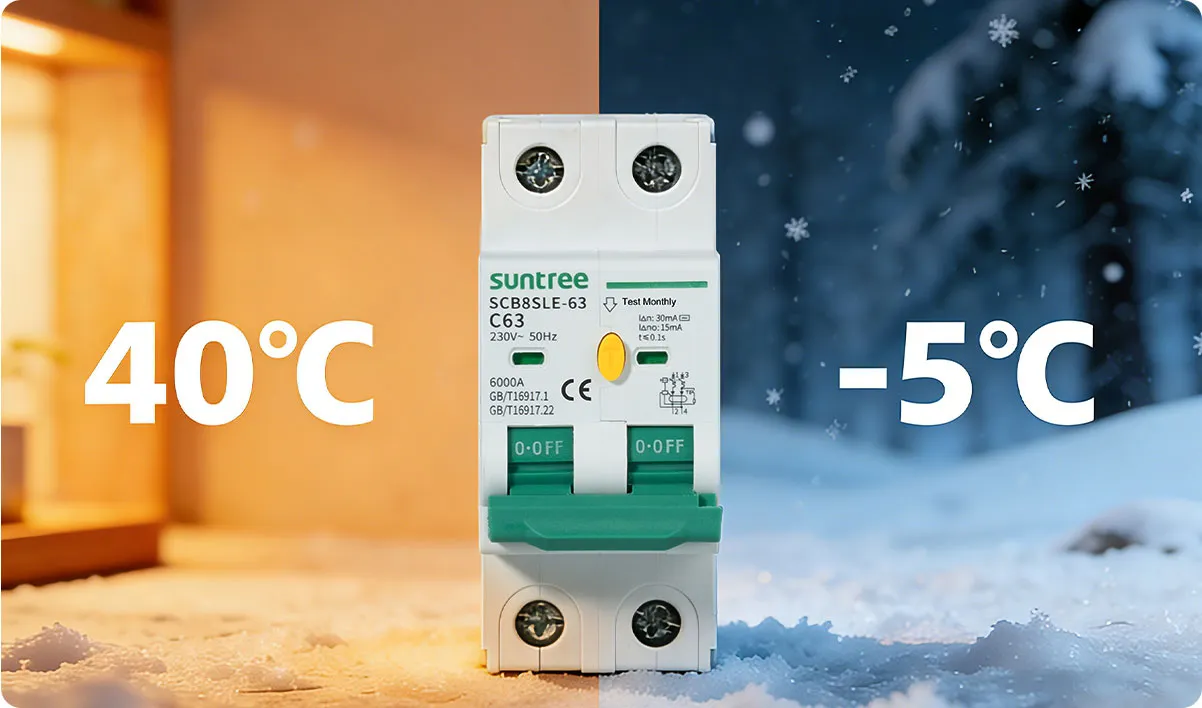

• Optimum operating temperature:-5℃-40℃

• Electro-mechanical endurance:4000 cycles

• Mounting:35mm DinRail

ELECTRICAL TECHNICAL REFERENCE

Number of Poles

With Neutral

Frequency Hz

Rated Voltage Ue V

230

Rated Current ln A

6,10,16,20,25,32,40,50,63

Overcurrent Instantaneous Trip Type

B,C,D

Rated Short-Circuit Breaking Capacity Icn A

6000

Rated Residual Operating Current IΔnm A

30,50,100

Rated Residual Non-Operating Current IΔnm A

15,25,50 Customizable

Breaking time at IΔn (Type S)

＜0.1,＜0.2 Customizable

Rated residual making and breaking capacity IΔm (A)

2000
