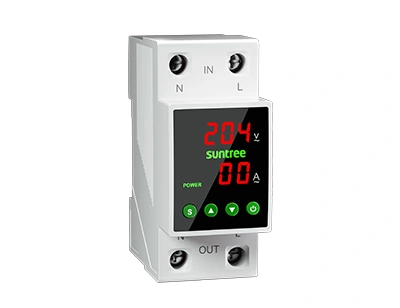

SGQ-63 Single-Phase Overvoltage, Undervoltage, And Overcurrent Protector

Name: SGQ-63 Single-Phase Overvoltage, Undervoltage, And Overcurrent Protector
Brand: Suntree Electric
SKU: 05284
Rating: 4.9 (2692 reviews)

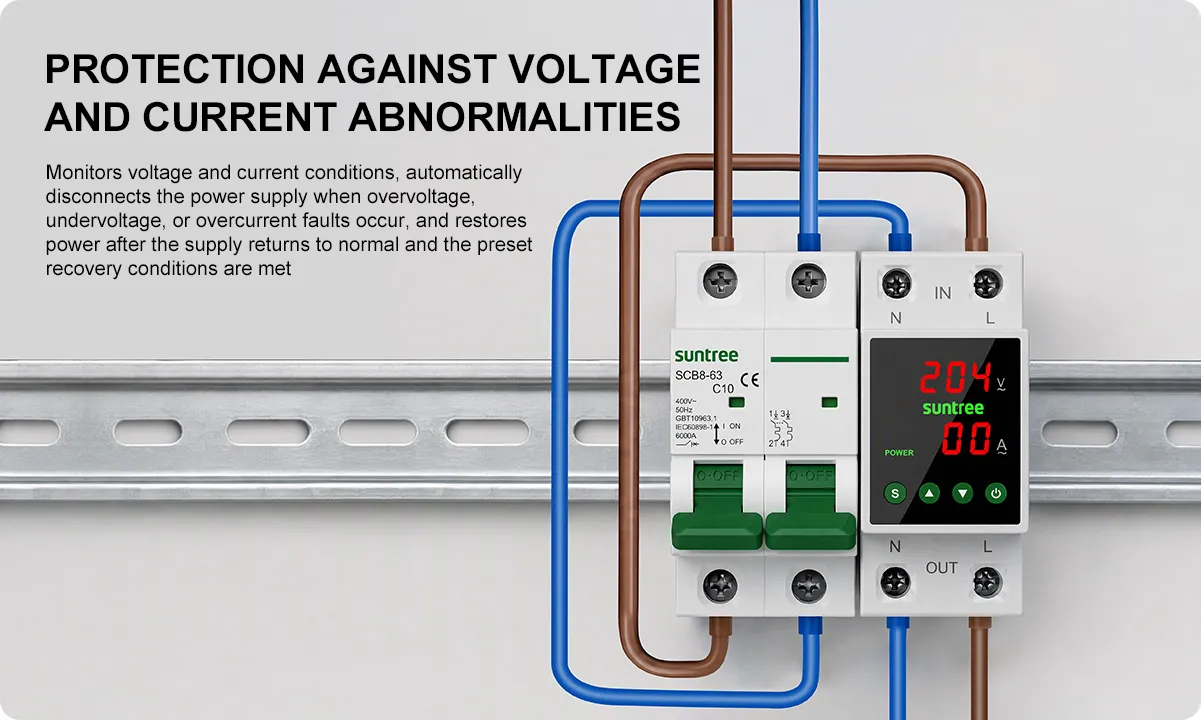

• Triple protection: overvoltage, undervoltage & overcurrent.

• Auto cut-off, auto reset — no manual operation needed.

• Transient-voltage immune: no nuisance tripping.

• Reconnection delay: user-settable after power restoration.

• Max 330 VAC rating; custom voltage on request.

ELECTRICAL TECHNICAL REFERENCE

Product Model	SGQ-63
Number of product poles	1P+N
Rated working voltage	AC220/230V
Rated working current	1A-63A adjustable (default 63A) and 1A-100A adjustable (default 100A)
Rated operating frequency	50Hz/60Hz
Dimensions (L × W × H)	84.5 x 36 x 66MM
Power on delay time	1s - 999s adjustable (default is 5s)
Recovery time	1s - 999s adjustable (default 30s)
Overvoltage action protection value	130V-300V adjustable (default 270V) - OFF (can be turned OFF)
Overvoltage recovery value	125V - 295V adjustable (default 265V)
Undervoltage protection action value	80V-210V adjustable (default 170V) - OFF (can be turned OFF)
Undervoltage recovery value	85V-215V adjustable (default 175V)
Voltage protection action time	0.1s - 10s adjustable (default 0.5s)
Voltage error compensation value	-10%~+10% adjustable (default 0)
Overcurrent protection action value	1-63A/1-100A adjustable (default 63A/100A) - OFF (can be turned OFF)
Current overload action time	0.1s-10s (default 1s)
Continuous overcurrent protection frequency limit	OFF-1 times -20 times adjustable (default OFF)
Current error compensation value	-10%~+10% adjustable (default 0)
Frequency adjustment	-2.5%~+2.5% adjustable (default 0)
Quick power down protection	ON-OFF adjustable (default OFF)
Three display modes	1: Standard; 2: Manual operation; 3: Automatic
Automatic reset function	ON-OFF adjustable (default ON)
Action protection function	ON-OFF adjustable (default ON)
Power Saving Mode	ON-OFF adjustable (default OFF)
lock	000-999 adjustable (default 112), parameters cannot be set when this value is not 11
Electrical and mechanical lifespan	one hundred and five
Installation Method	Standard rail installation
