Double-Ended Gun

STGAE-11 EV charging cable

• 1 phase 3.5KW/7kw

• Type 1 - GB/T   Type 1-Type2

• Cable Length: 5 meters

• Connector: Type2-GB/T、Type2 - Type2 、Type2 - Type1

• Power: 7kw/22kw

• Current: 16A/32A

• Voltage: 220V

• Protection Degree: IP54

• Cable Length: 5 meters

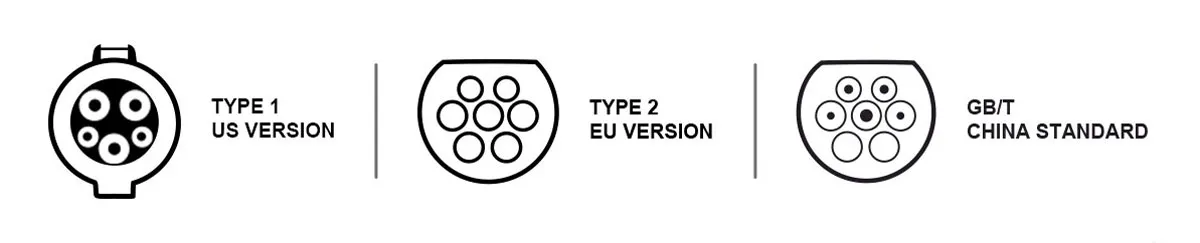

• Conforms to SAE J1772 2017 (Type 1) North American standard,
     IEC 62196-2 (Mennekes, Type 2) EU European standard, GB/T20234 China standard

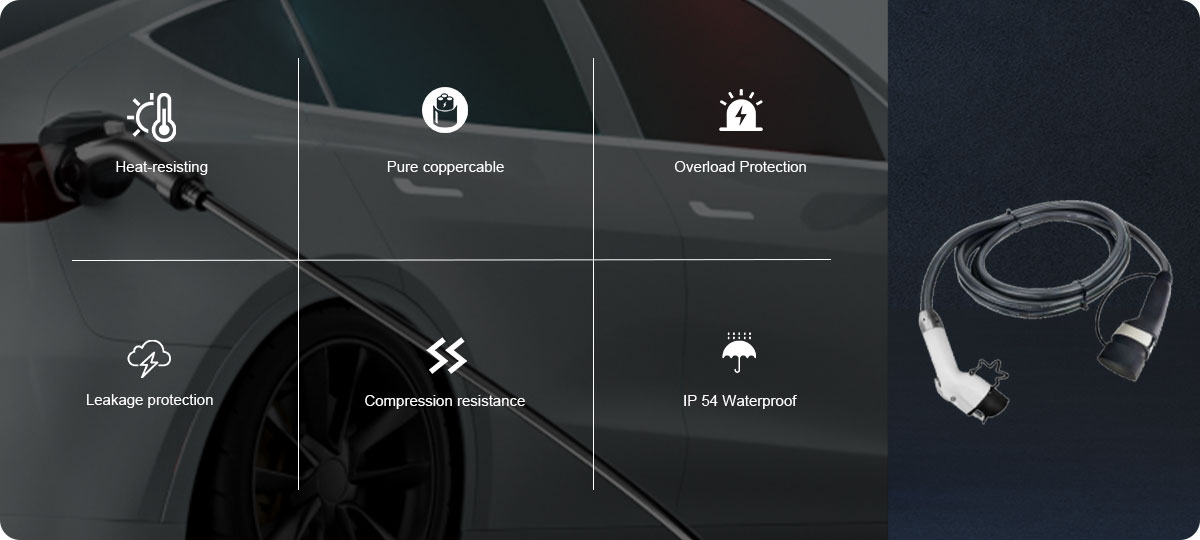

Internal intelligent temperature control battery
protection for long-term use

Internal intelligent temperature control battery
protection for long-term use

ELECTRICAL TECHNICAL REFERENCE

Model STGAE-11/3.5 STGAE-11/7
Electrical Parameters Charging Power 3.5KW 7KW
Rated Current 16A 1P 32A 1P
Connector Type Type 2
Cable Spec 2*2.5+1*0.5 3*6+1*0.75
Rated Voltage 220V
Withstand Voltage 2000V
Power Wiring L1,PE,N,CP
Material and Safety Cable Length 5m (Other Length Optional)
Contact Pin Brass with silwer plated
Plug Shell ABS+PC Alloy
Cable Material TPE/TPU
Cable Type Straight Coiled
Insulation Resistance
Terminal Temperature Rise
Ingress Protection IP54
Mpact Protection IK10
Perating Temperature 30℃-70℃
Certifications CE
Insertion & Extraction Force <100N
Using Life >10000 Times
Plug Fire Proff Level UL94V-0
