• Voltage: The voltage continuously applied between the SPD terminals does not exceed the maximum continuous working voltage Uc
• The altitude should not exceed 2000m
• Ambient air chlorine temperature: normal range -5°C~+40°C, extreme range -40°C~+85°C.
• Relative humidity: should be between 30% and 90% at room temperature
• The SPD adopts 35mm standard guide rail to install the product in the distribution cabinet or box of the distribution box.
• The connecting line should be as short as possible, and the total length should be less than 0.5m
| Technical Parameters | ||||
| Type | SUP1H | |||
| Poles | 1P/2P/1P+N/3P/3P+N/4P | |||
| Rated Operational Voltage Un (V) | 230/480 (Customized) | |||
| Nominal discharge In (8/20µs)kA | 5 | 10 | 20 | 30 |
| Max. Discharge Current Imax (8/20µs)kA | 10 | 20 | 40 | 65 |
| Max. Continuous Working Voltage Uc (V) | 275/320/385/420 | 275/320/385/420 | 275/320/385/420 | 275/320/385/420 |
| Protection Level Up (kV) | <1.4 | <1.6 | <1.8 | <2.0 |

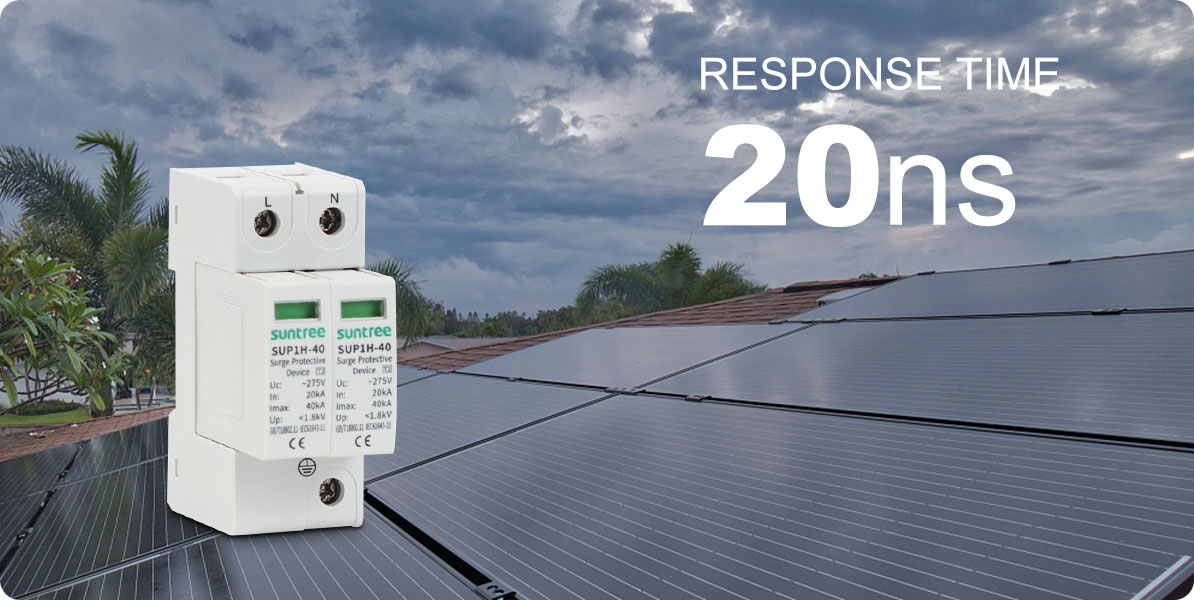

| Response Time (ns) | <20 | |||
| Operating Environment (centigrade) | -40°C~+85°C | |||
| Insulating Shell Material | PBT/PA66 | |||
| Flame Resistance Level | V0 | |||
| Test Standard | GB18802.1GB18802.21IEC61643-1IEC61643-21 UL1449 ed.2 | |||
