• 3-Phase 11KW/22KW
• Type A Type B (optional)
• RFID card / WIFI & Bluetooth (APP) / 4G
• OCPP1.6J
• 0-16A (11kw) / 0-32A (22kw)
• With swipe card start and remote stop start ,with rechargeable IC card.
• Convenient charging, plug and play.

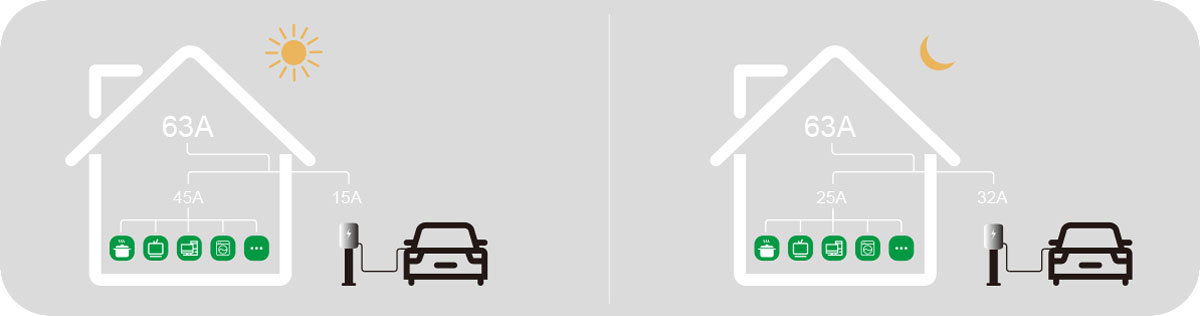

• Appointment charging function, can be charged according to the user's demand, full automatic end.
• Equipped with display screen to display SOC information in real time and estimate full time.
• With overload protection, over voltage protection, under voltage protection,
short circuit protection, over temperature protection, emergency stop and other functions.
• History record function can query historical charging records and expense records.
• Waterproof rating up to IP55, has strong waterproof performance,
can choose to install outdoors, and can be used safely
| DETAILED SPECIFICATIONS | |
| PARAMETER | |
| Working voltage | AC 230V |
| Rated power | 7KW |
| Operating current | 0-32A |
| Frequency | 50Hz |
| IP Degree | IP65 |
| USE ENVIRONMENT | |
| Working temperature | -30°C-+50°C |
| Working humidity | 5%~95%HR |
| The cooling way | Natural air cooling |
| PHYSICAL SIZE | |
| Fuselage size | 355*250*93mm |
| Installation mode | Column mounted (floor mounted) or wall mounted Install optional |
| DISPLAY FUNCTION | |
| Display parameters | Charge voltage, charge current, charge quantity, SOC, fault code. |
