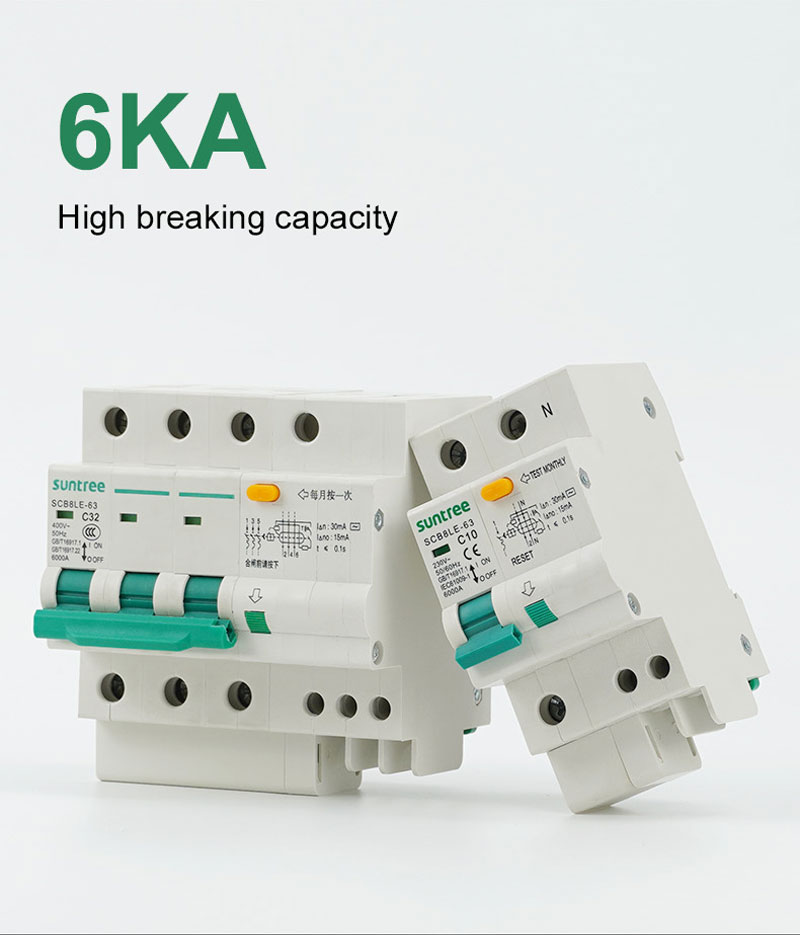

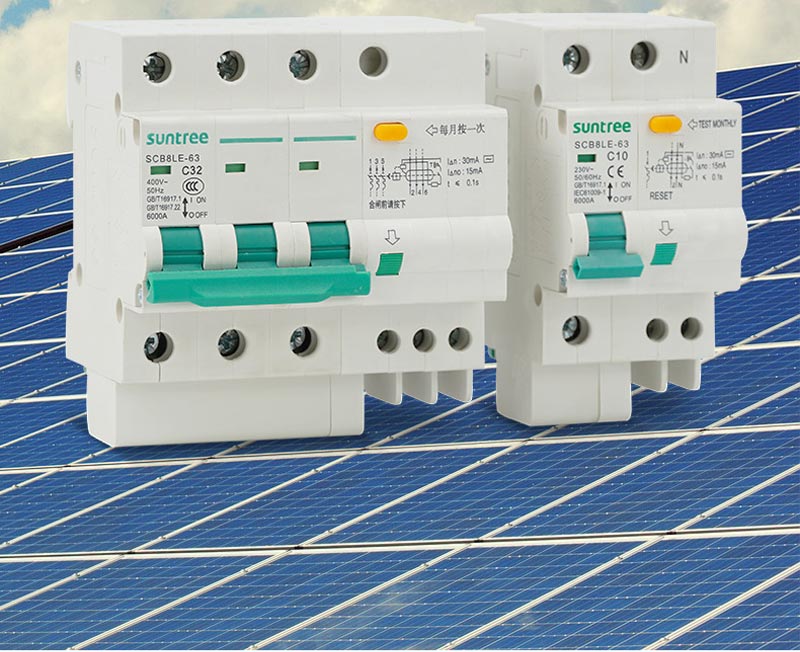

SCB8LE AC Leakage Circuit Breaker

Application



SCB8LE earth leakAge circuit breaker is used for the protection,against electrical leakAge in the circuit of 50/60Hz, rated voltage single-phase 230V, 3 phase 415V, rated current up to 60A When somebody gets an electric shock or the residual current of the circuit exceeds the fixed value,the RCD can cut off the power within the time of 0.1s automatically protecting the equipment from the fault resulted by the residual current.

With this function,the RCD can protect the circuit against overload and short circuit or can be used for the unfrequented switch over of the circuit under normal conditions. It conforms to IEC60898 & IEC61009.1.

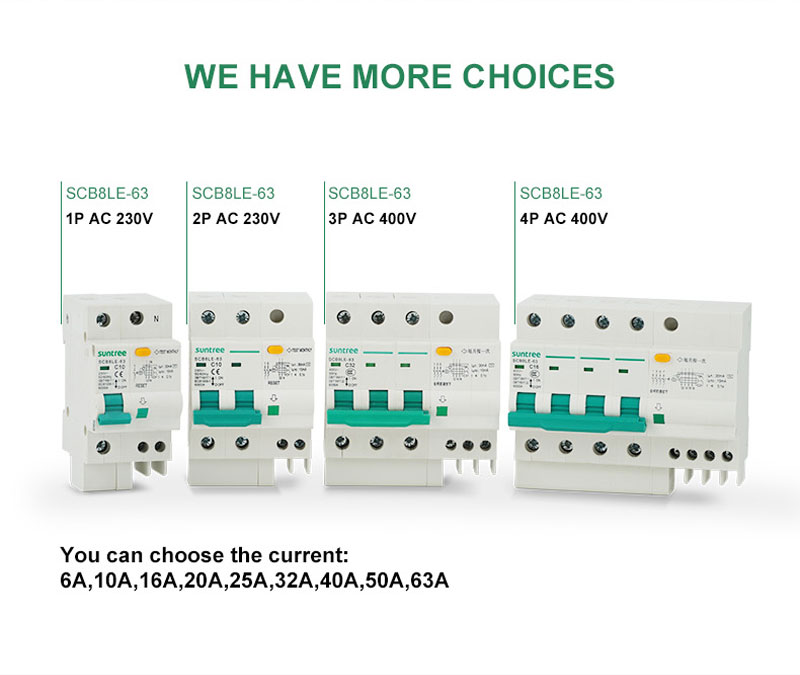

Keyword:1-63A,1P,1P+N,2P,3P,3P+N,4Pole, 30,100,300,500mA, Distribtuion Board Mount

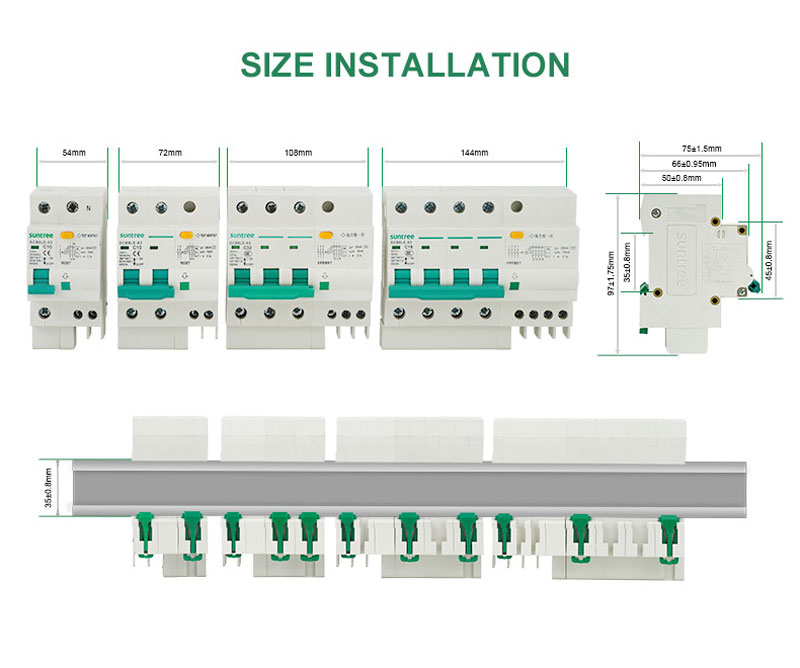

Small shell(32A) Large shell(63A)

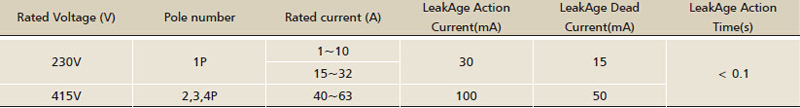

Specifications
