Choosing the right DC circuit breaker
When purchasing a DC MCB , there are three core points: matching the voltage and current of the system, ensuring that protection does not "fail" under extreme operating conditions, and controlling the full...
• Materials: Nylon + EPDM rubber
• Waterproof: IP68
• Temperature：-40°～105°,Short-term 120°
• fire prevention：UL94V-2, Customizable V0
• performance：ROHS20, EU CE, IP68

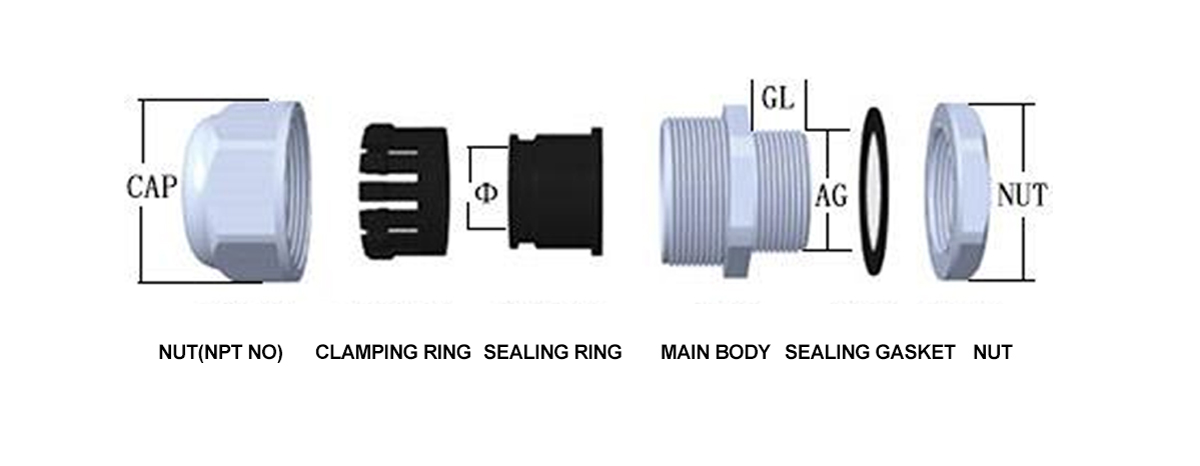

| Product model | Thread size | Cable range | Thread length | Wrench Size |
| PN. | Metric | φ mm | GL mm | nut/cap mm |
| MG12A-H2-03 | M12×1.5 | 1.5~3 | 8.5 | 18/19 |
| MG16AS-H2-03 | M16×1.5 | 1.5~3 | 10 | 22/19 |
| MG16A-H2-04 | M16×1.5 | 2~4 | 15 | 22/22 |
| MG20A-H2-06 | M20×1.5 | 3~6 | 15 | 27/27 |
| MG20A-H2-05 | M20×1.5 | 2~5 | 15 | 27/27 |
| MG20A-H2-04 | M20×1.5 | 2~4 | 15 | 27/27 |
| MG20A-H2-03 | M20×1.5 | 1.5~3 | 15 | 27/27 |
| MG20AS-H2-05 | M20×1.5 | 2~5 | 10 | 27/24 |
| MG22A-H2-06 | M22×1.5 | 3~6 | 10 | 29/27 |
| MG22A-H2-05 | M22×1.5 | 2~5 | 10 | 29/27 |
| MG22A-H2-04 | M22×1.5 | 2~4 | 10 | 29/27 |
| MG22A-H2-03 | M22×1.5 | 1.5~3 | 10 | 29/27 |
| MG25A-H2-08 | M25×1.5 | 5~8 | 15 | 33/33 |
| MG25A-H2-06 | M25×1.5 | 3~6 | 15 | 33/33 |
| MG25A-H2-05 | M25×1.5 | 2~5 | 15 | 33/33 |
| MG32A-H2-10 | M32×1.5 | 6~10 | 15 | 41/41 |
| MG40A-H2-13 | M40×1.5 | 9~13 | 20 | 50/50 |
| MG50A-H2-15 | M50×1.5 | 11~15 | 22 | 62/62 |
| MG63A-H2-17 | M63×1.5 | 14~17 | 25 | 75/78 |
| PG7A-H2-03 | PG7 | 1.5~3 | 8.5 | 17/19 |
| PG9A-H2-03 | PG9 | 1.5~3 | 8.5 | 22/19 |
| PG11A-H2-04 | PG11 | 2~4 | 10 | 22/22 |
| PG13.5A-H2-05 | PG13.5 | 2~5 | 10 | 27/24 |
| PG16A-H2-06 | PG16 | 3~6 | 11 | 30/27 |
| PG16AH2-05 | PG16 | 2~5 | 11 | 30/27 |
| PG16A-H2-04 | PG16 | 2~4 | 11 | 30/27 |
| PG16A-H2-03 | PG16 | 1.5~3 | 11 | 30/27 |
| PG21A-H2-08 | PG21 | 5~8 | 12 | 36/33 |
| PG21A-H2-06 | PG21 | 3~6 | 12 | 36/33 |
| PG21A-H2-05 | PG21 | 2~5 | 12 | 36/33 |
| PG29A-H2-10 | PG29 | 6~10 | 12 | 46/41 |
| PG36A-H2-13 | PG36 | 9~13 | 15 | 57/50 |
| PG42A-H2-15 | PG42 | 11~15 | 15.5 | 64/62 |
| PG48A-H2-17 | PG48 | 14~17 | 16 | 75/78 |
| G1/4A-H2-03 | G1/4 | 1.5~3 | 8.5 | 19/19 |
| G3/8A-H2-04 | G3/8 | 2~4 | 15 | 22/22 |
| G1/2A-H2-06 | G1/2 | 3~6 | 15 | 30/27 |
| G1/2A-H2-05 | G1/2 | 2~5 | 10 | 27/24 |
| G3/4A-H2-08 | G3/4 | 5~8 | 15 | 33/33 |
| G3/4A-H2-06 | G3/4 | 3~6 | 15 | 33/33 |
| G3/4A-H2-05 | G3/4 | 2~5 | 15 | 33/33 |
| G1-1/4A-H2-13 | G1-1/4 | 9~13 | 16 | 51/50 |
| G1-1/2A-H2-15 | G1-1/2 | 11~15 | 22 | 62/62 |
| G2A-H2-17 | G2 | 14~17 | 25 | 75/75 |
