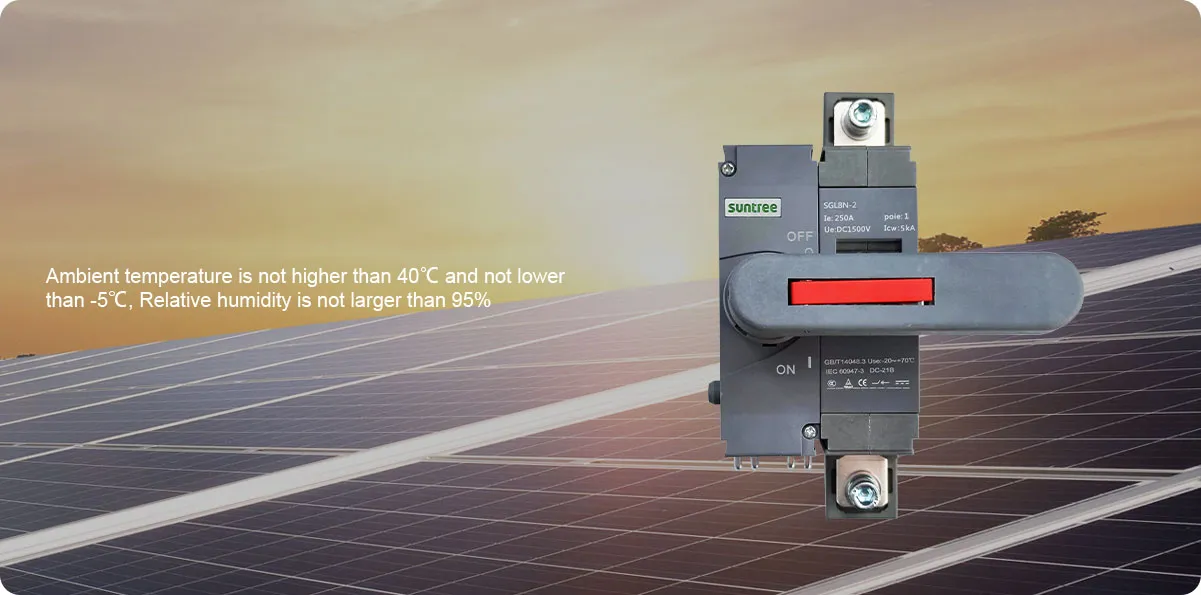

• The elasticaccumulating accelerating mechanism for instant release realize the rapid making and breaking (13.8m/s), having no relationship with the speed of the operating handle,and increasing greatly the capability ofextinguishing electric arc.
• The sheu made of unsaturated polyester resin reinforced by glass fiber possesses excellent performance of flame resistant, dialectic performance, safe operation, resist carbonic performance and resist impact performance.
• Parallel double gap contact possesses self cleaning functions.
• All the contact materials are copper alloy plated with silver, and possess two separation contact surfaces.
• Large clearance of insulation.
• Be on "0", the products can lock the handle with three locks at the same time and thus can avoid error operation.
| rated voltage V | DC 750V |
| Number of pole | 1P |
| utilization category | see table below |
| Frame Current | 320A |
| Rated Insulation voltageV | 1600V |
| rated operational voltage A | 32A-500A |
| Rated impulse withstand voltage kA | 12 |
| short-time withstand current kA | 8/1s |
| short-circuit making capacity kA | 15 |
| technical life | 10000 |
| Electrical Lifetime | 1000 |
| Maximum conductor section mm² | 150(2pcs) |
| tightening torque Nm | 10 |
| Installation method | Screw installation, cabinet door installation |
| Meet xxxx | IEC 60947-3 GB/T14048.3 |
| International Protection | IP20 |
| Service temperature | -40~+70℃ |
| storage temperature | -50~+70℃ |
| altitude | ≤2000m |
| pollution-level | 3 |
| Certification | CCC 、TUV、CB、CE、ROHS |
