DC Isolator DC1000V / DC1200V

DC Isolator DC1000V / DC1200V

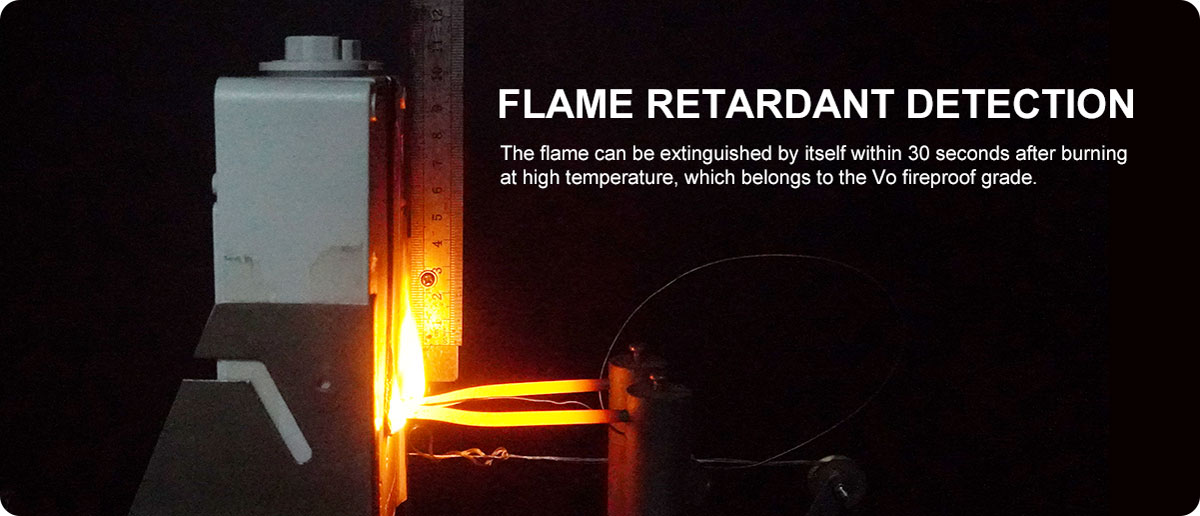

• UV resistance and VO flame retardant material

• Contact Silver Plating, silver layer thickness up to the industry's highest standards

• Arcing Time in 3 ms

• No Polarity

• Lockable at OFF position

• IEC/EN60947.3 standard and AS 60947.3

• Provide 5-year warranty product guarantee









ELECTRICAL TECHNICAL REFERENCE

MAIN PARAMETERS   SISO-60
Rated Insulation Voltage Ui V 1500
Rated thermal current Ith A 32
Rated impulse withstand voltage Uimp V 8000
Rated short-circuit making capacity lew A 1kA,1S
MAXIMUM CABLE CROSS SECTIONS (INCL. JUMPER)
Solid mm² 416
Flexible mm² 410
Flexible(+multicore cable end) mm² 410
TORQUE
Tightening torque terminal screws M4 Nm 1.2-1.8
Tightening torque shell mounting screws ST4.2(304 stainless steel) Nm 1.5-2.0
Tightening torque knob screws M3 Nm 0.5-0.7
Switching on or off Torque Nm 0.9-1.3
The wiring Torque on Base Nm 1.1-1.4
GENERAL PARAMETERS
Knob positions   9 o'clock, OFF 12 oclock,ON
Electrical Life Actua   3000 Cycles
Standard   300 Cycles
Mechanical Life Actua   10000 Cycles
Standard   10000 Cycles
Number of DC poles   2 or 4
Rated shortime withstand curent(1s)(lcw) -40 to +85
Distance of contacts (per pole) -40 to +85
Pollution degree   3
Overoltage category

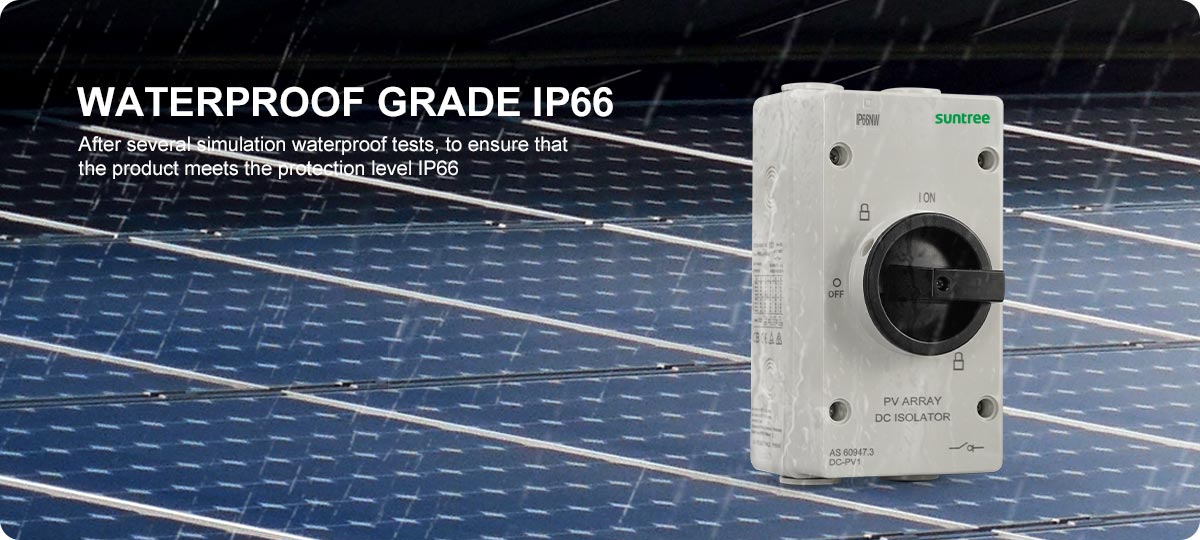

IP rating of shafte and mounting nut   IP65
