1000VDC/1500VDC(315-630A) Solar PV Fuse Link

1000VDC/1500VDC (315-630A) Solar PV Fuse Link

• Dual Voltage Rating: Suitable for both 1000V and 1500VDC systems.

• High-Current Protection: 315A-630A rated current with30kA/50kA breaking capacity.

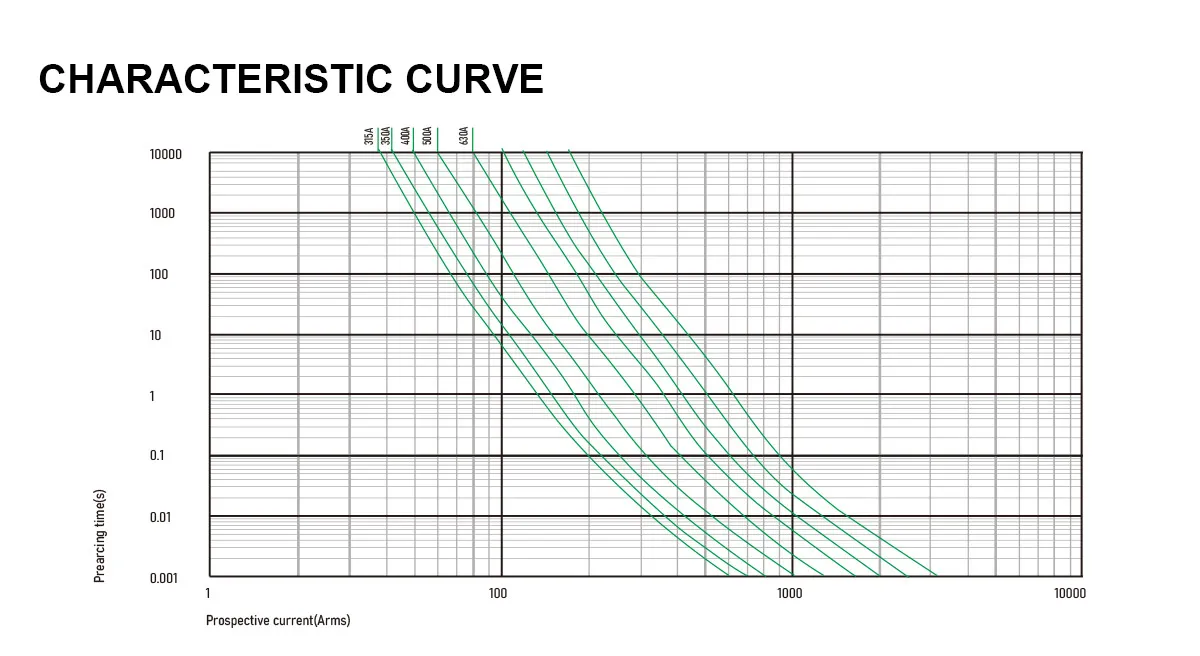

• Ultra-Fast Operation: 1-3ms time constant for superior equipment protection.

• International Compliance: Meets IEC 60269-6 and GB/T13539.6 standards.

• Premium Materials: Pure silver melt and silver-plated cover for low resistance.

• High Efficiency: Low temperature rise and reduced power loss.

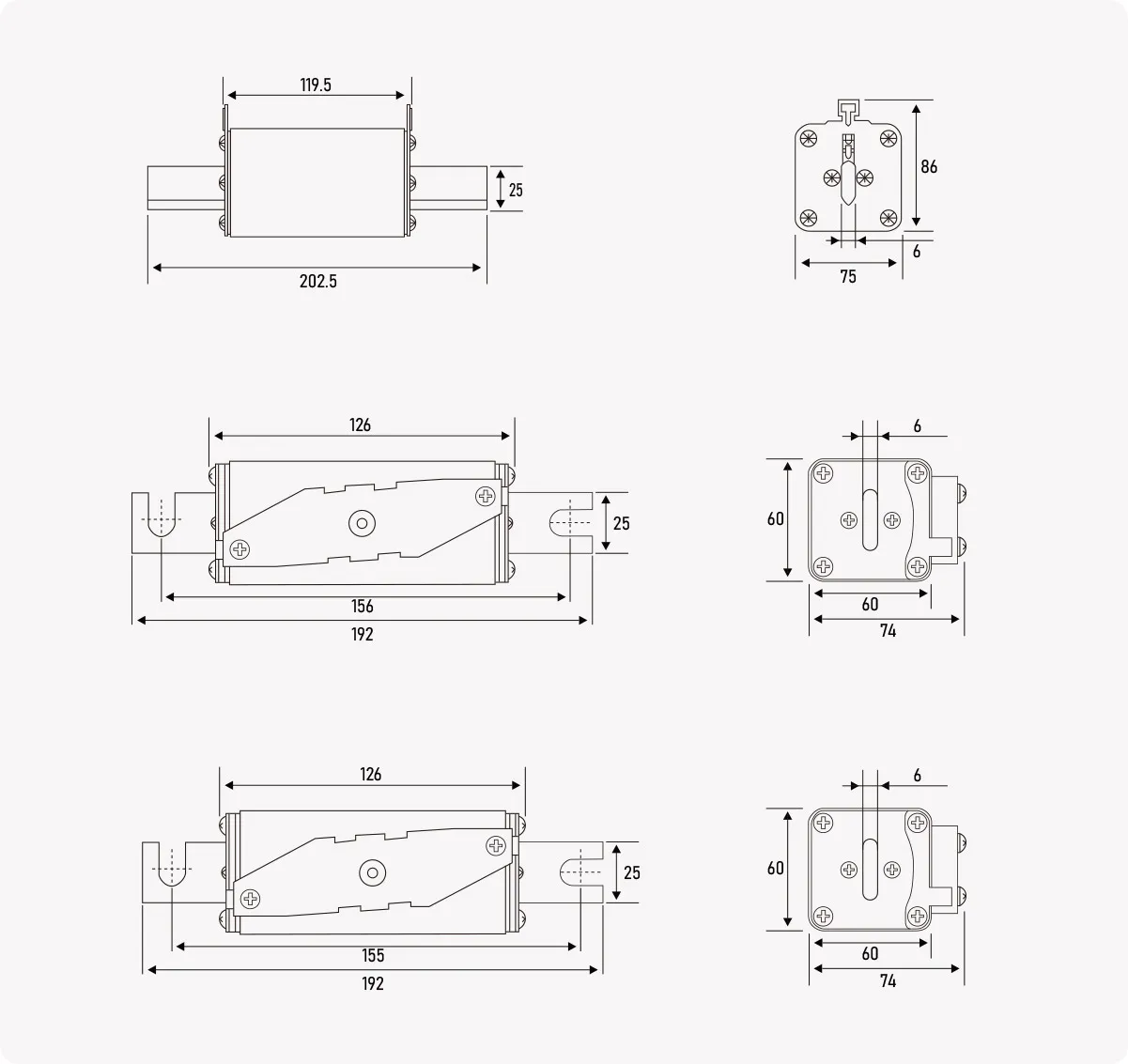

• Compact Design: Standardized dimensions for easy integration and space saving.

ELECTRICAL TECHNICAL REFERENCE

MODEL RATED CURRENT POWER LOSS 1.0IN (W) BREAKING CAPACITY NET WEIGHT
SNHPV 315A 44.4 1000VDC/1500VDC: 20kA 1.35kg
350A 52.3
400A 58.2
500A 52.5
630A 91.9
