Can a Rapid Shutdown Transmitter Be Used with Multiple Inverters?
In large photovoltaic systems with multiple inverters, a common question arises: can a single rapid shutdown transmitter control all the connected equipment? The short answer is yes
• Dual Voltage Rating: Suitable for both 1000V and 1500VDC systems.
• High-Current Protection: 160A rated current with 20kA breaking capacity.

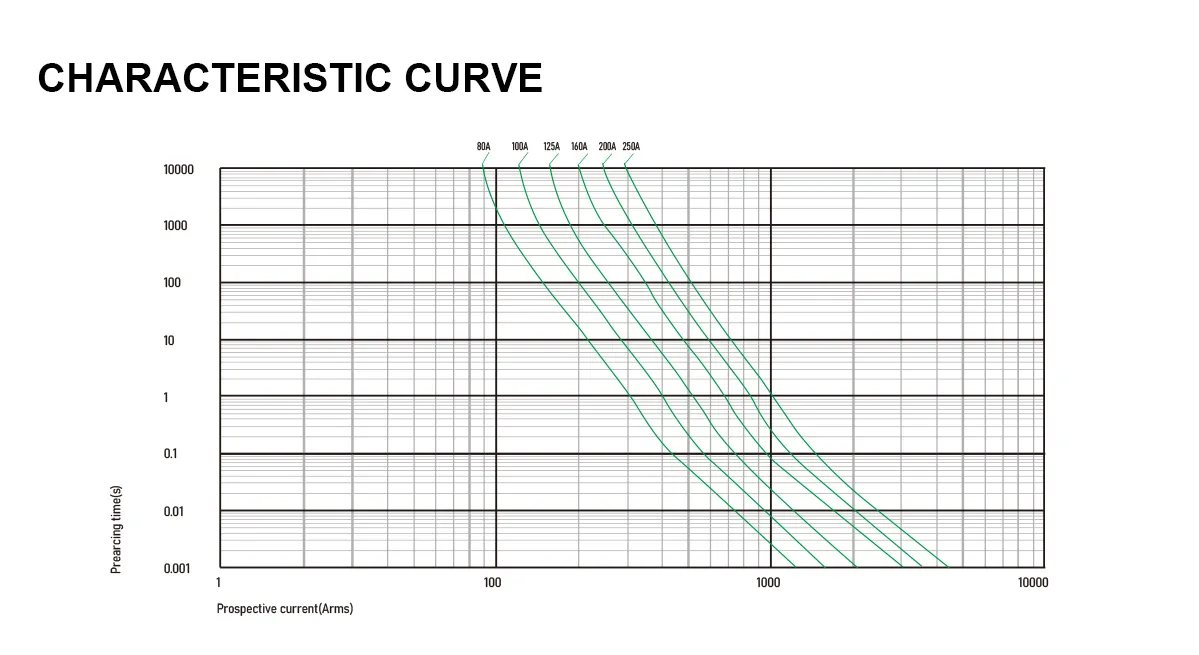

• Ultra-Fast Operation: 1-3ms time constant for superior equipment protection.
• International Compliance: Meets IEC 60269-6 and EN 60269-6 standards.
• Premium Materials: Pure silver melt and silver-plated cover for low resistance.
• High Efficiency: Low temperature rise and reduced power loss.

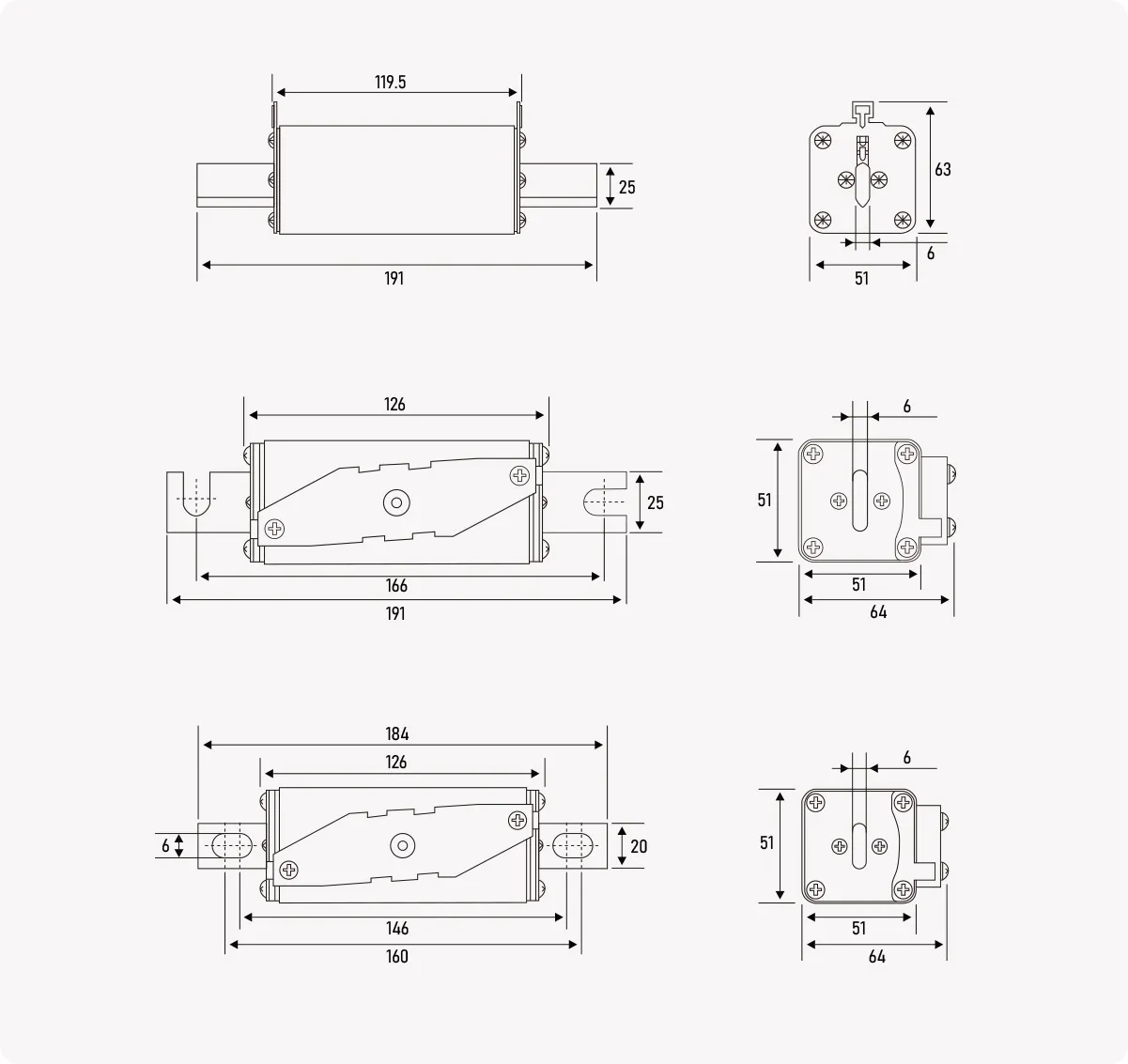

• Compact Design: Standardized dimensions for easy integration and space saving.
| MODEL | RATED CURRENT | POWER LOSS 1.0IN (W) | BREAKING CAPACITY | NET WEIGHT |
| SNHPV | 80A | 16.8 | 1000VDC TUV&CE: 25kA |
0.96kg |
| 100A | 18.9 | |||
| 125A | 21 | |||
| 160A | 29.5 | |||
| 200A | 34.6 | |||
| 250A | 37.5 | |||
| 80A | 16.0 | 0.925kg | ||
| 100A | 18.9 | |||
| 125A | 21 | |||
| 160A | 29.5 | |||
| 200A | 34.6 | |||
| 250A | 37.5 | |||
| SNHXLPV | 80-250A | 37.5 | 1500Vdc |
