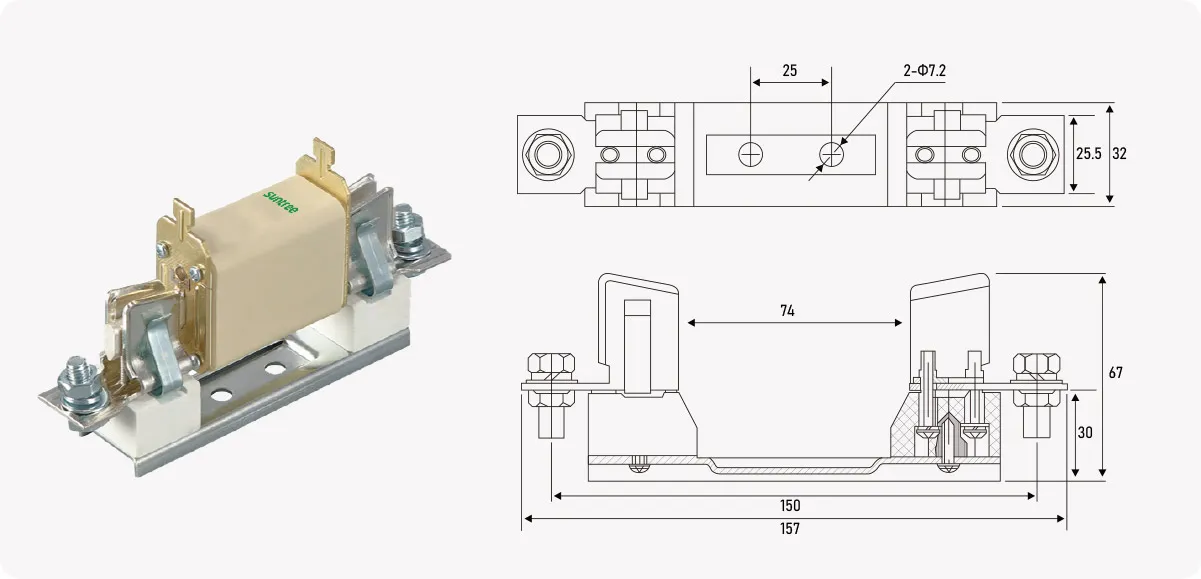

1000vdc/1500vdc Fuse holder/ Base

1000VDC/1500VDC Fuse Holder/ Base

• High-Performance Protection: 20kA breaking capacity with ultra-fast 1-3ms operation for superior safety.

• Dual Standard Compliance: Certified to both IEC 60269-6 and EN 60269-6 for global PV applications.

• Enhanced Durability: Withstands ≥24h salt spray test, ensuring reliability in corrosive and acidic environments.

• Optimized Terminals: Silver-plated copper terminals ensure low contact resistance, minimal temperature rise, and high conductivity.

• Robust Ratings: Designed for high-voltage systems with 1500VDC and 160A capacity.

ELECTRICAL TECHNICAL REFERENCE

MODEL RATED CURRENT RATED VOLTAGE FITTED WITH FUSE-LINK MODEL SIZE NET WEIGHT
SRD-30 160A 1000Vdc/1500Vdc SNHPV 0.322kg
