Switchgears

SUNTREE has workd closely with solar system manufacturers and through coordinated neserch and development,has produced revolutionary new dc circurit breaker,dc isolator swithc,dc fuse which,combined with its range of surge protective devices,offer complete protection for PV systems

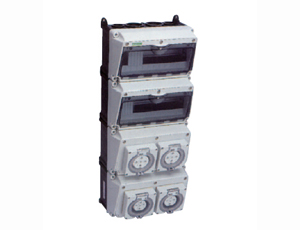

portable power distribution board STW001 - STW003

Model No:STW001
2x32A IP66 Socket and MCB (RCBO)
2x20A IP66 Socket and MCB (RCBO)
Model No:STW002
2x32A IP66 Socket and MCB (RCBO)
2x20A IP66 Socket and MCB (RCBO)
Model No:STW003
2x15A IP66 Socket and MCB (RCBO)

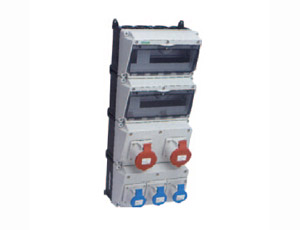

portable power distribution board STW004 - STW006

Model No:STW004
2x32A IP67 IEC Socket and MCB (RCBO)
2x16A IP67 IEC Socket and MCB (RCBO)
Model No:STW005
2x32A IP44 IEC Socket and MCB (RCBO)
3x16A IP44 IEC Socket and MCB (RCBO)
Model No:STW006
1x16A IP44 IEC Socket and MCB (RCBO)
1x32A IP44 IEC Socket and MCB (RCBO)

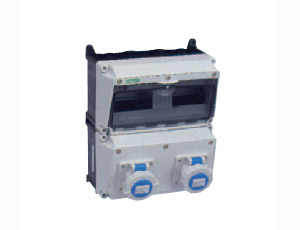

portable power distribution board STW008 - STW010

Model No:STW008
2x16A IP67 IEC Socket and MCB (RCBO)
Model No:STW009
2x16A IP67 IEC Socket and MCB (RCBO)
2x32A IP67 IEC Socket and MCB (RCBO)
Model No:STW010
3x10A Wall switch and MCB (RCBO)
1x1.8M leads 1x10A IP66 plug

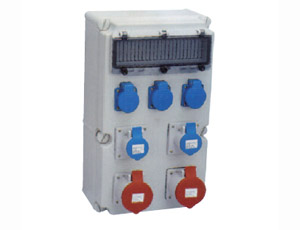

portable power distribution board STW011 - STW013

Model No:STW011
2x32A IP44 IEC Socket and MCB (RCBO)
5x16A IP44 IEC Socket and MCB (RCBO)
Model No:STW012
2x32A IP67 IEC Socket and MCB (RCBO)
3x16A IP67 IEC Socket
Model No:STW013
6x16A IP44 IEC Socket and MCB (RCBO)

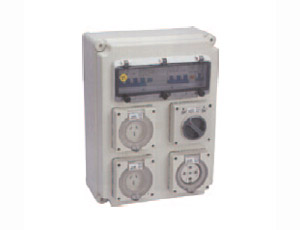

Portable Power Distribution Board STG001-STG003

Model No:STG001
6x3P 15A waterproof socket
2x3P 16A CEE waterproof socket
Model No:STG002
2x3P 15A waterproof socket
1x5P 32A waterproof socket and switch
1x1.8M lead and 5P 32A waterproof plug
Model No:STG003
2x5P 32A waterproof socket and switch
1x5P 20A waterproof socket and switch
2x3P 15A waterproof socket

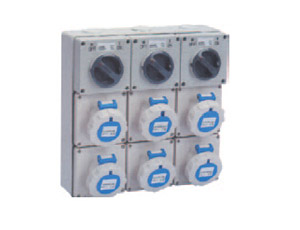

Portable Power Distribution Board STG004-STG007

Model No:STG004
3x56SW ,3xUKBI/32 ,3xCEE 5 Pins 32A
3xCEE 4 Pins 32A , Frenqency:50Hz/60Hz , Volts:220-380/240-415V
Model No:STG005
3x56CB1-4N 3xUKBI/32 3xCEE 5 Pins 32A
Frenqency:50Hz/60Hz Volts:220-380/240-415V

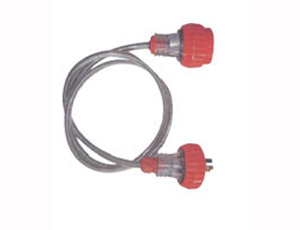

Power Connecting Equipment/Extension Leads STE001

Metal outer sheath is connected to earth for added safety.
20 metre 2.5 mm cable.
10amp or 15amp clear moulded plug and socket.
insulated active and neutral plug., or fixed with IP56 plugs and connectors
LED Power on indicator.
Cable is highly fixed for easy use and longer life expectancy than a standard cable.
Approved to Australian/NZ standards.

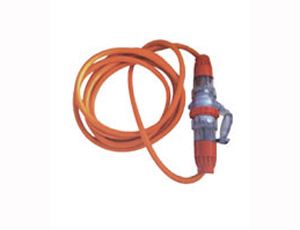

Power Connecting Equipment/Extension Leads STE002

Specification:50 amp or 32 amp plug and socket(any Amps are acceptable)on a 10mm 4core and earth 15m
extension lead(any cable is accepable),With full earth screen for added safety protection.
Note:all our extension leads can be 100% custom-made

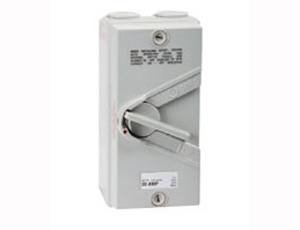

STF weatherproof isolation switches

The STF series of weatherproof isolation switches is a robust range
of switches suitable for virtually any extemal application included in
the range are single,double, triple and four poles switch from 20A to
80A,the base mounted mechanism provides for easier termination and
more wiring room,switch dimensions are 165mmX 82mm,with an
overall height of 85mm.

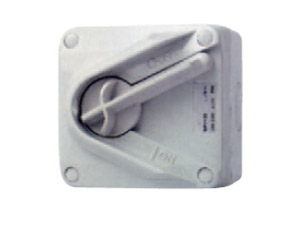

STWS weatherproof isolation switches

STWS is unique design enclosed isolator for in harsh condition where space is limited.
Stylish look brings you a new concept of isolator switch

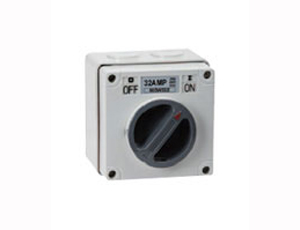

56sw surface swithes

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Suntree /OEM
Model Number: 56SW
Max. Current: 63A
Max. Voltage: 500V
Mechanical Life: 80000
Model No.: 56SW
Rated Current:: 10A to 63A

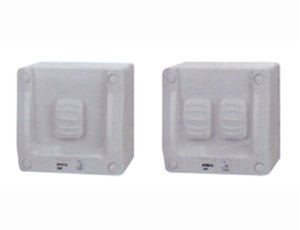

STSS Waterproof Industrial Switchgear

STSS series is a impact resistant surface mounting switch,
designed for general purpose application
like outdoor lighting control, illumination sign etc.

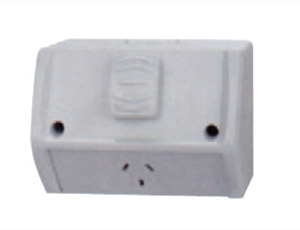

POWER POINT STSP

STSP series is a impact resistant surface mounting switch,
designed forgeneral purpose application
like outdoor lighting control, illumination sign etc.

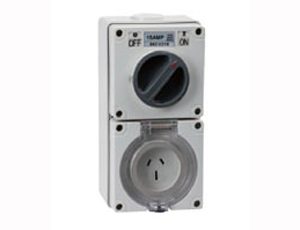

Phase Combo Switch & Socket

Three phase 3 round pin combo swithc & socket
Description: Three phase 3 round pin 250&500V 50Hz switched socket.
IP66 rated Available in standard grey or orange 10.20.32A
Voltage:250/500V
Code:56CV310/56CV 320/56CV315/56CV332

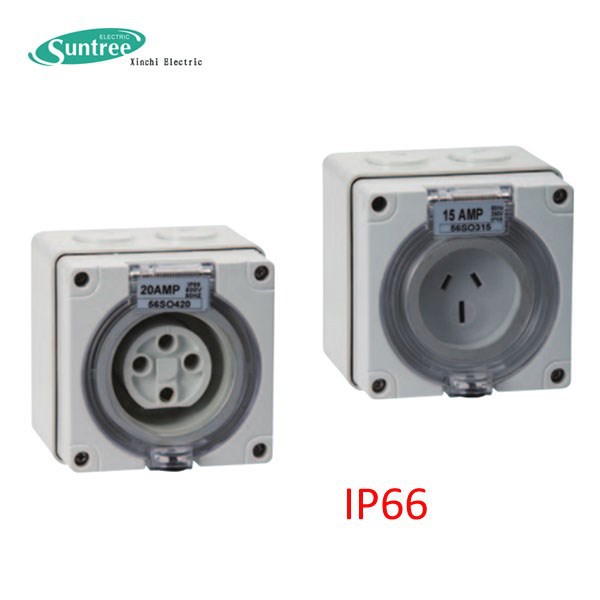

ROUND PIN SOCKET

Single and three phase 3 flat pin socket.IP66 rated.
available in standard grey or orange 10A.13A.15A.20A.32A.40A.50A
Voltage:250V/500V

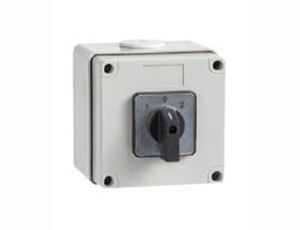

REVERSING SWITCHES

Desugned to give full motor control,a unit is rated IP66,
changeover and reversing switches are housed withing single
modules as part of the overall modular conoept of the range.
Earth and neytral connectores accommodating 3x6mm cables
are provided with all models.
reversing switches type switch mechanisms are used
and therefore special configurations are available.

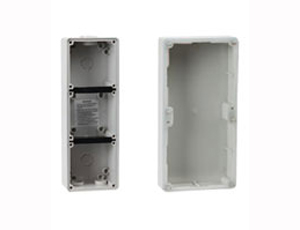

MOUNTING ENCLOSOURES

■ One & two module enclosure cover
Description:
one & two module enclosure cover. IP66 rated.
Available in stand are gray and not change color.
Code:56E1/56E2/56E3/56E4/56E6/56E8/56E9

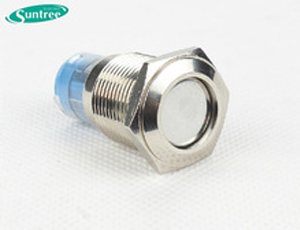

19mm Stainless steel pushbutton

Place of Origin: Zhejiang, China (Mainland)
Brand Name: SUNTREE/OEM
Model Number: S19, S19
Protection Level: IP67
Max. Current: 10A
Max. Voltage: 500V, 250V
Install hole: 12mm 16mm 19mm 22mm 25mm 30mm
Color: white yellow blue green red orange

16mm 1NO or 1NC Stainless steel pushbutton

Place of Origin: Zhejiang, China
Protection Level: IP65/IK09
Install hole: 16mm
Contact Resistance: ≤50mΩ
Contact Material: Silver Alloy
Mechanical Life: 2,000,000cycles

19mm Stainless steel pushbutton

Momentary: Means that when you push switch and then
move your finger, the actuator will back to the original position.
