Application

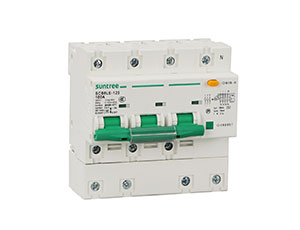

SC45L-125H is suitable for the circuit of 50Hz, rated voltage 230V/415V, and rated current up to 100A, It has the earth leakAge,overload ,short circuit protect function. And it can also add over voltage protect function. It is mainly used in building illuminating and electrical distribution system.

Keyword: 6~100A, 1P,1P+N,2P,3P,3P+N,4Pole, Distribtuion Board Mount, Assembled RCD

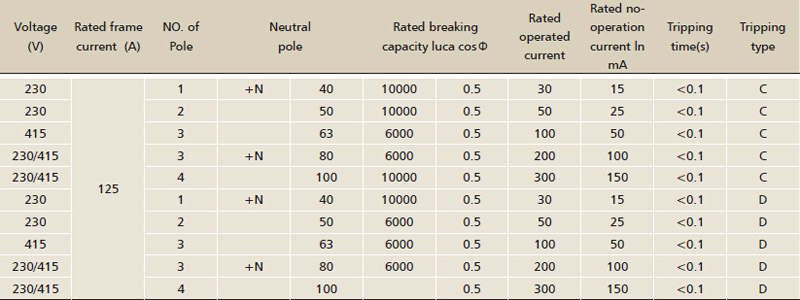

Specifications

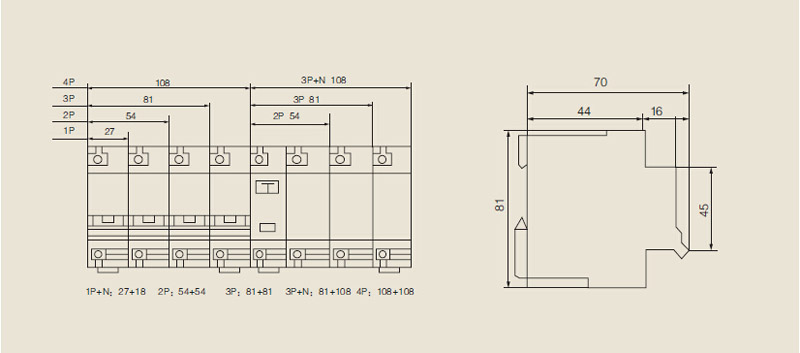

Outline and installation dimensions
