Single-phase digital display meter

Summarize

SP□208 series programmable LED meter, is in power systems, industrial and mining enterprises, public facilities, intelligent building power monitoring requirements and design.It can measure voltage, current, active power, reactive power, power factor, frequency and other electrical Parameters,through the panel key switch set magnification; with RS-485 communication interface,using Modbus protocol; can also be power signal into standard DC analog signal output; or with a remote input output function, remote control.

The meter has a very high ratio of performance to price, can directly replace the conventional power transmitter and general measuring meter. As an advanced intelligent, digital front-end acquisition component, the series of programmable LCD meter have been widely used in various control systems, SCADA system and energy management system.

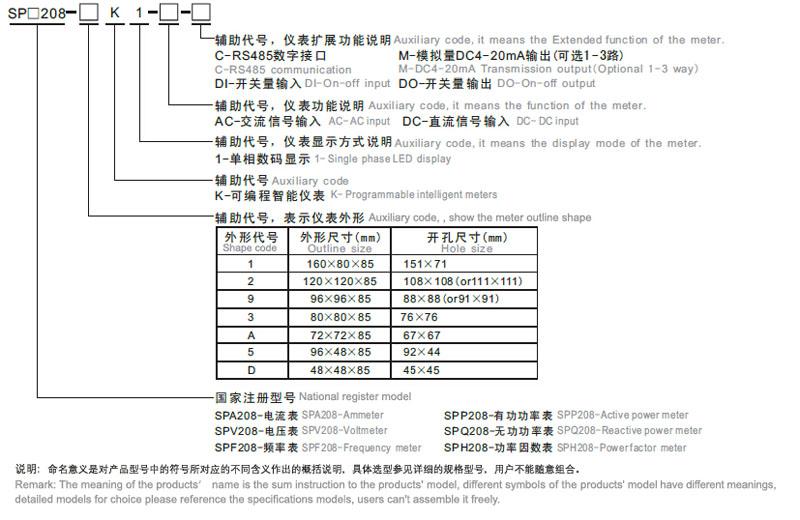

Meaning of zhe products' name

Product features

Directly from the current, voltage transformer access signal, sampling the true effective value measurement;
Can be arbitrarily set PT / CT ratio;
Convenient installation, wiring is simple, small engineering quantity;
I / O switch, relay alarm output, DC4-20mA analog function module design;
Can communication access to SCADA, PLC system; and a variety of communications industry software ( Intouch, Fix, Citec, Kingview etc.);
LED digital tube display, high visibility;

Outline size table

Products modele table
